ALLEN & HEATH SQ-5 User Manual

 101
Reference Guide V1.5.0
Assigning/unassigning channels –
• If using 2 AMM’s, use the AMM selection buttons to choose which AMM to
display.
• Touch and drag left or right to show all input channels and AMM slots.
• Touch and drag input channels from the top to AMM slots at the bottom to assign
a channel.
 Input channels can be freely assigned to any AMM slot, they do not need to be assigned
sequentially.
 Dropping channels into a slot that already has a channel assigned, automatically
unassigns the previously assigned channel.
• Touch and drag channels from assigned slots back to the top to unassign.
• Touch the ‘Clear’ button to clear all channels from the selected AMM.

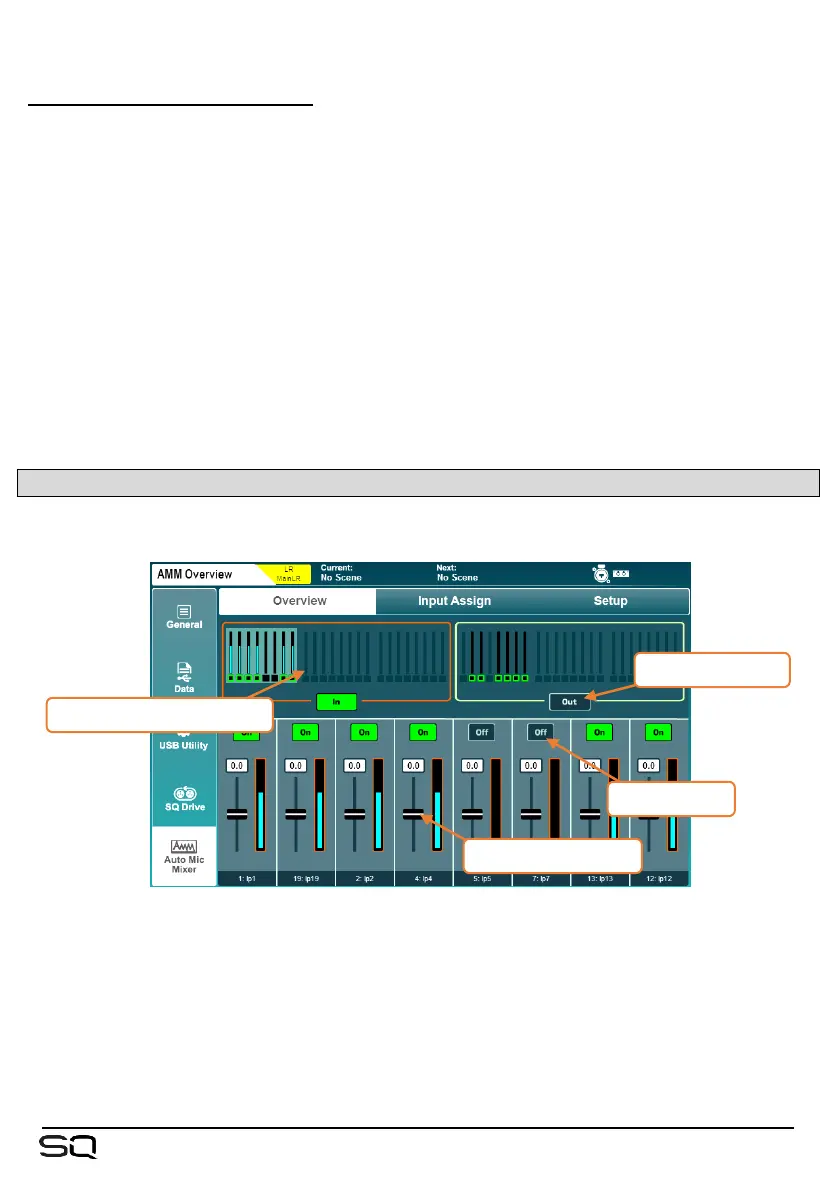

15.2 AMM Overview
Press the ‘Utility’ screen key, then touch the ‘AMM’ tab followed by the ‘Overview’
tab.
The top part of the screen displays an overview of all AMM slots, with the metering
showing gain being applied to channels and indication of whether channels have AMM
switched on.
• Touch an AMM ‘In/Out’ button to switch all AMM channels in or out.
 If a channel has AMM switched on and is assigned to an AMM which has all channels
switched in, this is indicated in the channel overview shown in the ‘Processing’ screen.
entire AMM in/out
levels and on/off indication
channel on/off
channel priority level

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
