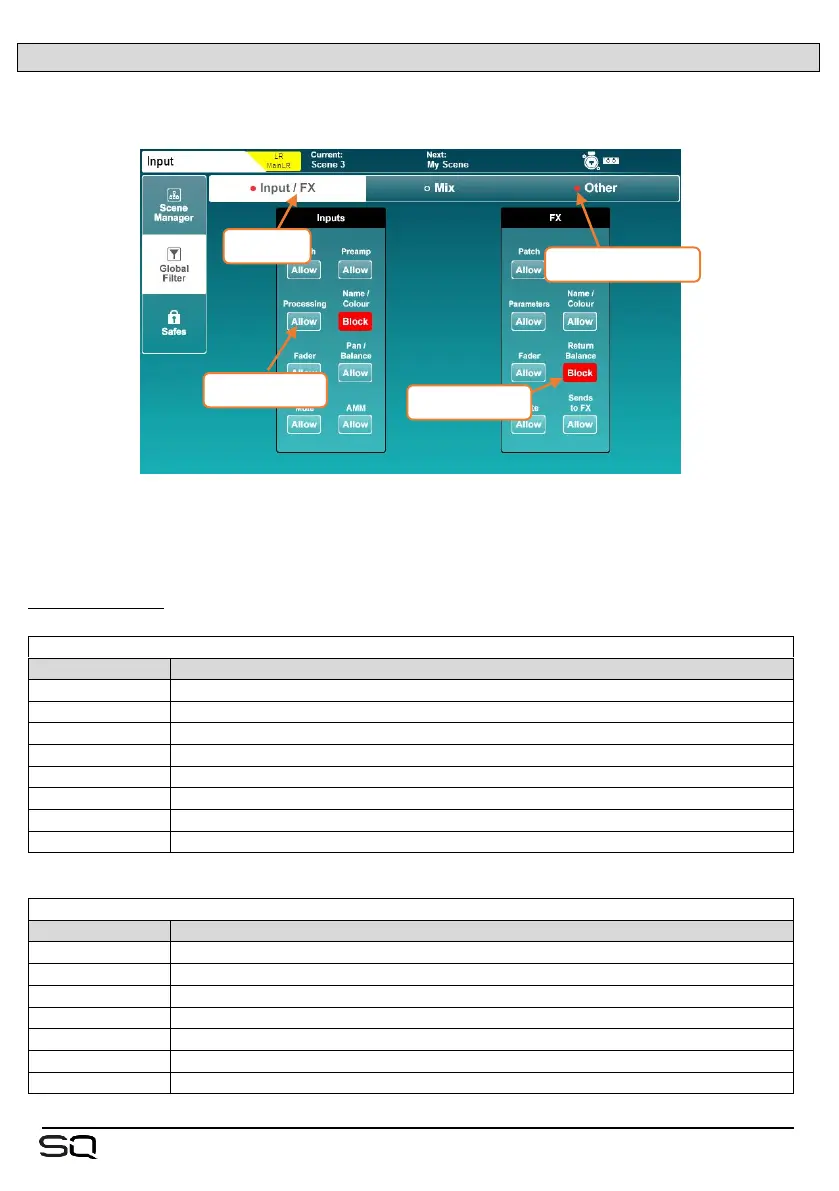

11.2 Global Filters
Global scene filters are always active, and affect which settings are changed when
recalling a scene. They also override any active scene filters.
• Touch any filter button to switch between ‘Allow’ and ‘Block’.
• Blocked parameters will not be affected when recalling scenes.
Input/FX Filters –
Inputs
Filter
Includes
Patch
Source and Direct Out patching of input channels
Preamp
Preamp settings of input channels and socket routing (excludes DEEP preamp models)
Processing
All Input channel processing and insert socket settings
Name/Colour
All input channel names and colours
Fader
All input channel fader positions and assignments to the Main LR mix
Pan/Balance
All input channel panning and balance to Main LR mix
Mute
All input channel mutes
AMM
All AMM assignments and settings
FX
Filter
Includes
Patch
All FX input patching (Mix->Return or Insert) and output patching
Parameters
All FX parameters and wet/dry mix settings
Name/Colour
All FX Send and Return channel names and colours
Fader
All FX Send and Return channel fader positions
Return Balance
All FX Return channel balance positions
Mute
All FX Send and Return channel mutes
Sends to FX
All send levels and assignments to FX busses
recall allowed
filter type
filter active on tab
recall blocked
