ALLEN & HEATH SQ-5 User Manual

 81
Reference Guide V1.5.0

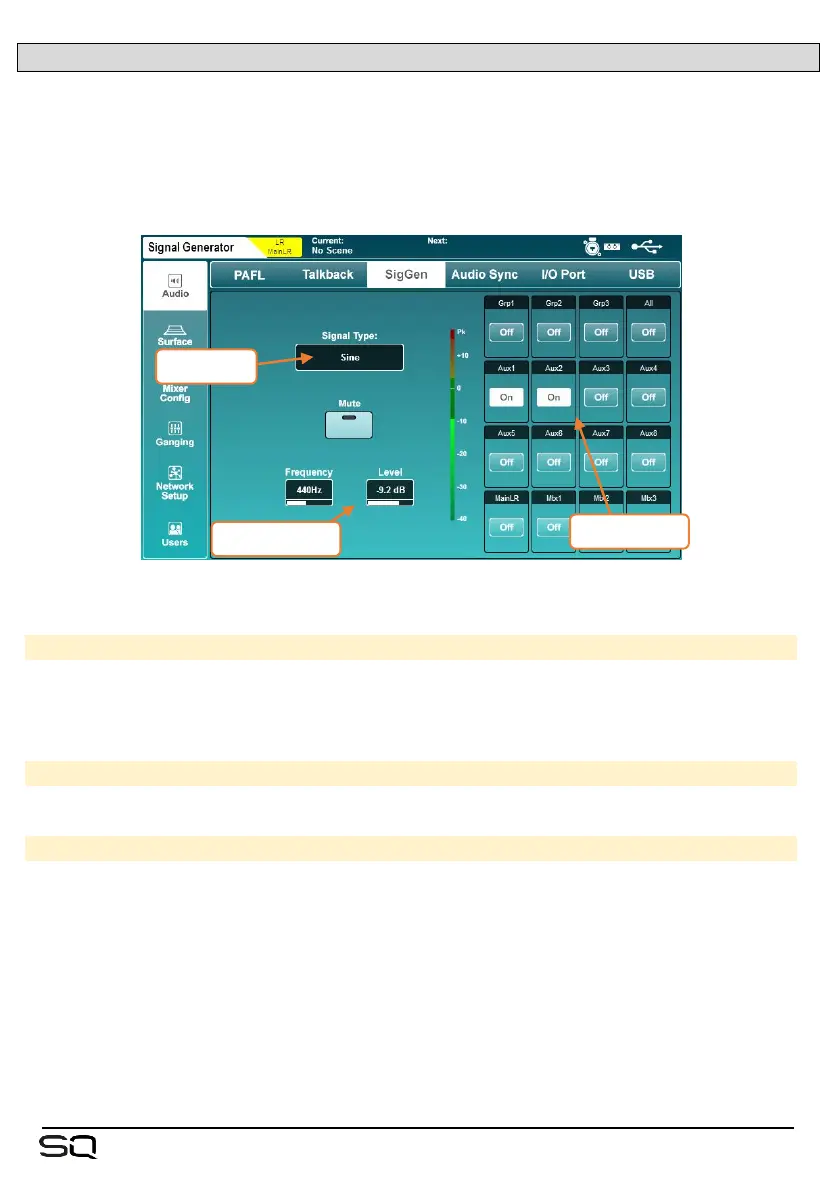

12.9 Signal Generator
The signal generator can be used to send a signal to a mix for level configuration or
used in conjunction with an RTA and a measurement microphone to check the
frequency response of a system.
Press the ‘Setup’ screen key, then touch the ‘Audio’ tab followed by the ‘SigGen’ tab
to view and adjust the signal generator settings.
• Touch the ‘Signal Type’ value to select a type of signal.
Signal Type = Sine, White noise, Pink noise, Band-pass noise
• Touch the ‘Mute’ button to mute or unmute the signal.
• Touch the ‘Frequency’ value (where available) and use the touchscreen rotary to
adjust.
Frequency = 20Hz to 20kHz
• Touch the ‘Level’ value and use the touchscreen rotary to adjust.
Level = -72dB to +18dB
• Touch any mix assign button to assign or unassign the signal generator to or from
a mix.
 The signal generator can also be used by any input channel. Select ‘Signal Generator’
in ‘Source Select’ on the Processing/Preamp screen.
signal type
signal controls
assign to mix

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
