ALLEN & HEATH SQ-5 User Manual

 69
Reference Guide V1.5.0
12. Setup

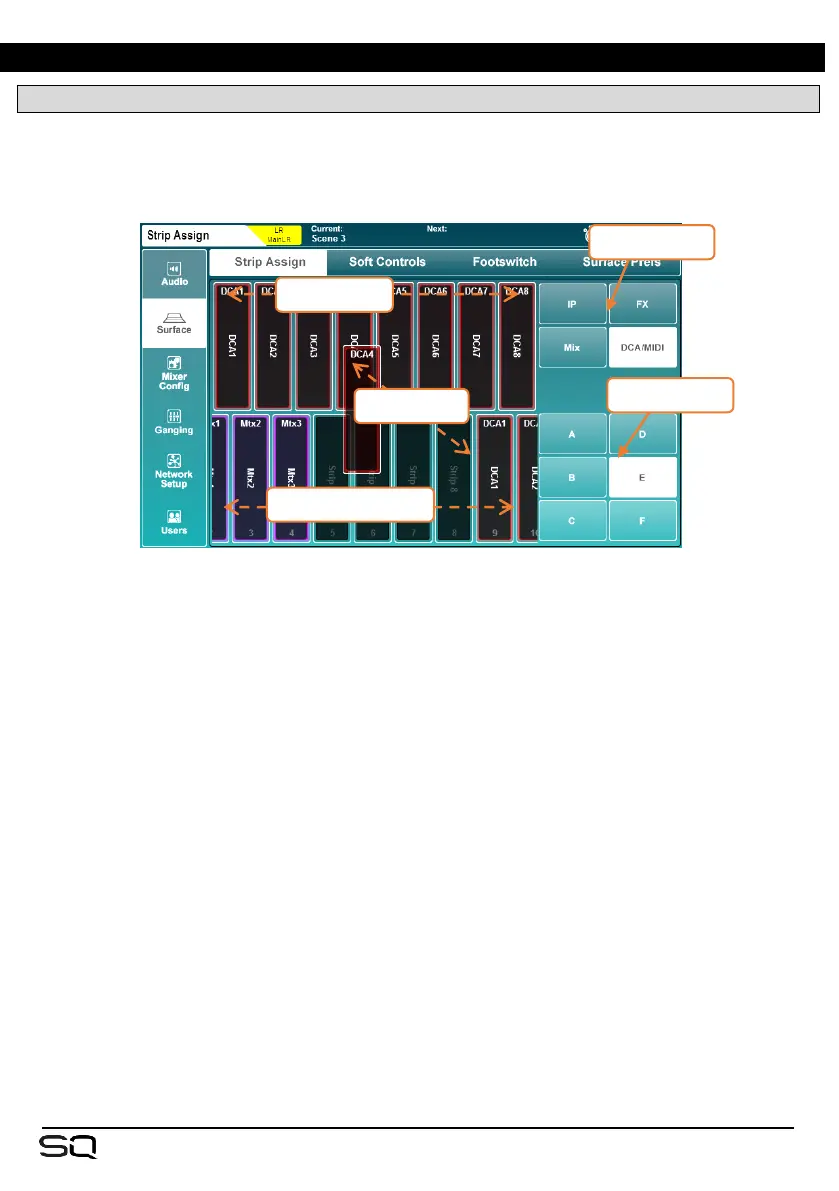

12.1 Strip Assign
All fader strips on the SQ are freely assignable.
Press the ‘Setup’ screen key, touch the ‘Surface’ tab then touch the ‘Strip Assign’
tab.
• SQ channels are displayed in the top half of the screen. Select channel types by
touching buttons at the right, and touch and drag left or right to view all available
channels.
• Fader strips are displayed in the bottom half of the screen. Select layers by
touching the buttons to the right or switching layers on the surface, then touch
and drag left or right to view all available fader strip slots.
• To assign channels to fader strips, touch and drag them from the top row to a
fader strip in the bottom row.
• To remove assignments, touch and drag them out of the fader strip at the bottom
towards the top of the screen.
 FX return channels can be assigned to fader strips but will not be visible unless they are
routed from the output of the FX engine (i.e. set as ‘Mix -> Return’ on the back panel).
 The ‘Listen’ bus is not a channel type, but the Master fader or a Soft Rotary can be used
to control Listen Level. See the Mixer Role section for more information.
SQ channels
channel types
surface fader strips
surface layers
drag ‘n’ drop

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
