11.5 Data Transfer (USB/MixPad)
All data transfer options are located in the ‘Utility’ screen, in the ‘Data’ tab. These
enable shows and individual scenes and libraries to be stored and recalled, and are
used to back-up data or transfer it to another SQ.
USB Shows –
To store a show to a USB device:
• Touch the ‘Store New’ button - you will be prompted to name the show.
To recall a show:
• Touch a show to highlight it (use the touchscreen rotary to change selection or
scroll through all shows) then touch the ‘Recall’ button.
To rename a scene:
• Touch a show, then touch in the ‘Name’ field in the centre of the screen.
To overwrite a scene:
• Touch the scene to overwrite, then touch the ‘Overwrite’ button.
 Storing or recalling shows is not possible when SQ-Drive is being used for recording or
playback.
 Storing or recalling shows will interrupt USB-B streaming.

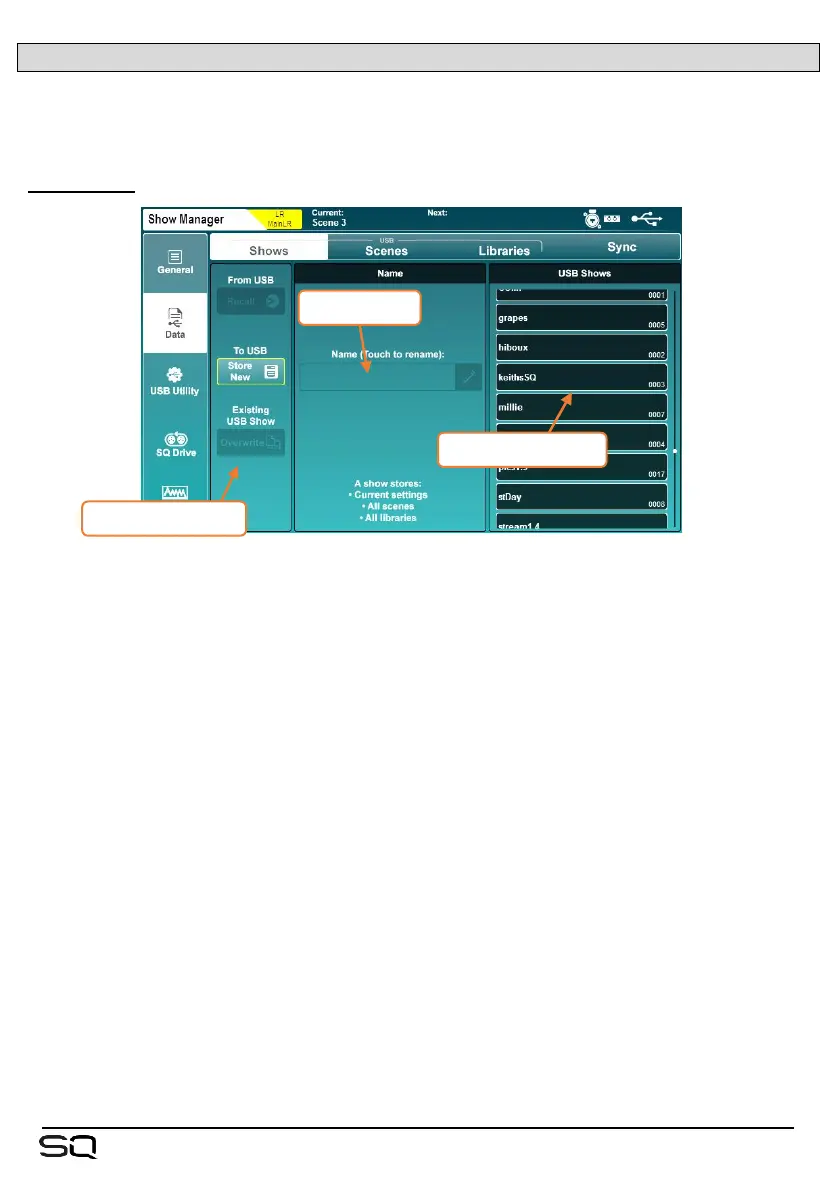

store/recall actions
rename show
shows on SQ-Drive

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
