7. Processing
Press any ‘Sel’ key to select a channel. The physical controls and keys around the
touchscreen will illuminate to show they are active and can be used to adjust
parameters for the selected channel.

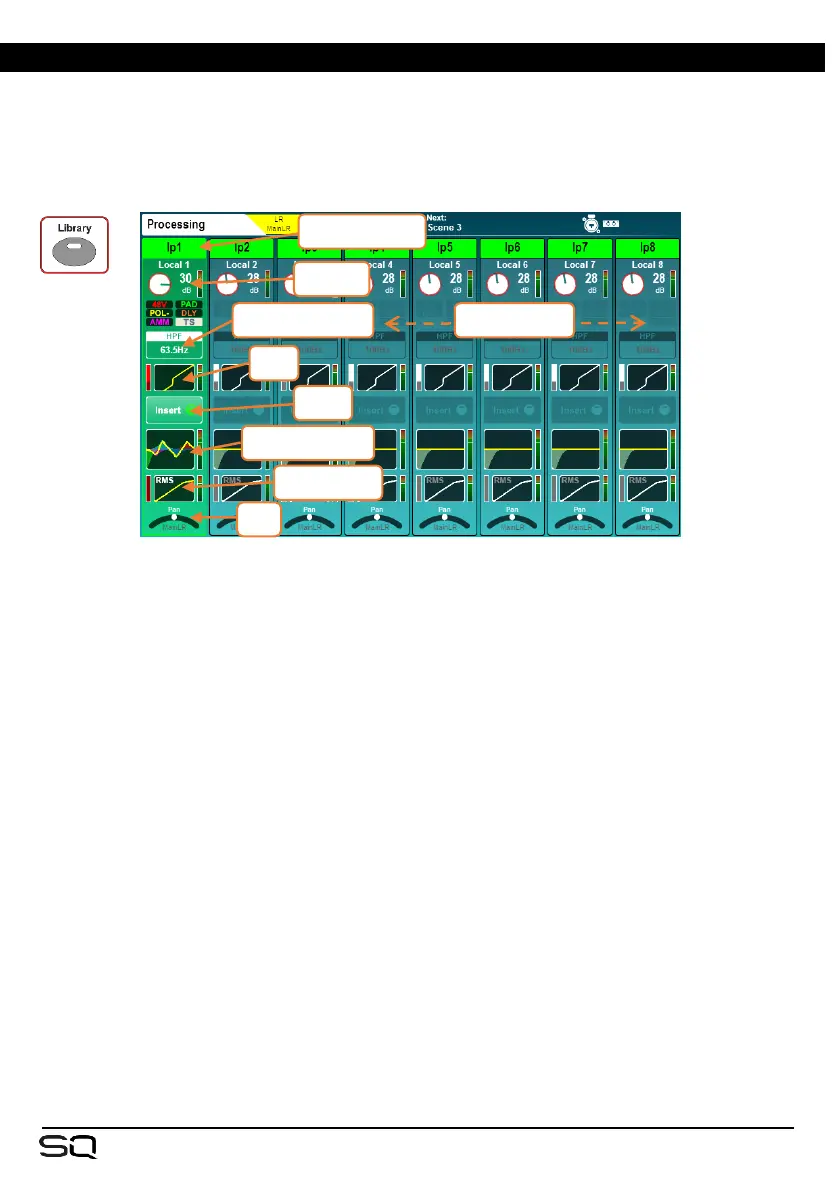

Press the ‘Processing’ screen key to display the processing ‘bank view’.
This gives the processing overview for up to 8 channels at once, with the selected
channel highlighted. The view will automatically change if a channel is selected which
is out of view, though you can also touch and drag to see all channels in the current
layer.
The currently selected mix channel is displayed to the far right.
• Touch a channel name to rename or change channel colour.
• Touch ‘Apply’ to set the name and colour (it will then be displayed on the screen
and channel LCD display).
 The keyboard remains on screen when other ‘Sel’ keys are pressed, to speed up the
naming of multiple channels.
• Touch any processing ‘block’ to view and adjust it in detail. The channel overview
will continue to be shown at the left of the screen. Selecting another channel of
the same type will allow you to adjust the same parameters on the newly selected
channel.
• Touch the active block or press the ‘Processing’ key to return to the bank view.
• The order of audio signal processing is displayed from top to bottom.
 DCA channels display a list of up to 28 ‘members’. If there are more members than this,
then ‘…’ will appear at the bottom of the list.
channel name
preamp
gate
insert
Parametric EQ
compressor
pan
drag left/right
High Pass Filter

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
