12.13 Mixer Role and Master Fader Mode
For quick setup from a known starting point you can select the ‘role’ of the SQ.

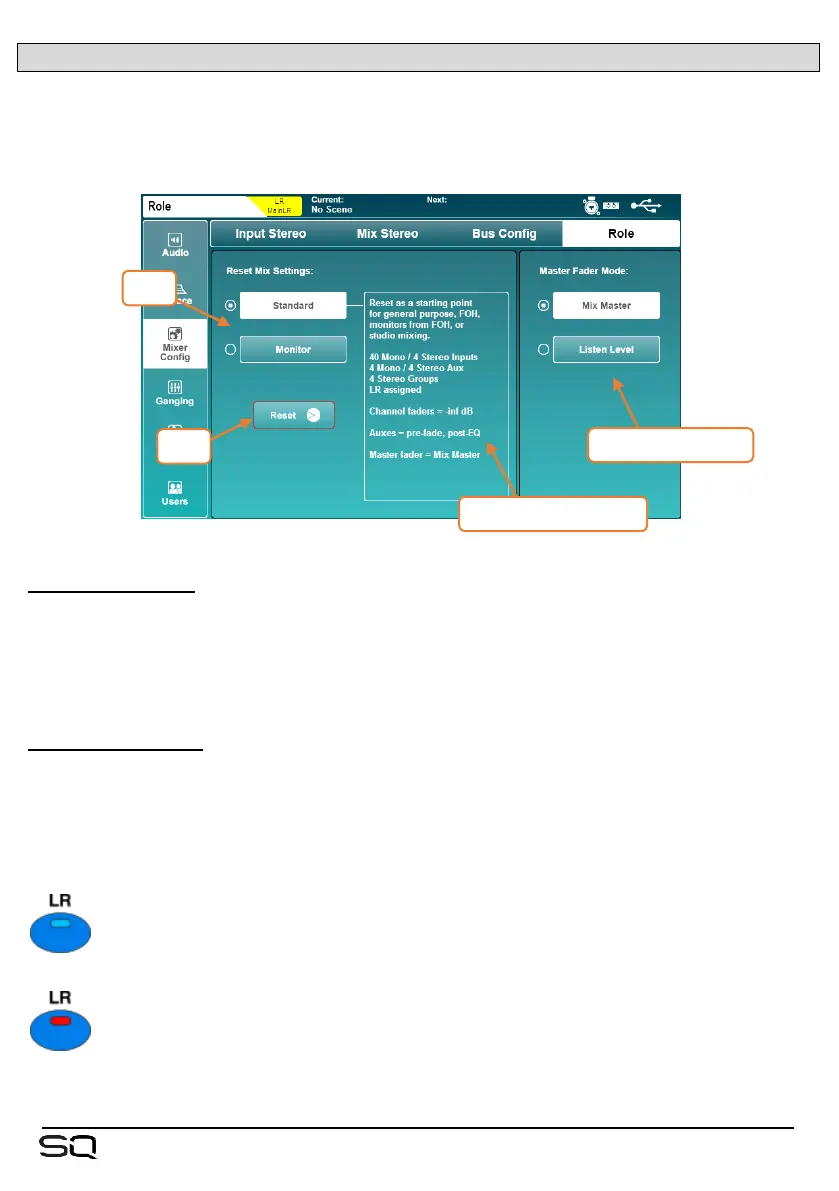

Press the ‘Setup’ screen key, then touch the ‘Mixer Config’ tab followed by the ‘Role’
tab to view options for resetting mix settings and to change the master fader mode.
Reset Mix Settings –
Selecting a role for the SQ and touching the ‘Reset’ button will reset the mix. Scenes
and libraries are unaffected, though global filters and safes (used when recalling
scenes) are ignored, and all safes are cleared.
 For details on default settings for different roles, see the Mix/System Reset section.
Master Fader Mode –
The master fader can either be used to control the master send level of the selected
mix or the level of the listen bus. Touch either mode button to instantly switch mode.
 The listen level can be viewed and adjusted in the PAFL screen.
In ‘Mix Master’ mode, the blue LR mix key on the surface is illuminated blue
when the LR mix is selected.
In ‘Listen Level’ mode, the blue LR mix key on the surface is illuminated red
at all times.
roles
description of settings
master fader mode
reset

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
