ALLEN & HEATH SQ-5 User Manual

 78
Reference Guide V1.5.0

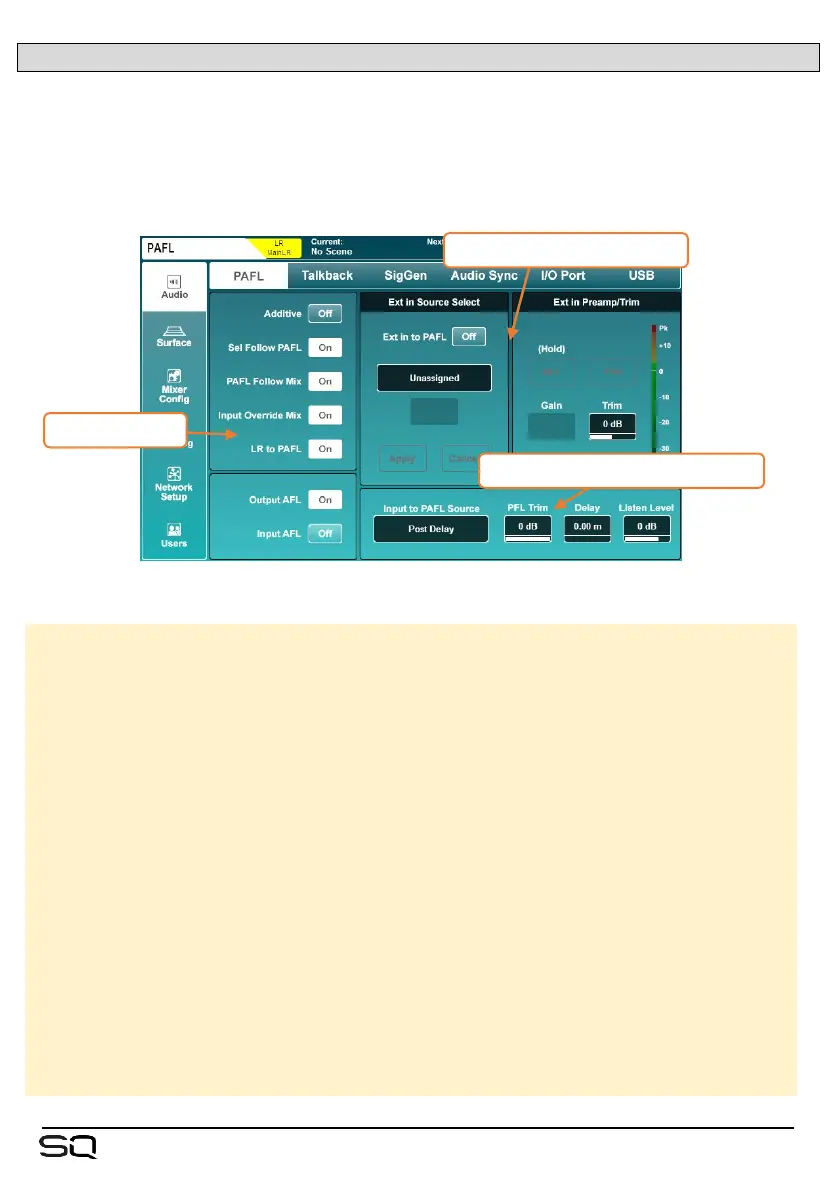

12.7 PAFL
The Pre/After Fade Listen settings affect the behaviour of the PAFL bus which is
routed to the SQ headphone output and displayed on the 12 segment LED meter as
well as being routed to the SQ’s RTA.
Press the ‘Setup’ screen key, then touch the ‘Audio’ tab, followed by the ‘PAFL’ tab
to display and adjust settings.
• Touch any button on the left of the screen to turn an option on or off.
Additive (On) = Allows multiple channel strips to be routed to the PAFL bus at
once.
Sel Follow PAFL (On) = Pressing a PAFL key will also select (‘Sel’) a channel.
PAFL Follow Mix (On) = When PAFL is active on the master/mix channel strip,
the channel being routed to PAFL will follow mix selection.
Input Override Mix (On) = When PAFL is in additive mode, pressing the PAFL
key of an input channel unassigns mix channels from the PAFL bus.
Unassigning all input channels reassigns the previously assigned mixes.
LR to PAFL (On) = When no other PAFL routing is active, the main LR mix is
routed to the PAFL bus.
Output AFL (Off) = Output channels routed to the PAFL bus are pre-fade.
(Pre-Fade Listen)
Output AFL (On) = Output channels routed to the PAFL bus are post-fade.
(Post/After Fade Listen)
Input AFL (Off) = Output channels routed to the PAFL bus are pre-fade.
(Pre-Fade Listen)
Input AFL (On) = Input channels routed to the PAFL bus are post-fade.
(Post/After Fade Listen)
PAFL behaviour
external input options/control
source, trim, delay and listen level

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
