Tie lines allow you to pass audio directly from any available input source to one or
multiple outputs and have many applications including:
• Sending unprocessed (post socket analogue preamp) audio whilst simultaneously
sending processed audio from the direct out (such as when multitrack recording
and using a ME personal monitoring system at the same time).
• Setting up digital splits for front of house and monitor or broadcast setups.
• Sending an ambient microphone (not required in any mix) to USB or option card
for recording without using up an input channel.
 To protect preamp settings for sockets not assigned to input channels on scene
changes, block ‘Tie Line Only Preamps’ in Global or Scene recall filters.
6.8 Socket Control

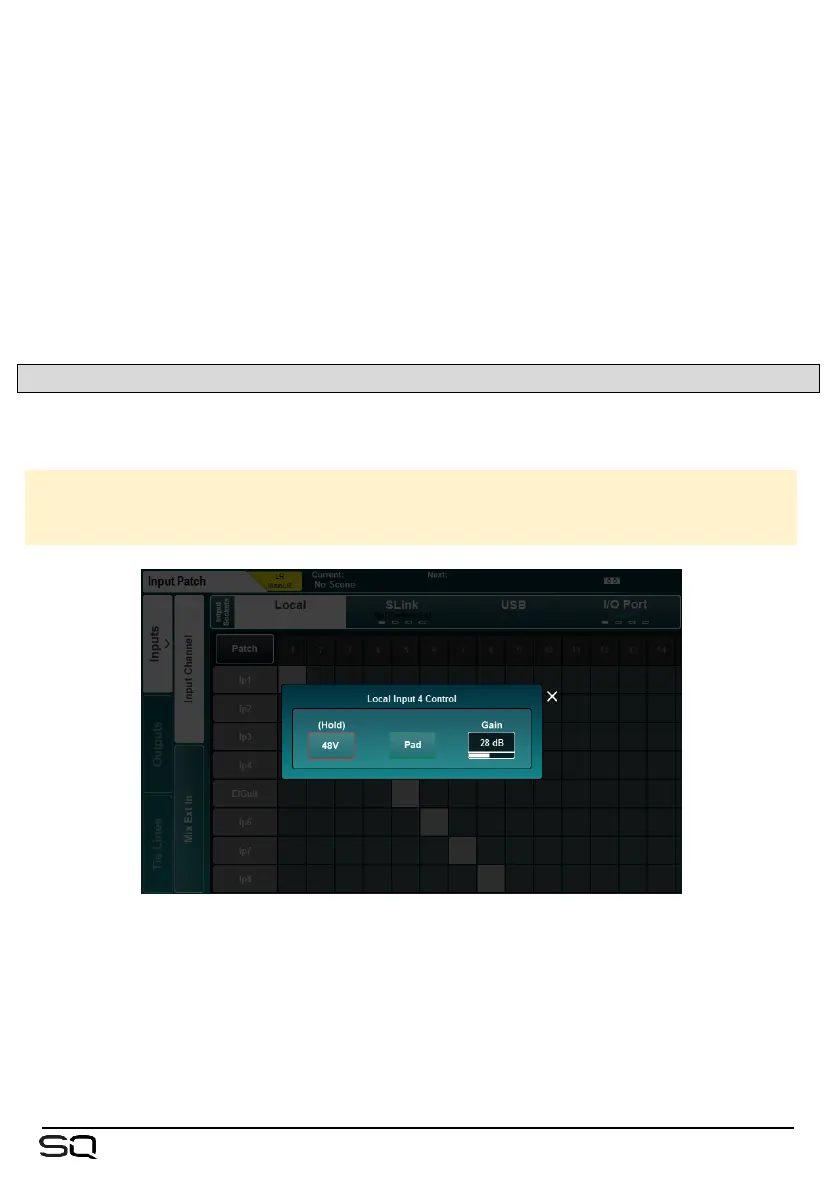

Touching a socket number at the top of the patching matrix opens the socket control
pop-up with the following options for connected local or expander sockets.
Analogue input = 48V, Pad and Gain
AES input = SRC Bypass option
AES output = Output Sample Rate

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
