ALLEN & HEATH SQ-5 User Manual

 58
Reference Guide V1.5.0
11.1 Scene Manager
The scene manager allows scenes to be stored, recalled or deleted and for per-scene
recall filters to be applied.
To store all current mix settings in a new slot:
• Touch any empty slot.
• Touch the ‘Store’ button to save with the name ‘Scene [x]’.
OR
• Touch in the empty scene name field to be prompted to name the scene at the
same time as storing it.
To recall a scene:
• Touch a scene to highlight it then touch the ‘Go’ button.
To rename a scene:
• Touch the scene, then touch in the edit scene name field at the top of the screen.
To overwrite a scene:
• Touch the scene to overwrite, then touch the ‘Store’ button.
To delete a scene:
• Touch the scene you wish to delete then touch the ‘Delete’ button.
 You can choose whether or not to confirm scene operations (and avoid accidental
overwriting) by using the ‘Confirm Scene Operations’ button found in Surface
Preferences.

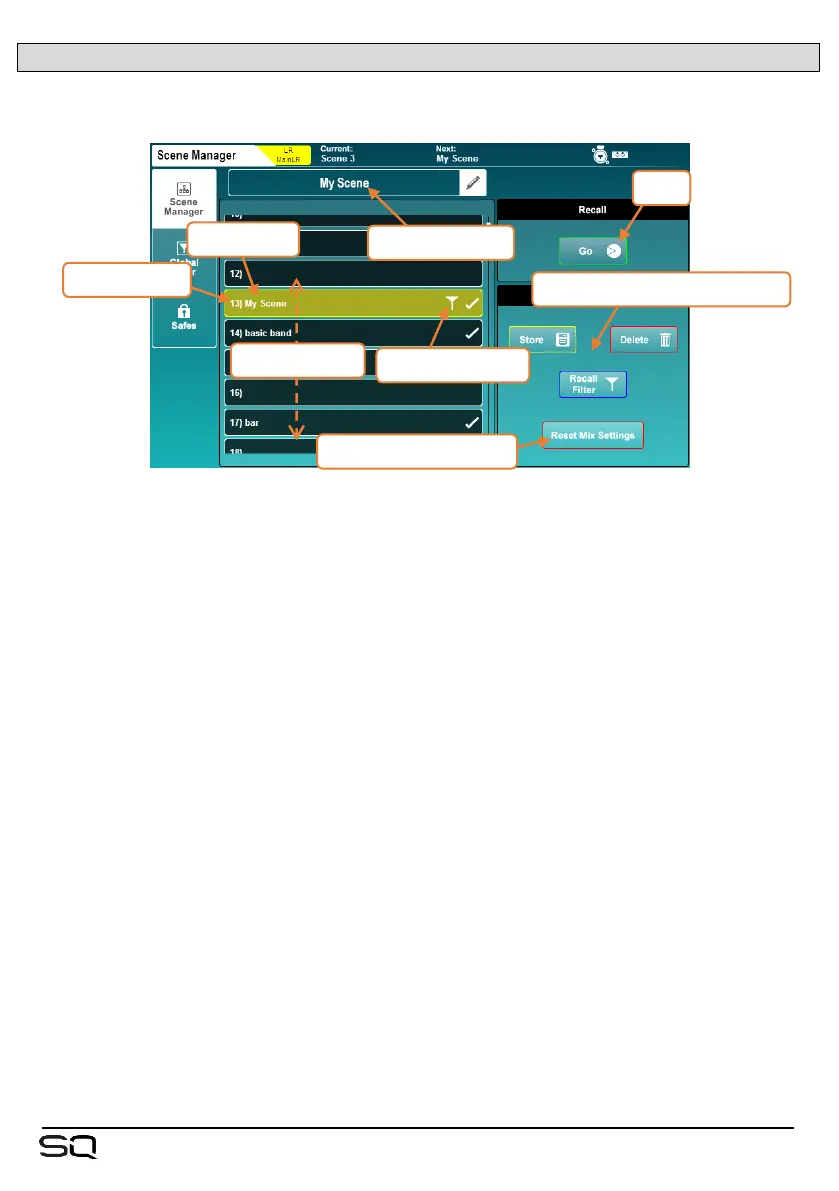

scene number
scene name
edit scene name
recall
store, modify and filter settings
scene filter active
touch and drag
shortcut to ‘role’ screen

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
