Reference Guide V1.5.0
To quickly copy, paste or delete scenes:
• Hold the ‘Copy’ key and touch the scene you wish to copy.
• Hold the ‘Paste’ key and touch the scene slot in which you’d like to paste it.
• Hold the ‘Reset’ key and touch a scene to delete it.
Scene Filters –
When storing a scene, all mix settings are saved. However, it is possible to filter what
is recalled using a combination of scene recall filters and global filters.
 See Global Filters for information on what each filter allows or blocks.

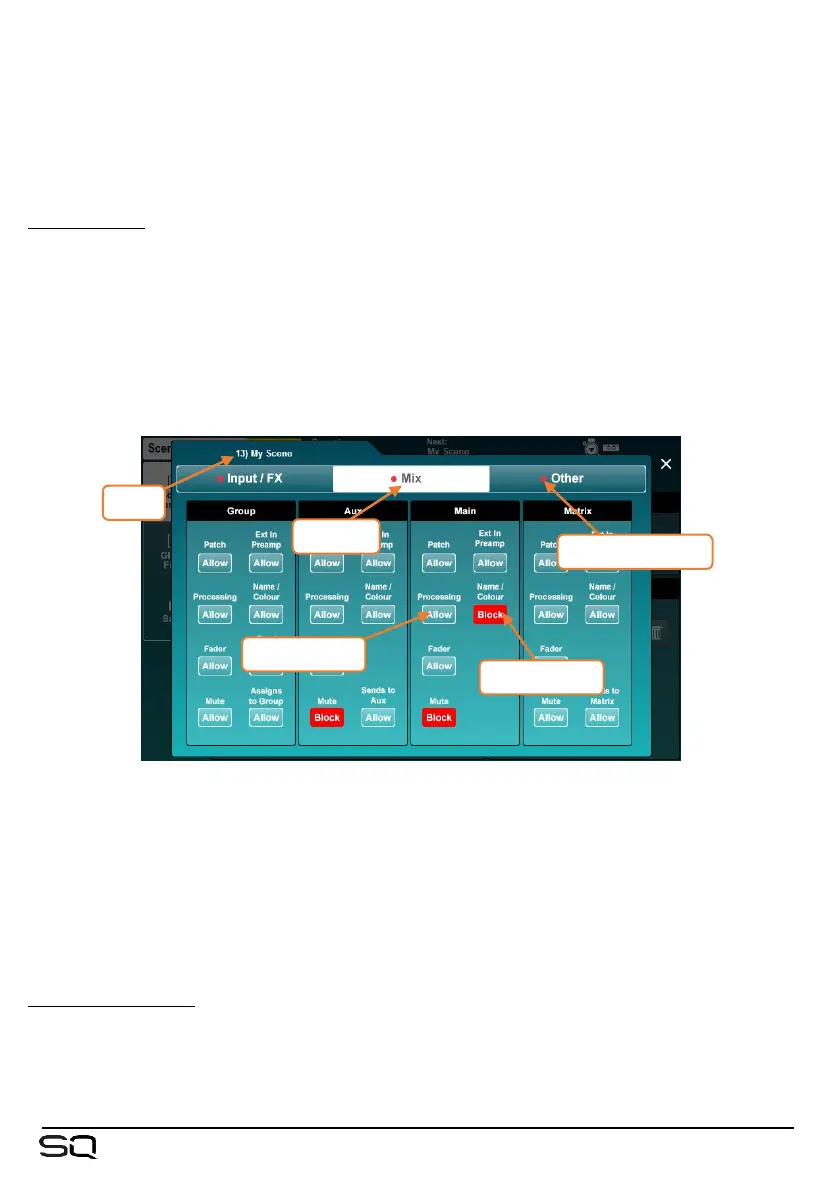

To choose which filters are allowed or blocked per scene:
• Touch a scene to highlight it then touch the ‘Recall Filter’ button.
• In the pop-up, there are three tabs ‘Input/FX’, ‘Mix’ and ‘Other’ containing all
available filters.
• Touch any filter button to switch between ‘Allow’ and ‘Block’.
• Blocked parameters will not be affected when recalling the scene.
 The Copy/Paste/Reset keys can also be used with the ‘Recall Filter’ button.
Reset Mix Settings –
If wanting to start with default mix settings, pressing the ‘Reset Mix Settings’ button
takes you to the Role page where it is possible to reset the mix without deleting
scenes. See Reset Mix Settings for more information.
recall allowed
filter type
filter active on tab
recall blocked
scene
