ALLEN & HEATH SQ-5 User Manual

 95
Reference Guide V1.5.0

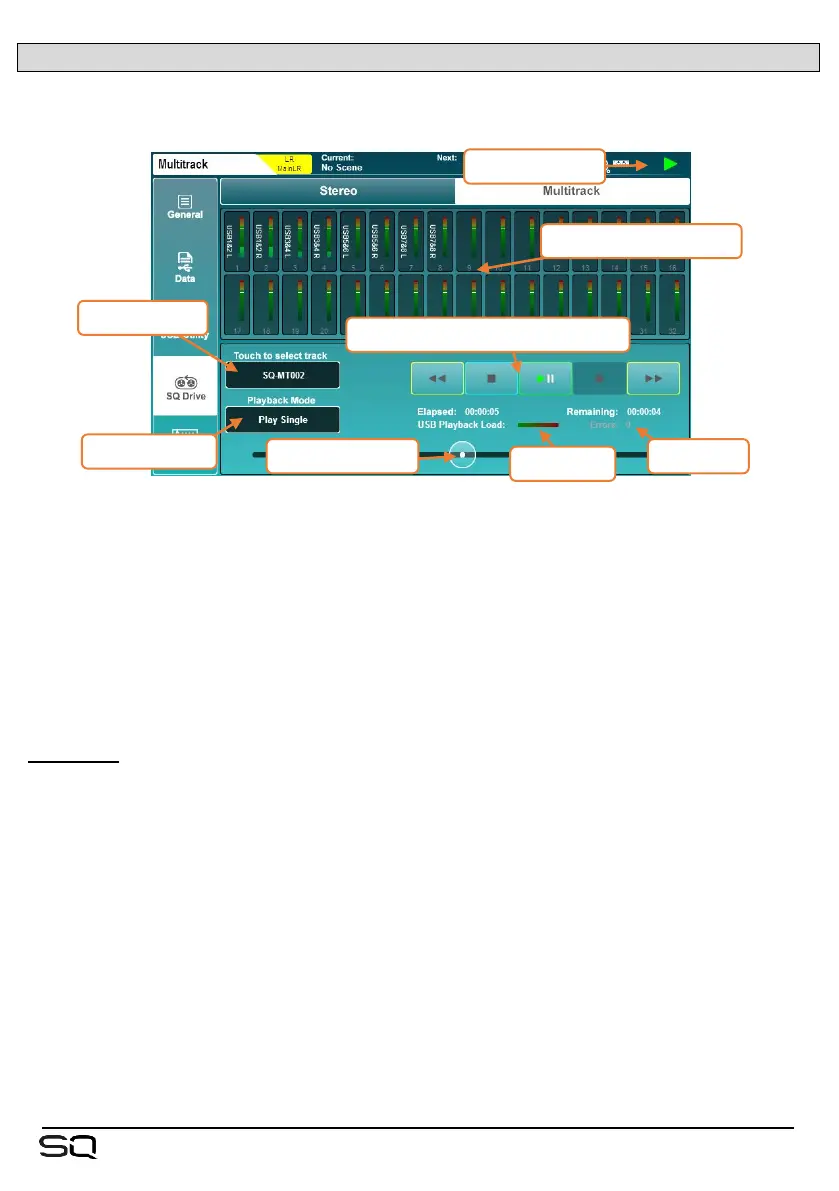

13.2 SQ-Drive Multitrack Recording and Playback
Press the ‘Utility’ screen key then touch the ‘SQ-Drive’ tab followed by the
‘Multitrack’ tab to show the SQ-Drive multitrack record/playback screen.
In 96kHz operation the top row of 16 meters is displayed with the bottom row greyed
out. When the USB sample rate is set to 48kHz, all 32 meters are shown.
When SQ-Drive is not being used, and during recording, the meters display the
outputs from the SQ that have been patched to USB channels. During playback the
meters instead show the incoming USB levels and are labelled with the highest
numbered channel to which they have been patched.
 Meters for USB inputs and outputs can be seen simultaneously in the ‘Meters/USB
meters’ screen.
Recording –
Only USB channels that have been patched to will be recorded. So, to avoid using
disk space unnecessarily, patch only the required channels to USB in the I/O screen
and leave other USB output sockets unpatched.
• Press the record button to arm recording. A new multitrack file name will appear,
the ‘Remaining’ time value will be displayed and the ‘Errors’ counter will reset.
• Press the play/pause button to start recording. The ‘Elapsed’ and ‘Remaining’
time values will display progress.
• Press the stop button to stop recording.
 Allow the write process to complete before recording again or removing the device.
 The device load meter indicates the suitability of the USB device for recording or
playback of audio.
 The ‘Errors’ counter increments with any detected writing error.
playback mode
record/playback controls and time
error count
record/playback meters
track selection
SQ-Drive status
device load
playback position
