ALLEN & HEATH SQ-5 User Manual

 71
Reference Guide V1.5.0

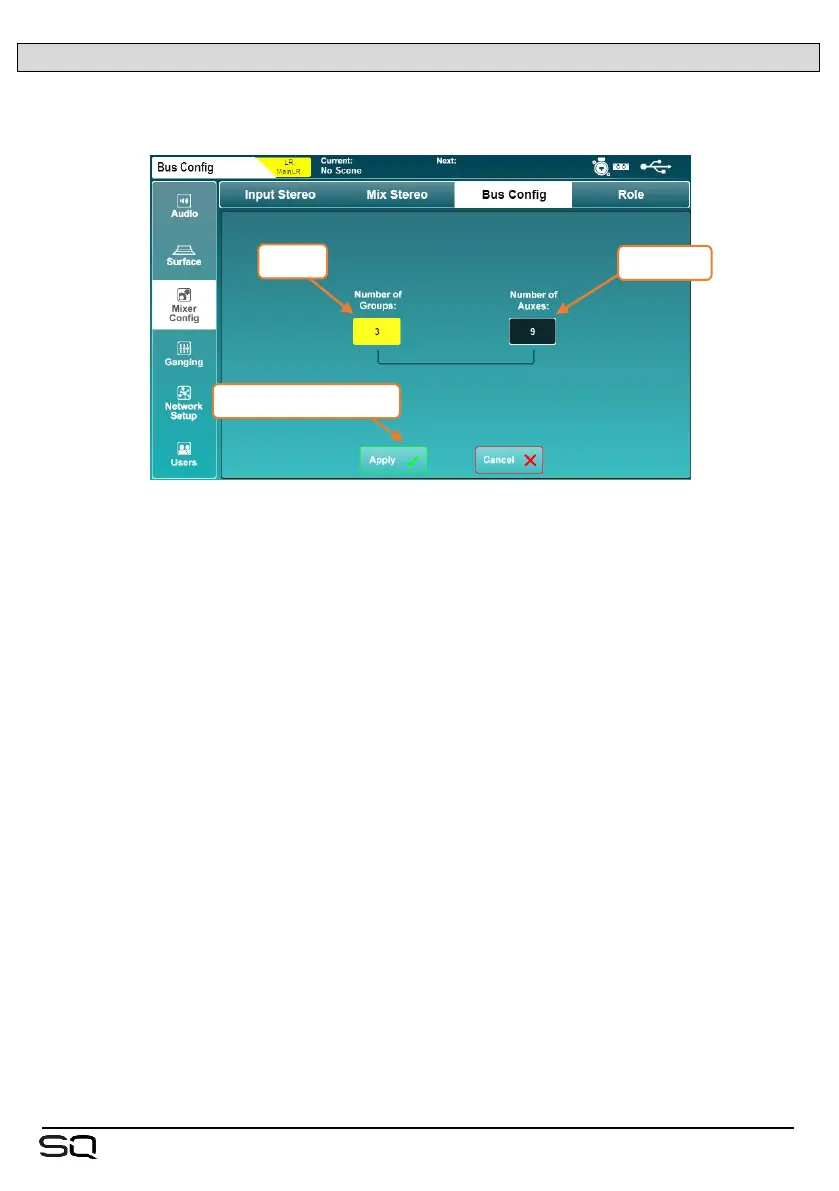

12.3 Mix Bus Configuration
The 12 mixes can be switched between group and auxiliary modes under the ‘Bus
Config’ tab.
• Touch either the ‘Number or Groups’ value or the ‘Number of Auxes’ value,
then adjust using the touchscreen rotary.
• Increasing the number of groups will decrease the number of auxiliaries and vice
versa.
• Touch the ‘Apply’ button to apply any changes.
Auxiliaries will always be assigned sequentially to the first mix keys, with groups
assigned afterwards. For example, if you configure the buses as 5 groups and 7
auxes, auxes 1 to 7 will be on mix keys 1 to 7 and groups 1 to 5 will be on mix keys 8
to 12.
 Mix keys assigned to auxes illuminate blue when active, and mix keys assigned to
groups illuminate magenta.
groups
auxiliaries
apply/cancel changes

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
