12.2 Input/Mix Stereo Assign
To use channels as stereo channels throughout the mixer, they must first be switched
into stereo mode.
In the ‘Setup’ screen, touch the ‘Mixer Config’ tab, then touch either ‘Input Stereo’ or
‘Mix Stereo’.
• Odd/even pairs of input channels or any mix can be switched between mono and
stereo mode by touching the ‘Mono/Stereo’ button.
• Touch the ‘Apply’ button to apply any changes.
• Touch the ‘Cancel’ button to undo changes and display the current state.
 Mixer Config changes (including mono/stereo assignments) require a restart of the core,
which interrupts audio and therefore cannot be switched per scene. Using two mono
inputs for stereo sources on a per scene basis can instead be achieved with Ganging.

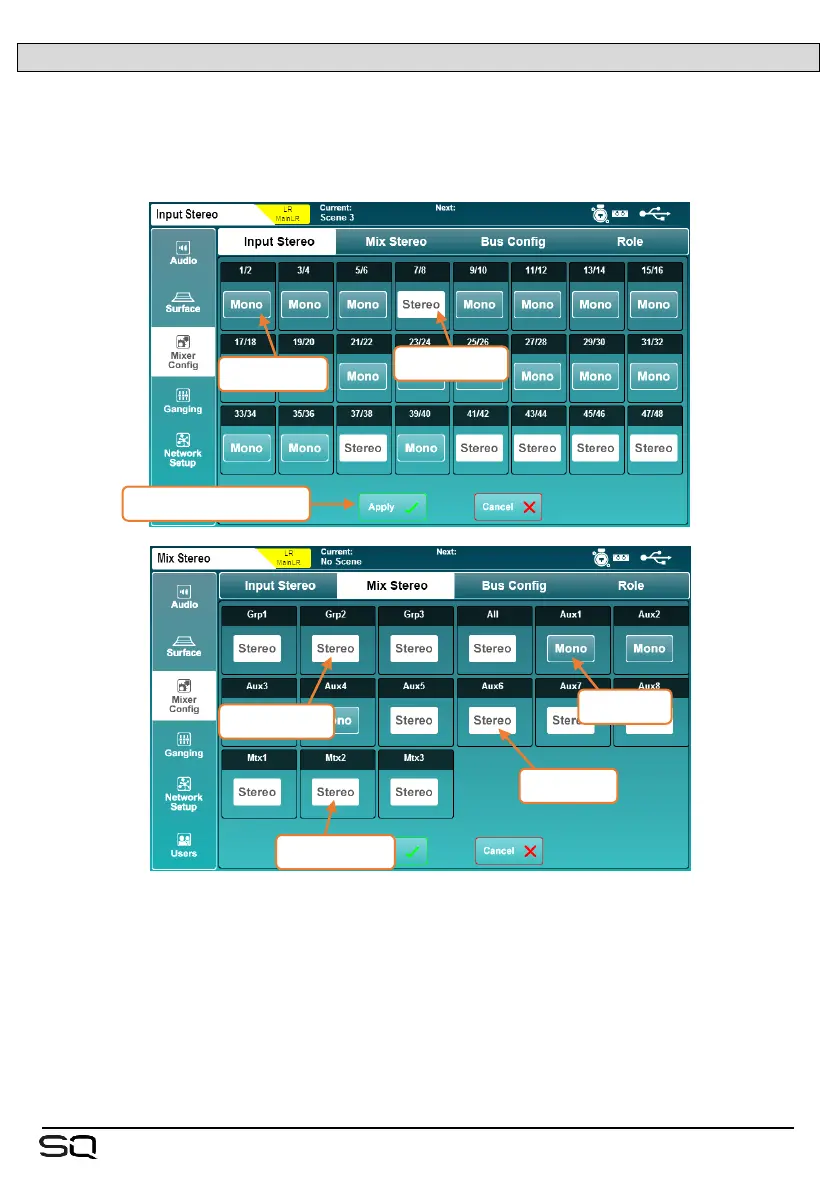

mono mode
stereo mode
apply/cancel changes
stereo group
mono aux
stereo aux
stereo matrix
