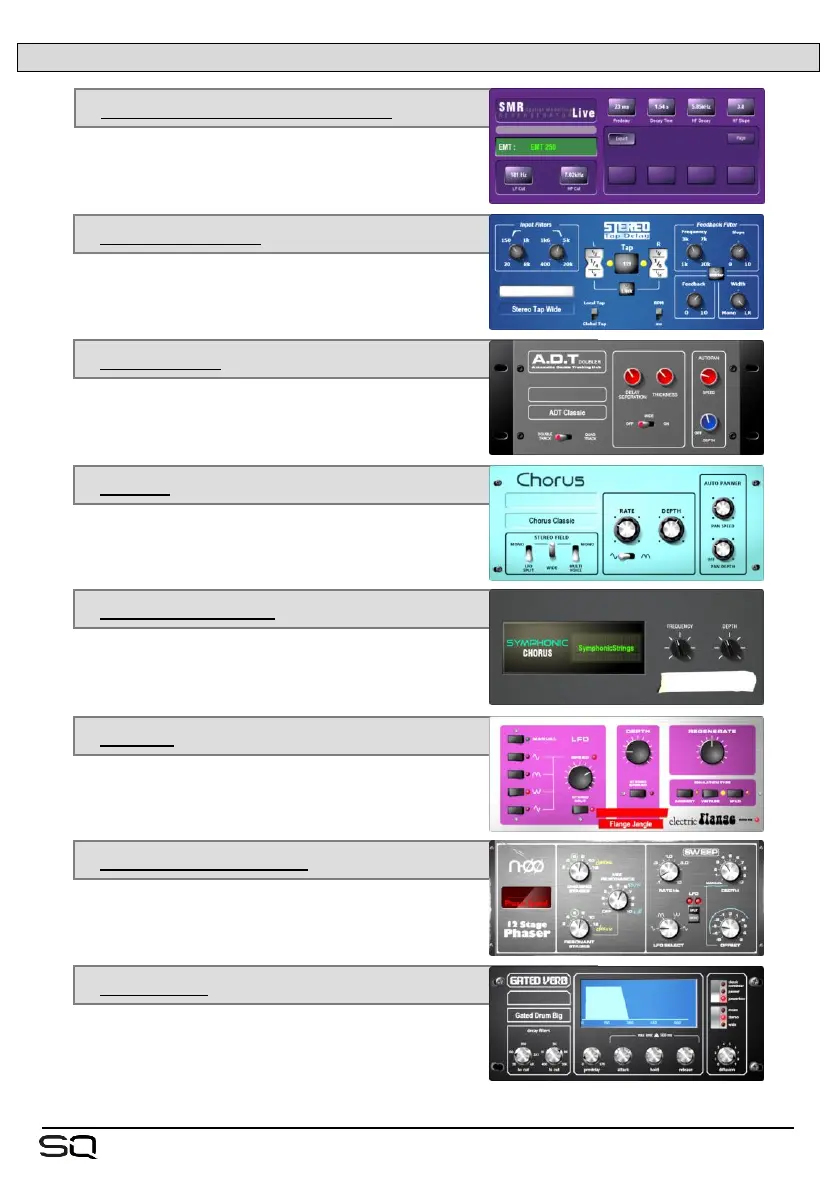

10.7 RackExtra FX Types
Spatial Modelling Reverb (SMR) –
4 fully configurable complex spatial
models: Classic, Hall, Room and EMT.
ADT Doubler –
Automatic double tracking unit with
double and quad modes, separation,
thickness and autopan control.
Stereo Tap Delay –
Clean digital delay with link, filters, tap
tempo (global or local) and BPM or ms
display options.
Chorus –
Versatile chorus unit with 3 stereo field
options, rate, depth and LFO control,
plus autopan option.
Symphonic Chorus –
A faithful emulation of the 80’s classic
chorus effect with 2 very simple
controls.
Flanger –
3 classic flanger effects in one unit:
‘Ambient’, ‘Vintage’ and ‘Wild’ with
multiple LFO and stereo options.
MOO 12 Stage Phaser –
Accurate emulation of a 12 stage
phaser, with rich, textured phasing and
plenty of control.
Gated Verb –
Emulation of the 80’s classic gated
reverb, with in-depth control and 2 extra
variants: ‘Panned’ and ‘Powerbox’.

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
