45
Reference Guide V1.5.0

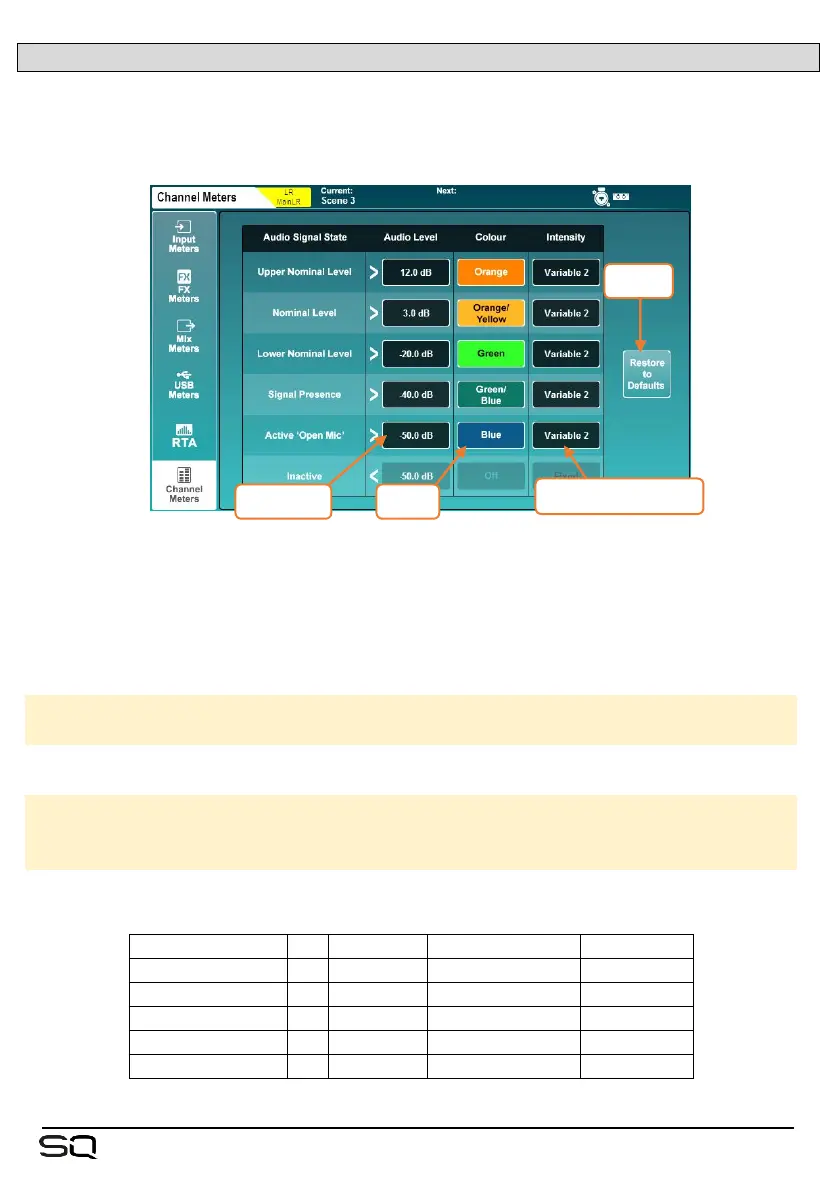

9.4 Chromatic Channel Metering
The Chromatic Channel Metering displays the information of a high-resolution meter in
the space of a single LED. It can depict a much greater range of levels than a
traditional meter and behaviour is customisable in the ‘Channel Meters’ tab.
Touch an ‘Audio Level’ value and adjust using the touchscreen rotary.
Audio Level’ values are bound by the level setting of states above and below.
Touch a colour for an ‘Audio Signal State’ and use the touchscreen rotary to
adjust the colour/s for this level range.
Colours = White, Red, Orange, Orange/Yellow, Yellow,
Green, Green/Blue, Blue, Blue/Red, Off.
Touch the ‘Intensity’ value to choose the behaviour of the meters.
Fixed = meter switches instantly between states.
Variable 1 = Meter changes close to the endpoints of its range.
Variable 2 = Meter changes across the whole range.
Touch the ‘Restore to Defaults’ button to restore settings:
Upper Nominal
>
+12.0dB
Orange
Variable 2
Nominal
>
+3.0dB
Orange/Yellow
Variable 2
Lower Nominal
>
-20.0dB
Green
Variable 2
Signal Presence
>
-40.0dB
Green/Blue
Variable 2
Active ‘Open Mic
>
-50.0dB
Blue
Variable 2
Inactive
<
N/A
N/A
N/A
‘threshold’
colour
brightness/intensity
default
