USB Scenes –
To store an individual scene to a USB device:
• Touch to select the scene you wish to store in the ‘SQ Scenes’ list on the left.
• Touch the ‘To USB’ button.
To transfer a scene from USB to the SQ:
• Touch to select the scene to transfer in the ‘USB Scenes’ list on the right.
• Touch to select an empty slot in the ‘SQ Scenes’ list on the left.
• Touch the ‘To SQ’ button to transfer.
To overwrite a scene:
• Touch to select the scene to transfer in the ‘USB Scenes’ list on the right.
• Touch to select the scene to overwrite in the ‘SQ Scenes’ list on the left.
• Touch the ‘Overwrite SQ’ button to transfer and overwrite the SQ scene.
To delete a scene from USB:
• Touch to select the scene to delete in the ‘USB Scenes’ list on the right.
• Touch the ‘Delete’ button and confirm the action in the pop-up.

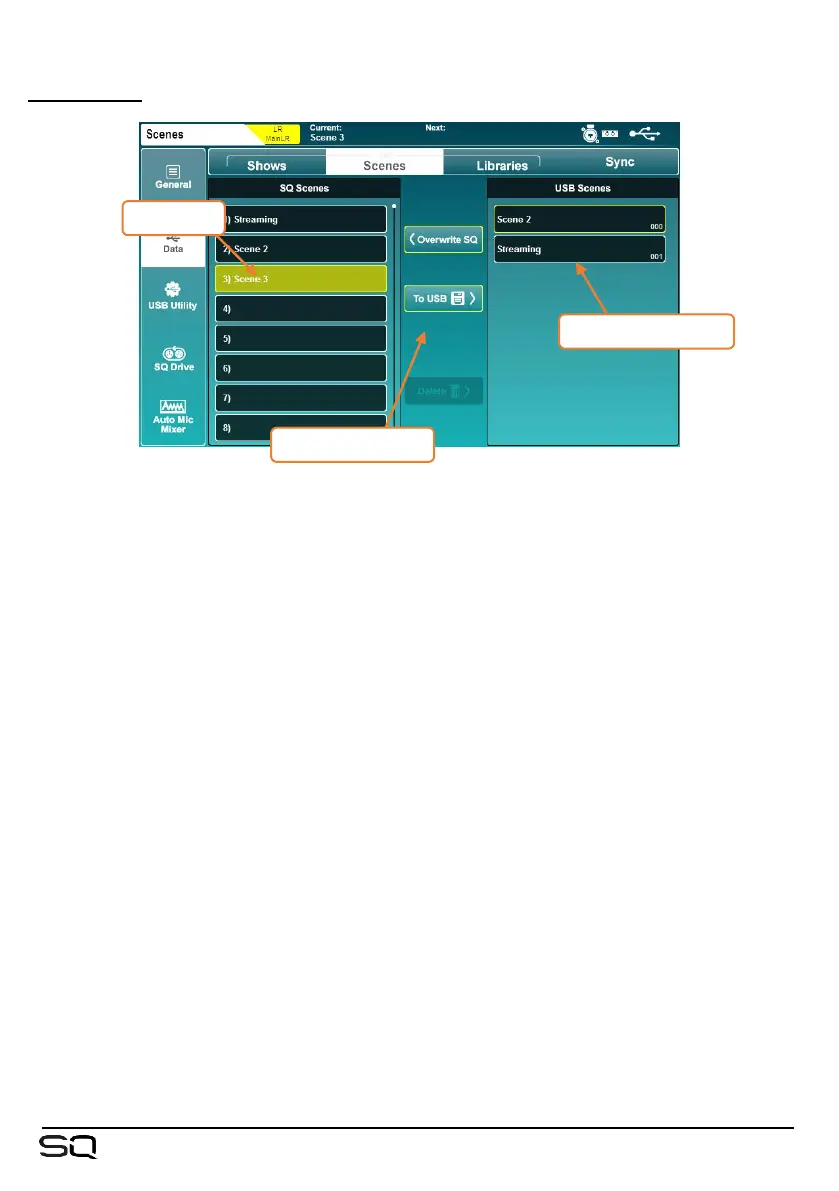

to/from SQ actions
SQ scenes
scenes on SQ-Drive

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
