ALLEN & HEATH SQ-5 User Manual

 33
Reference Guide V1.5.0
RTA – The RTA displays the levels of the RTA source for each frequency band of the
GEQ.
For full information on the GEQ RTA see the RTA section of this guide.

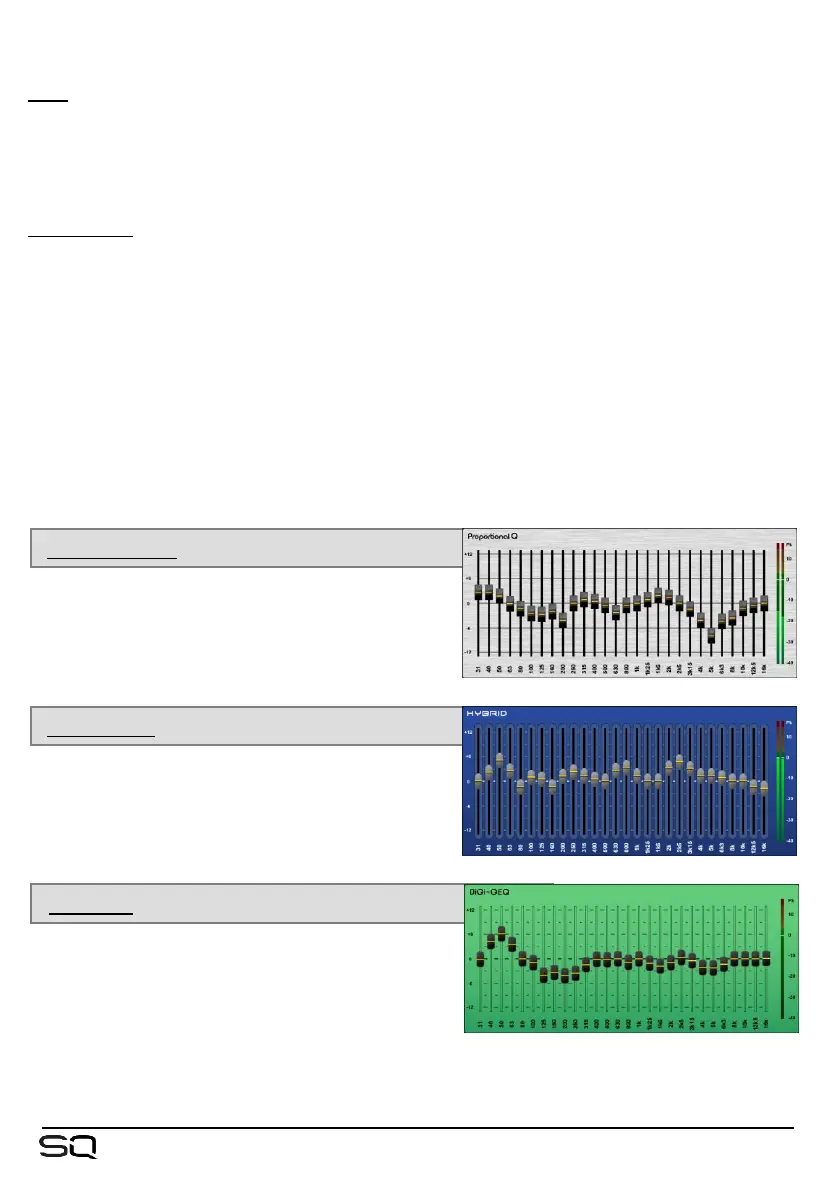

DEEP GEQ –
Along with the ‘Constant-Q’ GEQ, other DEEP GEQ’s with unique characteristics can
be added to the SQ.
Once added to the SQ, these can be used in place of the ‘Constant-Q’ GEQ on any
mix channel.
 Information on how to add models can be found in the Add-ons section of this guide.
• Press the ‘Library’ key to see the GEQ Library.
• Different GEQ models are recalled from the ‘Factory’ library.
• Store and Recall DEEP GEQ user presets using the ‘User’ library.
Hybrid GEQ –
A combination of the Proportional-Q and
Constant-Q units providing smooth boosts
and clinical cuts.
Digi GEQ –
Optimised gain and width to minimise
frequency band interaction.
Proportional-Q –
Smooth wide Q which progressively
narrows toward maximum cut or boost
values.

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
