ALLEN & HEATH SQ-5 User Manual

 47
Reference Guide V1.5.0

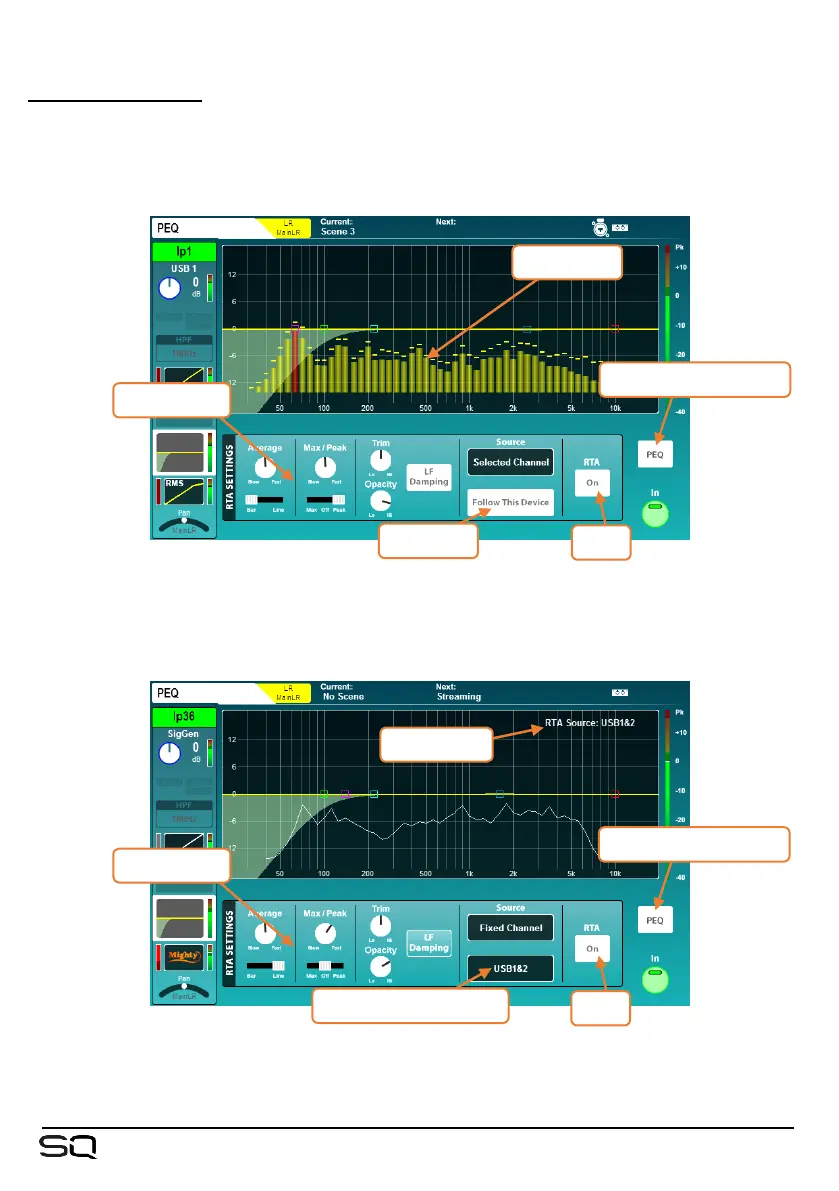

RTA – PEQ Screen –
The 61 band PEQ RTA uses automatic gain control (pre-trim) to display useful relative
levels of frequencies on the PEQ graph. By default, it is sourced from the selected
channel and is shown on all input and mix channels.
The average meters for the PEQ RTA can either be displayed as bars, with each
meter’s centre aligned with the frequency it represents, or as a line.
follow ‘Sel’
RTA settings
return to PEQ settings
on/off
RTA meters
fixed channel selection
RTA settings
return to PEQ settings
on/off
RTA Source

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
