ALLEN & HEATH SQ-5 User Manual

 49
Reference Guide V1.5.0

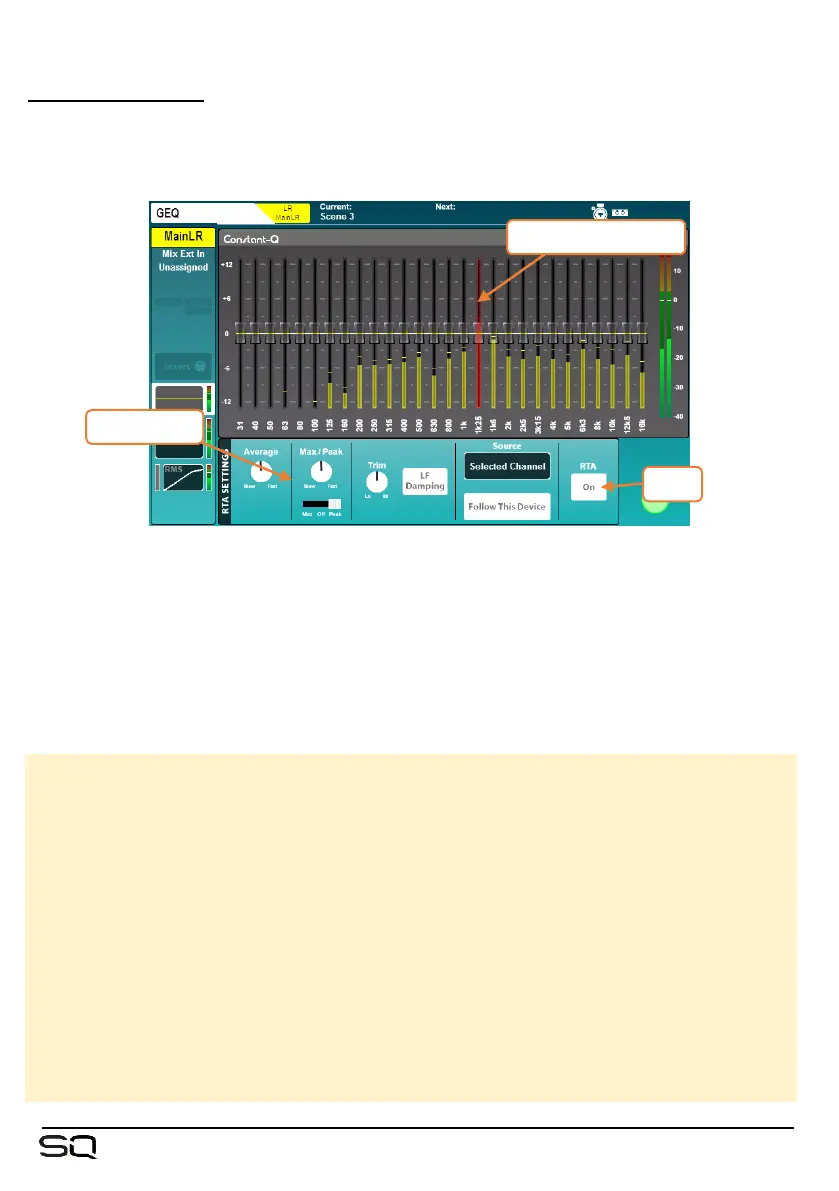

RTA – GEQ Screen –
The 28 band GEQ RTA uses automatic gain control (pre-trim) to display useful relative
levels of frequencies for each band of the Graphic EQ. By default, it is sourced from
the selected mix channel.
• If the RTA for a different channel is being displayed through use of the ‘Fixed
Channel’ option, the RTA source is shown at the top right.
• If the RTA for a different channel is displayed because it has been selected by
SQ-MixPad, the RTA source is shown at the top right with a ‘!’ prefix and the RTA
meters will not be visible.
• The most prominent frequency is shown in red.
• Stereo sources display metering for L+R.
Source = Selected Channel or Fixed Channel.
Follow this device = When enabled, selecting a channel on this device will also
select the Channel RTA source
Fixed Channel selection = Any input or mix channel.
Trim = Raise or lower the metering level.
Opacity = Adjusts the opacity of the RTA metering
Average Slow to Fast = Adjusts the effective number of samples used by
the average (bar) meters.
Max/Peak Slow to Fast = Adjusts the effective number of samples used by
the max/peak indicators.
Max-Off-Peak = Max displays the higher of either average or peak, Peak
always displays peak (which may be lower than the average meters).
LF Damping = When enabled, response is gradually dampened towards the
lowest frequency band, to better represent LF output energy.
prominent frequency
RTA settings
on/off

ALLEN & HEATH SQ-5 Specifications

General

Mixing Channels	48
Local Mic/Line Inputs	16
USB Interface	Yes
Type	Digital Mixer
Inputs - Mic Preamps	16
Inputs - Line	16
Talkback	Yes
EQ Bands	4-band Parametric
I/O Expansion Slots	1
Effects Processors	8
Power Supply	Internal
Local Line Outputs	8
Touchscreen	7-inch Capacitive Touchscreen
Dante Option	Yes (with optional card)
Weight	10.5 kg
Effects	8 Stereo FX Engines
Data I/O	Ethernet
Computer Connectivity	USB, Ethernet
Faders	16
A/D Resolution	96kHz / 48kHz
Processing	96kHz
Connectivity	USB, Ethernet
USB Audio	32 x 32
Expansion	Optional Dante, Waves, SLink cards
Display	7-inch Capacitive Touchscreen
