28 Rockwell Automation Publication 193-UM014C-EN-P - August 2016
Chapter 2 Configure the EtherNet/IP Communication Auxiliary Module

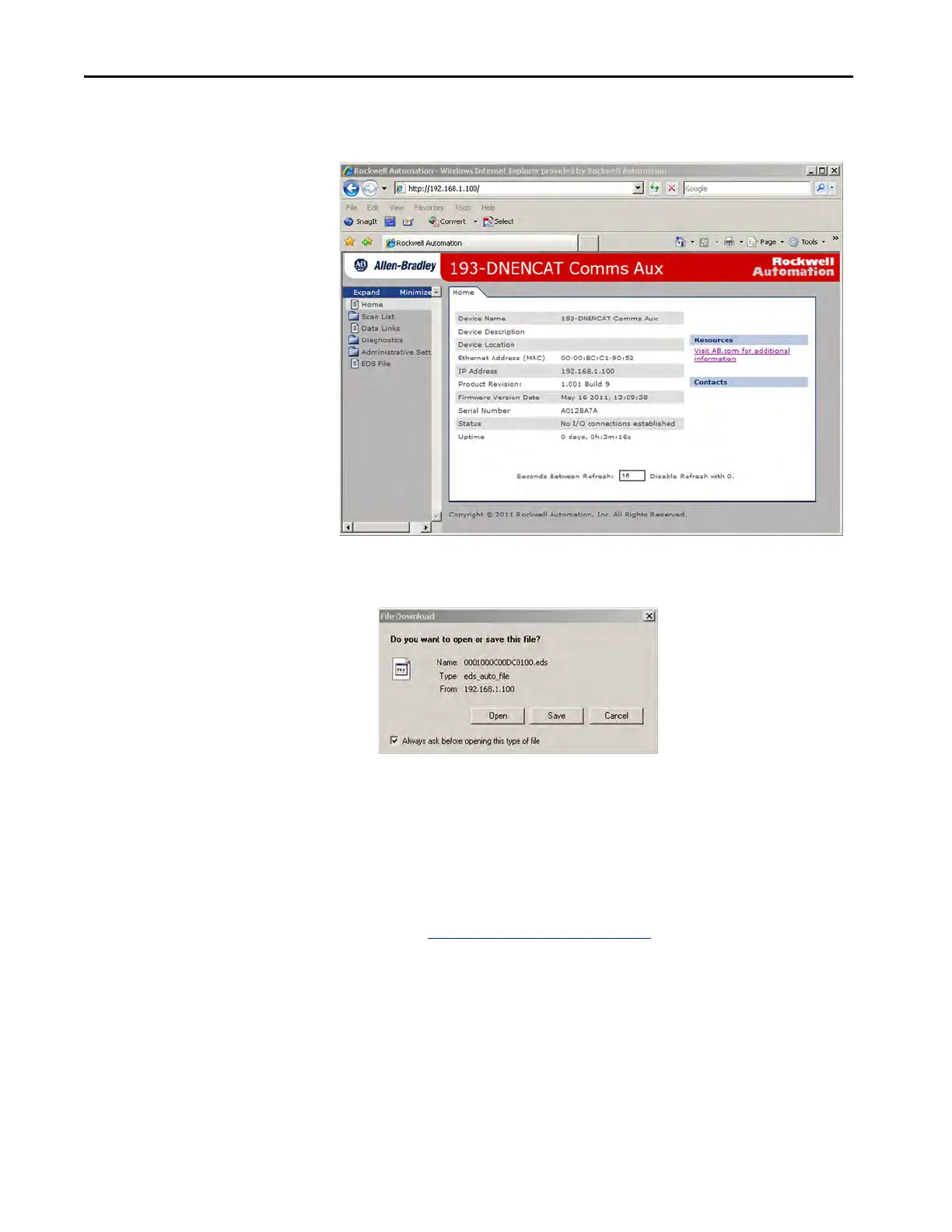

1. Type the IP address of the EtherNet/IP communication auxiliary
module on the address line of the web browser.
2. Select EDS File link
3. Click Save to save the EDS file to the personal computer.
From the EDS File Download Site
The EDS file for the EtherNet/IP communication auxiliary module can also be
downloaded from the Allen-Bradley EDS File download site. Using a web
browser on the personal computer that is connected to the internet, you can
download the EDS file by following these steps:
1. Type http://www.ab.com/networks/eds
on the address line of the web
browser.
