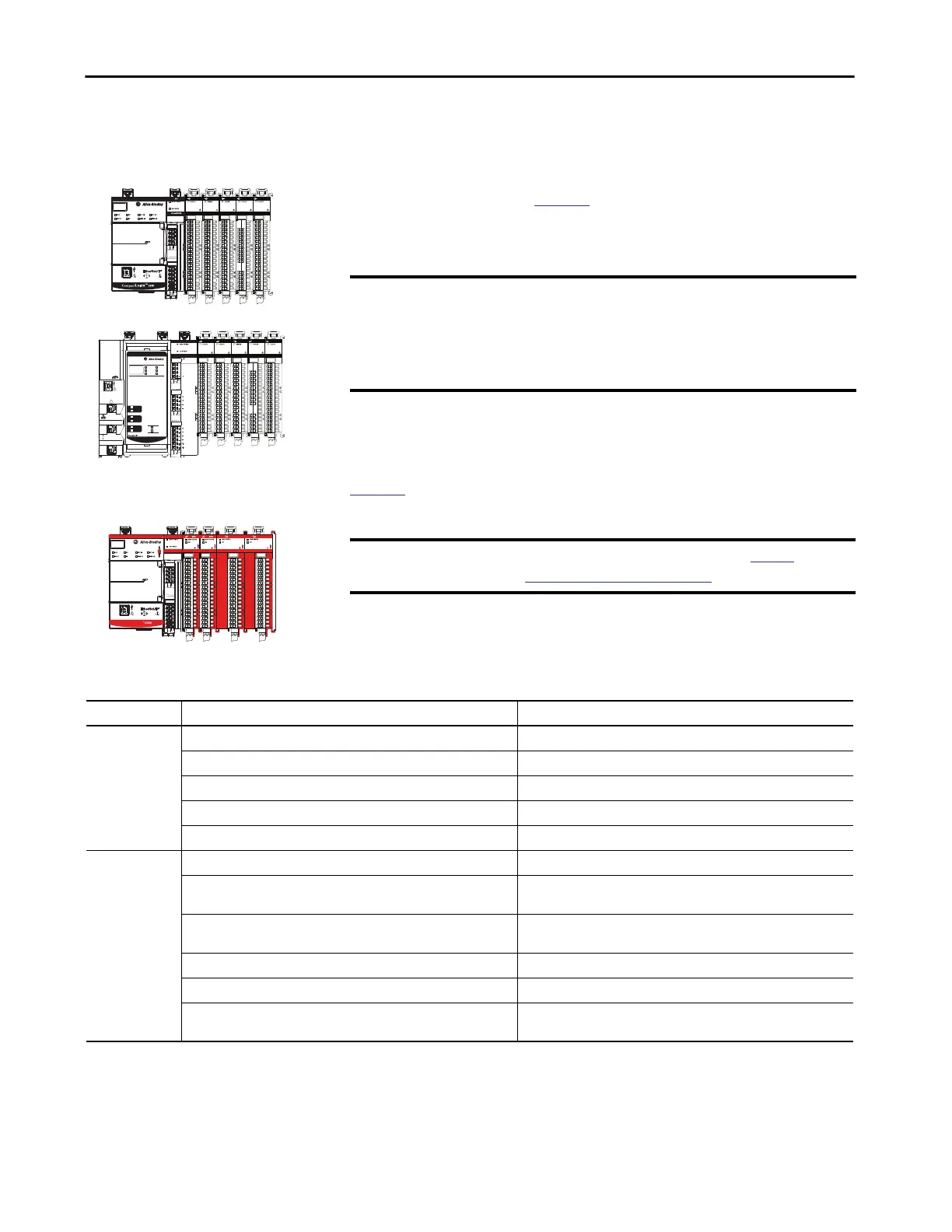

Output Module Features Chapter 4
Fault and Status Reporting
The output modules multicast fault and status data with channel data to the
owner and listening controllers. The data is returned via module s that you can
monitor in your Logix Designer application.
Not all tags that are listed in
Table 38 apply to all Compact 5000 I/O digital
output modules. For example, the 5069-OB8 module uses the Ptxx.NoLoad
tag. The 5069-OW4I module does not.
Compact 5000 I/O Standard Output Modules
Table 38 lists tags that are used on Compact 5000 I/O standard output
modules.
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
IMPORTANT For the 5069-OB16, 5069-OB16F, and 5069-OB16K output modules only, an
output must remain in the on state for a minimum of 250 ms for an overload
or short circuit to be detected. However, if a short circuit condition exists
long term, it is detected as long as the output is switching at a rate no faster
than 1 ms.
IMPORTANT For more information on the valid values for each tag in
Table 38, see
Appendix B,
Module Tag Definitions on page 231.
Table 38 - Compact 5000 I/O Standard Output Modules - Fault and Data Status
Data Type Tag Name Triggering Event That Sets
Fault
ConnectionFaulted
(1)
The owner-controller loses its connection to the module.
Ptxx.Fault The point data quality is bad.
Ptxx.NoLoad A no load condition exists on the point.
Ptxx.ShortCircuit A short circuit condition exists on the point.
Ptxx.FieldPowerOff A field power lost condition exists on the point.
Status
RunMode The module is in Run Mode.
DiagnosticActive Indicates if any diagnostics are active or if the prognostics threshold is
reached.
DiagnosticSequenceCount The count increments each time that a diagnostic condition is detected
or removed.
Ptxx.Data The point input status is 0 or 1.
Ptxx.Uncertain The point data can be imperfect.
Uncertain
(2)
The module is operating outside its designed operating range if data is
under manual or override control.
(1) This tag provides module-wide data an affects all channels simultaneously.
