Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 203

Configure and Replace Safety Modules Chapter 7

Edit the 5069-IB8S and

5069-IB8SK Module

Configuration Categories

The following categories are available when you configure a 5069-IB8S or

5069-IB8SK module:

•

Input Points Category

•

Test Output Points Category

Input Points Category

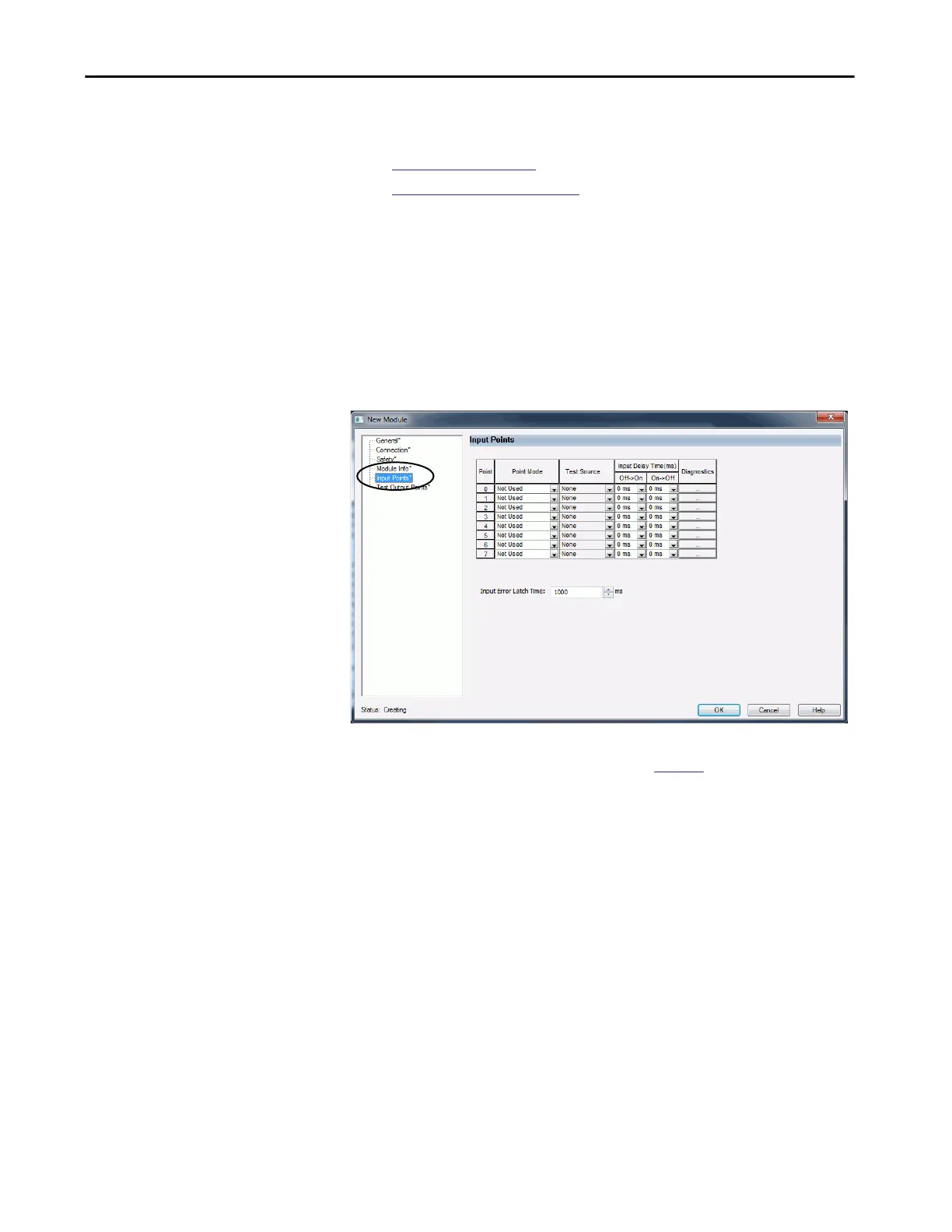

The Input Points category is only available if you choose This Controller for

the Configured By parameter on the Module Definition dialog box.

You must configure each point to use it in a Safety application. The inputs are

disabled by default.

For more information on input delay times, see

page 84.
