Digital Module Operation in a Control System Chapter 1
Remote I/O Modules
When Compact 5000 I/O digital modules reside in a separate location from
Logix 5000 controllers, they are remote I/O modules. Remote Compact 5000
I/O digital modules are accessible over an EtherNet/IP™ network via a
Compact 5000 I/O EtherNet/IP adapter.
The modules are installed to the right of the adapter and exchange data across
the remote system backplane. The data is then exchanged with the controller
over the EtherNet/IP network.
Figure 3 shows remote Compact 5000 I/O standard modules in an example
CompactLogix 5380 control system.

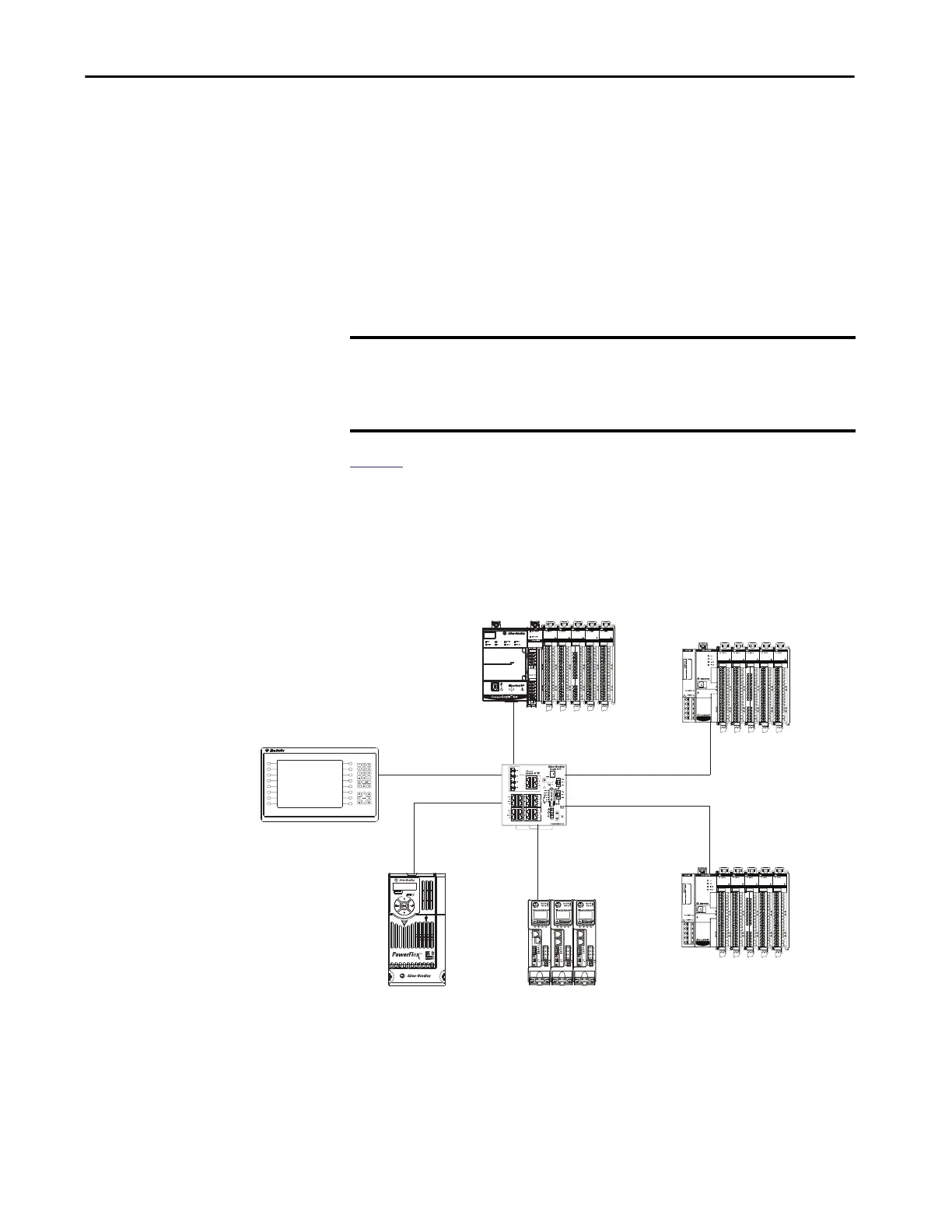

Figure 3 - Remote Compact 5000 I/O Standard Modules in a CompactLogix 5380
Control Applications
IMPORTANT Remember, some restrictions apply when you use the I/O modules remotely.
For example, you can use Compact 5000 I/O safety modules as remote I/O
modules only in Compact GuardLogix 5380 or GuardLogix 5380 control
systems.
527
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
COUNTER
5069-HSC2xOB4
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
COUNTER
5069-HSC2xOB4
Compact 5000™ I/O
2
1
Compact 5000™ I/O
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
COUNTER
5069-HSC2xOB4
Compact 5000™ I/O
2
1
Compact 5000™ I/O
CompactLogix 5380 Controller
Compact 5000 I/O Standard Modules
Compact 5000 I/O EtherNet/IP Adapter
Compact 5000 I/O Standard Modules
PanelView™ Plus 7 Terminal
Stratix® 5400 Switch
PowerFlex® 527 Drive Kinetix® 5500 Drive
Compact 5000 I/O EtherNet/IP Adapter
Compact 5000 I/O Standard Modules
