Chapter 1 Digital Module Operation in a Control System
Controller and Software
Compatibility
Controller and programming software compatibility requirements apply when
you use Compact 5000 I/O digital modules. A module type and how it is used
affect which requirements apply.
You must also consider Logix Designer application version requirements when
you design your system. For example, you can use safety modules only with the
Logix Designer application, version 32 or greater.
Controller Compatibility
Compatibility between Logix 5000 controllers and Compact 5000 I/O digital
modules varies based on module type and location. That is, whether the
module is standard or safety and whether it is local or remote.

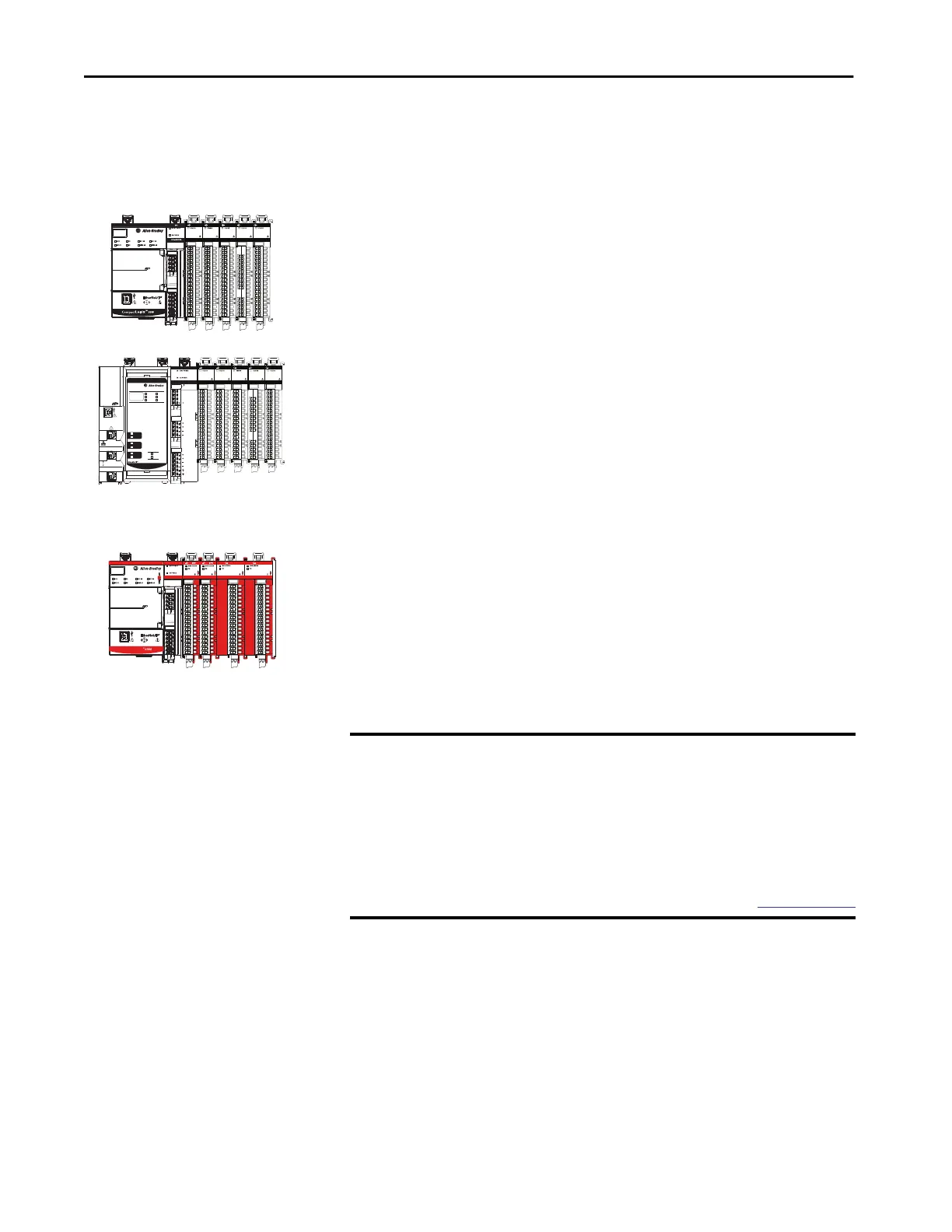

For example, CompactLogix™ 5380 and CompactLogix 5480 controllers are
compatible with local or remote Compact 5000 I/O standard modules.
Compact GuardLogix® 5380 controllers are compatible with local or remote
Compact 5000 I/O digital modules.
Software Compatibility
Compact 5000 I/O digital modules are supported in different minimum
versions of the Logix Designer application.
For example, Compact 5000 I/O standard modules support the Logix
Designer application, version 28 or later. Compact 5000 I/O safety modules
support the Logix Designer application, version 32 or later.
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
IMPORTANT Logix 5000 controllers support different minimum versions of Logix Designer
application. You must consider the different device requirements when you
design your system.
For example, to use a 5069-IB16 input module with a 5069-L330ERM
controller, you can use the Logix Designer application, version 29 or later.
However, to use a 5069-IB16 input module with a 5069-L350ERM controller,
you can use the Logix Designer application, version 30 or later.
For more information on compatibility requirements, see
Table 3 on page 19
