Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 77
Features Common to Compact 5000 I/O Digital Modules Chapter 2
Use CIP Sync Time with Fast
I/O Modules
The following Compact 5000 I/O standard modules use CIP Sync™ for time
stamps and scheduling:
• 5069-IB16F
• 5069-IB6F-3W
• 5069-OB16F
CIP Sync is a CIP™ implementation of the IEEE 1588 PTP (Precision Time
Protocol). CIP Sync provides accurate real-time (Real-World Time) or
Universal Coordinated Time (UTC) synchronization of controllers and
devices that are connected over CIP networks. This technology supports
highly distributed applications that require timestamping, sequence of events
recording, distributed motion control, and increased control coordination.
The 5069-IB16F, 5069-IB6F-3W, and 5069-OB16F modules are CIP Sync
slave-only devices. There must be another module on the network that
functions as a master clock. For more information on how to use CIP Sync
technology, see the Integrated Architecture® System and CIP Sync
Configuration Application Technique, publication
IA-AT003.
You can use fast Compact 5000 I/O digital modules to capture time stamps
and schedule outputs while providing the following advances:
• Fast I/O modules have much higher precision than other modules.
• Inputs are timestamped by point, so multiple inputs can be configured
for COS without losing time stamp data.
• CIP Sync is system-wide, so time stamp and schedule values are
consistent across all modules in the system.
For example, if you use time stamps on a 5069-IB16F module to
schedule outputs on a 5069-OB16F module, the controller, input
module, and output module are not required to reside in the same local
system. The I/O modules can reside in a remote I/O system.
• Output modules use all 64 bits of the time stamp to schedule, so there
are no limits on schedule ranges.

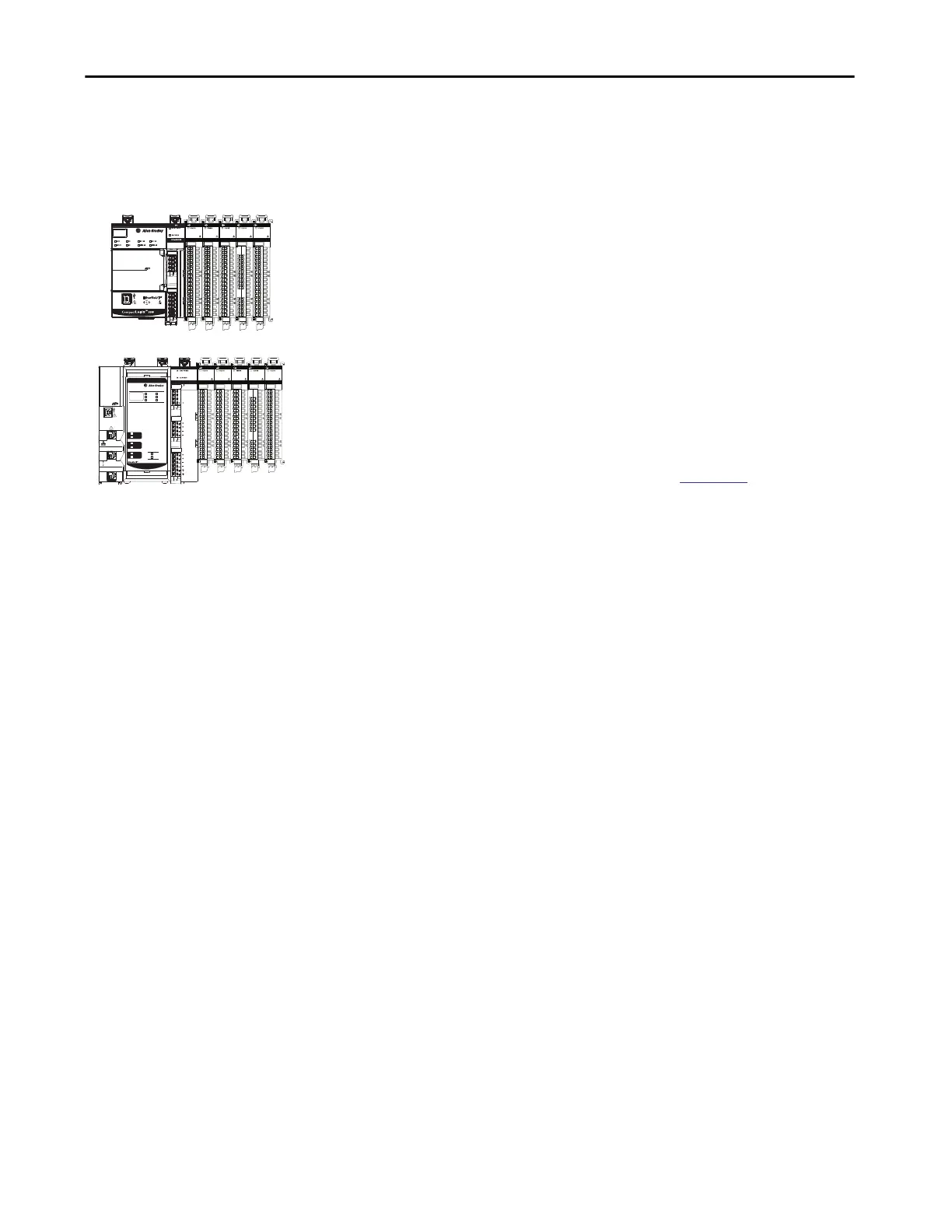

DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
