Chapter 4 Connect the Kinetix 350 Drive System
Wiring the Kinetix 350 Drive
Connectors
This section provides examples and wiring tables to assist you when you make
connections to the Kinetix 350 drive.
Wire the Safe Torque-off (STO) Connector
For the safe torque-off (STO) connector pinouts, feature descriptions, and
wiring information, see Chapter 6
on page 101.
Wire the Back-up Power (BP) Connector

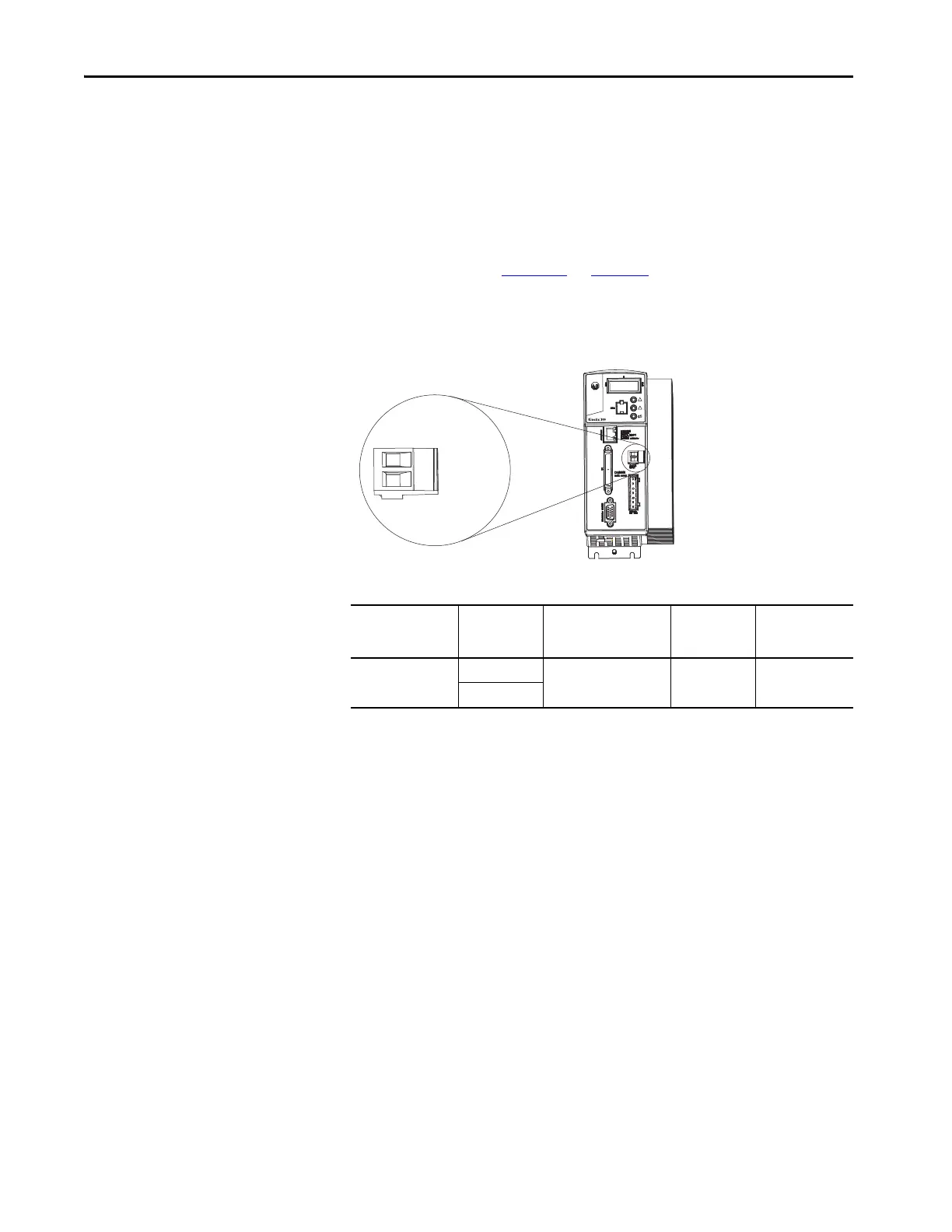

Table 25 - Back-up Power (BP) Connector
+
24
-
+24V DC
-24V DC
Kinetix 350 Drive, Front View
Drive Cat. No. Terminals
Recommended
Wire Size
mm² (AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2097-V3xPRx-LM
+24V DC
1.5 (16) 6 (0.25) 0.5 (4.5)
-24V DC
