Allen-Bradley Kinetix 350 - Power Wiring Examples

Rockwell Automation Publication 2097-UM002D-EN-P - April 2017 131
Interconnect Diagrams Appendix A
Power Wiring Examples
You must supply input power components. The single-phase and three-phase
line filters are wired downstream of fusing and the M1 contactor.
In this example, the 2097-V31PRx-LM drives are wired to use the voltage
doubling circuit. The 120V input voltage provides 240V output to motors.
The 2097-V33PRx-LM drives are wired for single-phase 120V operation.

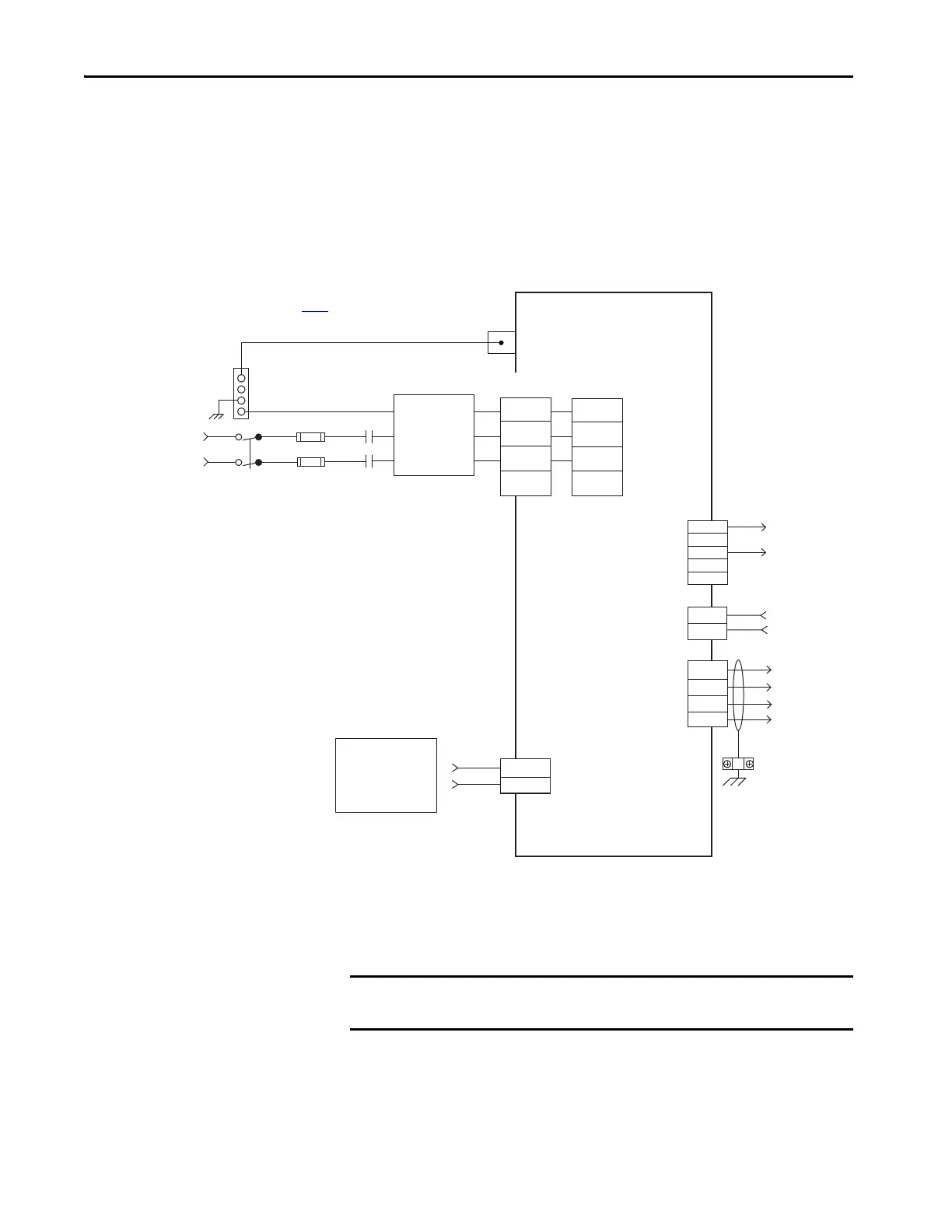

Figure 57 - Kinetix 350 Drive (120V Single-phase Input Power)
In this example, single-phase 240V AC is applied to 2097-V31PRx-LM and
2097-V32PRx-LM drives.
PE
N
L1
+24V DC
+
+
SH
-
-
EN
ACOM
L1
L2/N
29
26
U
V
W
PE
L2/N
PE
L2
L3
L1
-24V DC
Single-phase AC Input
120V rms AC, 50/60 Hz
Notes 1, 2
Bonded Cabinet
Ground Bus *
Ground Stud
Mains
Single-phase
AC Input
(IPD)
Connector
Fuse Disconnect
or Circuit Breakers
Input Fusing *
M1 *
Notes 5, 7
Use discrete logic or PLC
to control ENABLE to
drive.
Shunt Resistor
and DC Bus
(BC) Connector
Motor Power
(MP) Connector
I/O (IOD)
Connector
Note 4
Back-up Power
(BP) Connecto
r
2097-V31PRx -LM and
2097-V33PRx-LM
Kinetix 350 Drives
* Indicates User Supplied Component
See table on page 130
for note information.
AC Line Filter
(Optional)
Note 3
Three-phase
Motor Power
Connections
Note 9
Cable Shield
Clamp
Note 8
Shunt Resistor
Connections
User-supplied
+24V DC
2097-V31PRx-LM
2097-V33PRx-LM
IMPORTANT The 2097-V32PRx-LM models have integrated AC line filters and do not
require the AC line filter that is shown in this diagram.
