Allen-Bradley Kinetix 350 User Manual

Rockwell Automation Publication 2097-UM002D-EN-P - April 2017 49
Kinetix 350 Drive Connector Data Chapter 3
Feedback Power Supply
The Kinetix 350 drive generates +5V and +9V DC for motor feedback power.
Short circuit protection and separate common mode filtering for each channel
is included.
Table 23 - Motor Feedback Power Specifications

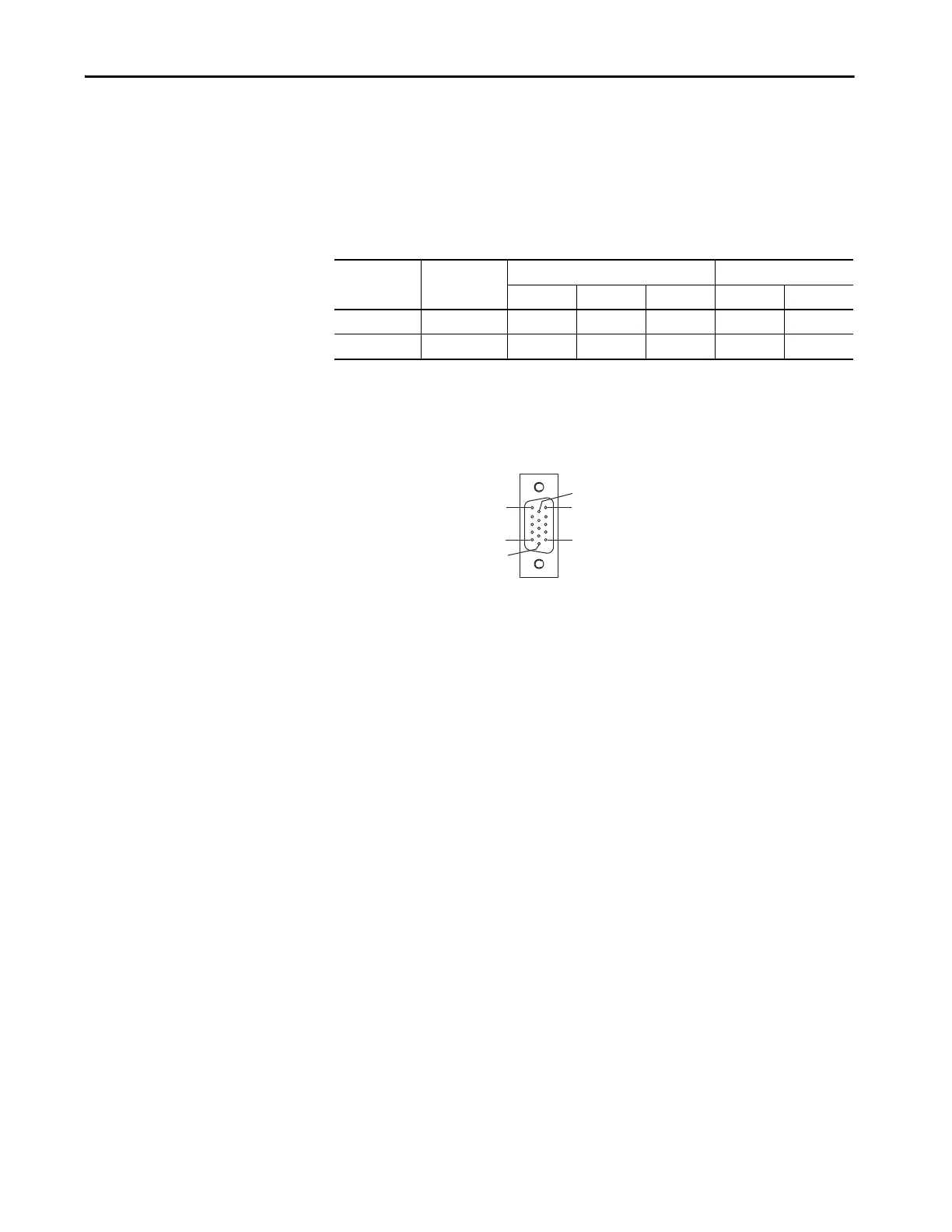

Figure 26 - Pin Orientation for 15-pin Motor Feedback (MF) Connector
Supply Reference
Voltage Current mA
Min Nominal Max Min Max
+5V DC EPWR_5V 5.13 5.4 5.67 0 400
(1) (2)
+9V DC EPWR_9V 8.3 9.1 9.9 0 275
(2) (3)
(1) 400 mA on the 5V supply with no load on the 9V supply.
(2) 300 mA on the 5V supply with 150 mA on the 9V supply.
(3) 275 mA on the 9V supply with no load on the 5V supply.
Pin 11
Pin 6
Pin 15
Pin 1
Pin 10
Pin 5
