Publication 1763-RM001C-EN-P - October 2009
334 ASCII Instructions
Example
Error Conditions
The following conditions cause the controller to set the ASCII Error bit
(S:5/15).
• Source string length is less than 1 or greater than 82.
• Index value is less than 1 or greater than 82.
• Index value is greater than Source string length.
The destination is not changed in any of the above conditions. When the
ASCII String Manipulation Error bit (S:5/15) is set, the Invalid String Length
Error (1F39H) is written to the Major Error Fault Code word (S:6).
ASR - ASCII String
Compare
Instruction Type: input
Use the ASR instruction to compare two ASCII strings. The controller
looks for a match in length and upper/lower case characters. If two
strings are identical, the rung is true; if there are any differences, the rung
is false.
Entering Parameters
Enter the following parameters when programming this instruction:
• Source A is the location of the first string used for comparison.
• Source B is the location of the second string used for comparison.

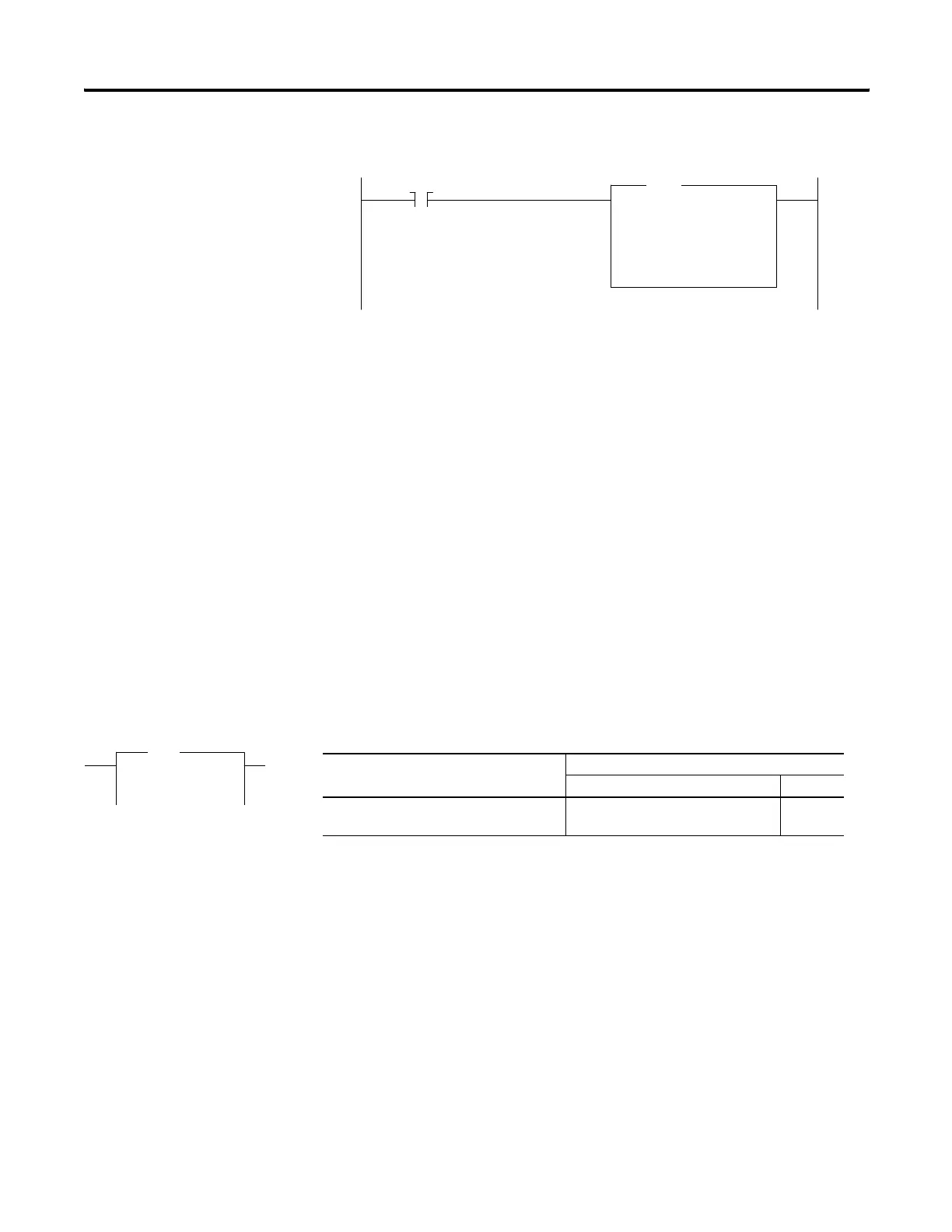

I:1
10
ASC
String Search
Source ST38:40
Index 35
String Search ST52:80
Result N10:0
ASC
If input slot 1, bit 10 is set, search the string
in ST52:80 starting at the 36th character, for
the string found in ST38:40. In this example,
the position result is stored in N10:0.
ASR
ASCII String Compare
Source A ST10:8
Source B ST10:9
ASR
Execution Time for the ASR Instruction
Controller When Instruction Is:
True False
MicroLogix 1100 27.27 μs + 0.65 μs/matching
character
0.9 μs
