Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009
Using Interrupts 273
Each EII can be configured to monitor any one of the first eight inputs
(I1:0.0/0 to I1:0.0/7). Each EII can be configured to detect rising edge or
falling edge input signals. When the configured input signal is detected at
the input terminal, the controller immediately scans the configured
subroutine.

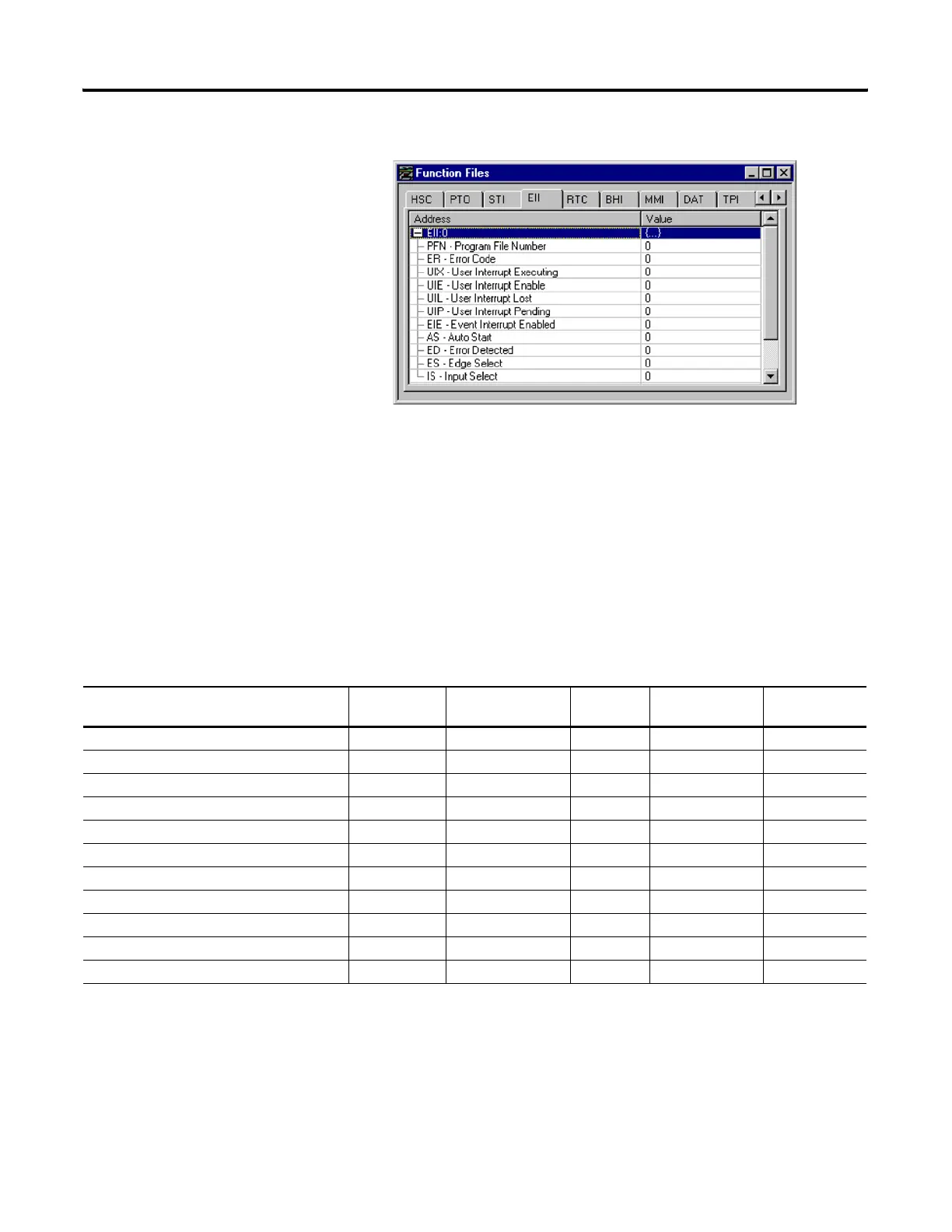

Event Input Interrupt (EII) Function File Sub-Elements Summary
Event Input Interrupt Function File (EII:0)
Sub-Element Description Address Data Format Type User Program
Access
For More
Information
PFN - Program File Number EII:0.PFN word (INT) control read only 274
ER - Error Code EII:0.ER word (INT) status read only 274
UIX - User Interrupt Executing EII:0/UIX binary (bit) status read only 275
UIE - User Interrupt Enable EII:0/UIE binary (bit) control read/write 275
UIL - User Interrupt Lost EII:0/UIL binary (bit) status read/write 275
UIP - User Interrupt Pending EII:0/UIP binary (bit) status read only 276
EIE - Event Interrupt Enabled EII:0/EIE binary (bit) control read/write 276
AS - Auto Start EII:0/AS binary (bit) control read only 276
ED - Error Detected EII:0/ED binary (bit) status read only 277
ES - Edge Select EII:0/ES binary (bit) control read only 277
IS - Input Select EII:0.IS word (INT) control read only 277
