Publication 1763-RM001B-EN-P - April 2007

422 Communications Instructions

Configure MSG Setup

Screen to send SMTP

message

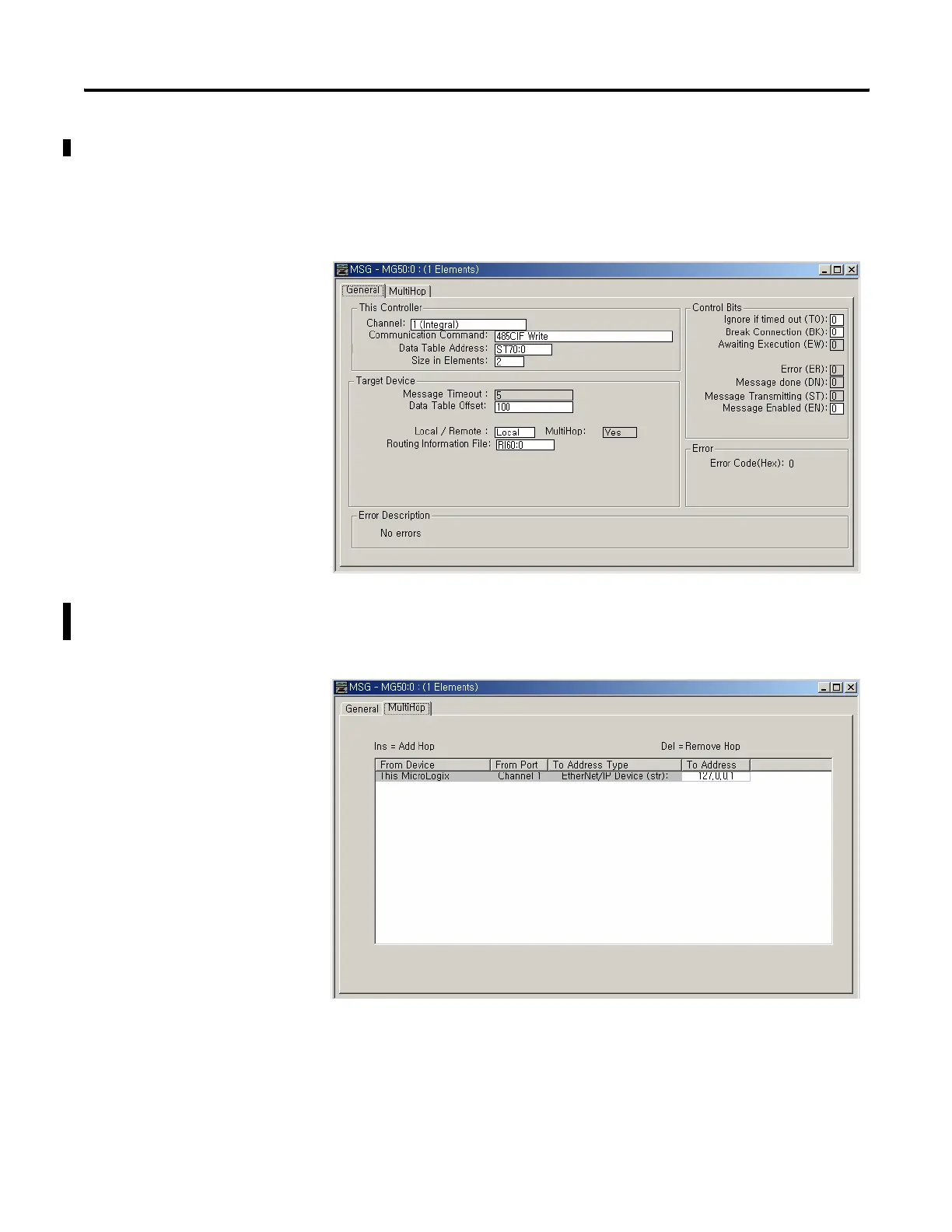

The picture below provides an example of how the MSG Instruction

would be configured to be used to send SMTP message.

General MSG Setup Screen for SMTP messaging

The picture below shows MultiHop setup screen and configured e-mail

subject and Body using ST file.

MultiHop Setup Screen for SMTP messaging
