Publication 1763-RM001B-EN-P - April 2007
Communications Instructions 385

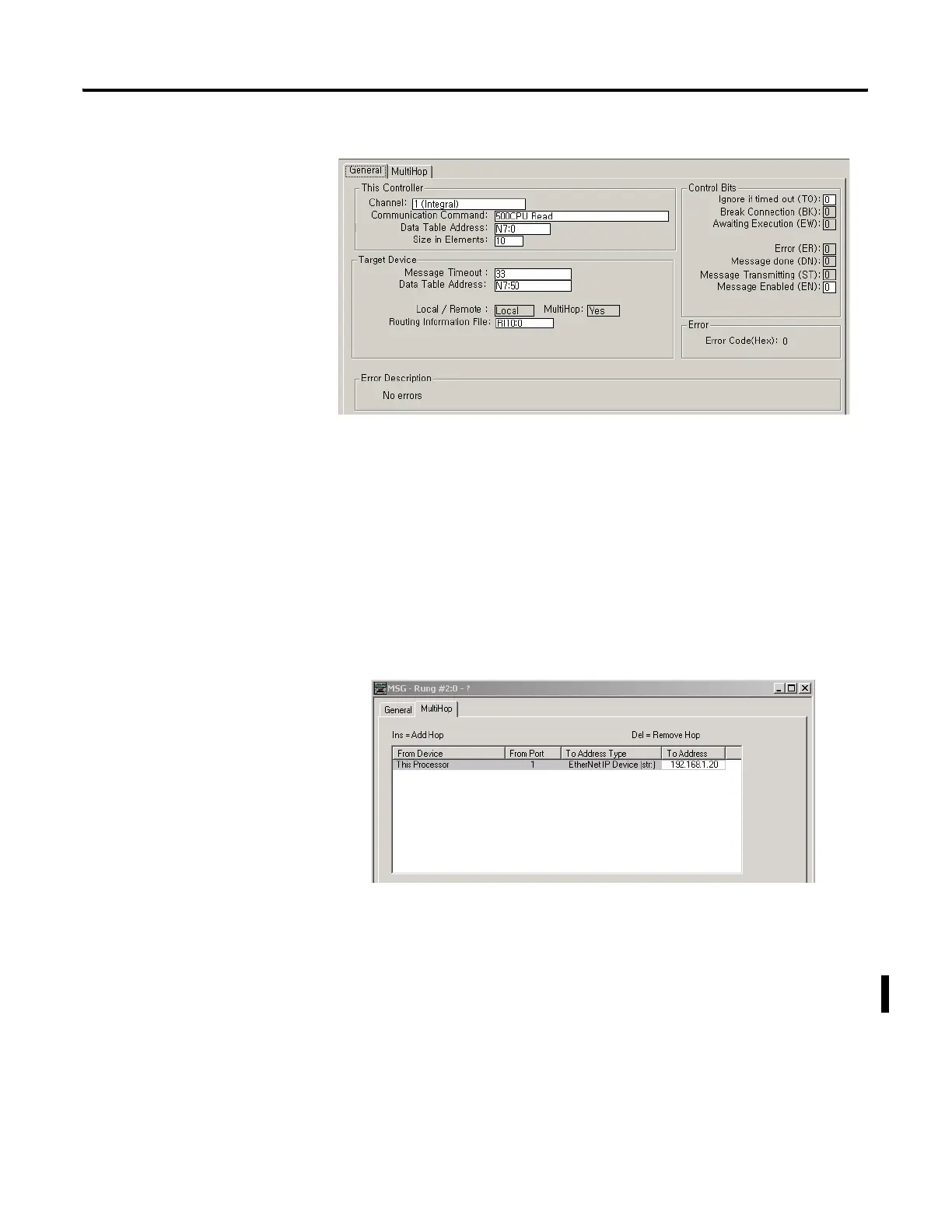

In this example, the controller reads 10 elements from the target's N7 file,
starting at word N7:50 using 500CPU Read command. The 10 words are
placed in the controller's integer file starting at word N7:0. If 33 seconds
elapse before the message completes, error bit MG11:0/ER is set,
indicating that the message timed out.
If the target device is another MicroLogix 1100, a SLC 5/05, a PLC-5E or a
controller connected to Ethernet via a 1761-NET-ENI, then simply enter in
the device’s IP address in the “To Address” column as shown below under
the MultiHop tab.
For more information on routing through a ControlLogix gateway, refer to
Configuring a Multi-hop Remote Message on EtherNet/IP Communication
Channel on page 394.
If the target device is a ControlLogix, FlexLogix or CompactLogix
controller with an Ethernet interface, then enter in the interface’s IP
address in the first row of the “To Address” column, press the computer’s
Insert key to add a hop. Select ControlLogix Backplane and enter in the
