Publication 1763-RM001C-EN-P - October 2009

Controller Memory and File Types 39

Viewing Controller Memory Usage

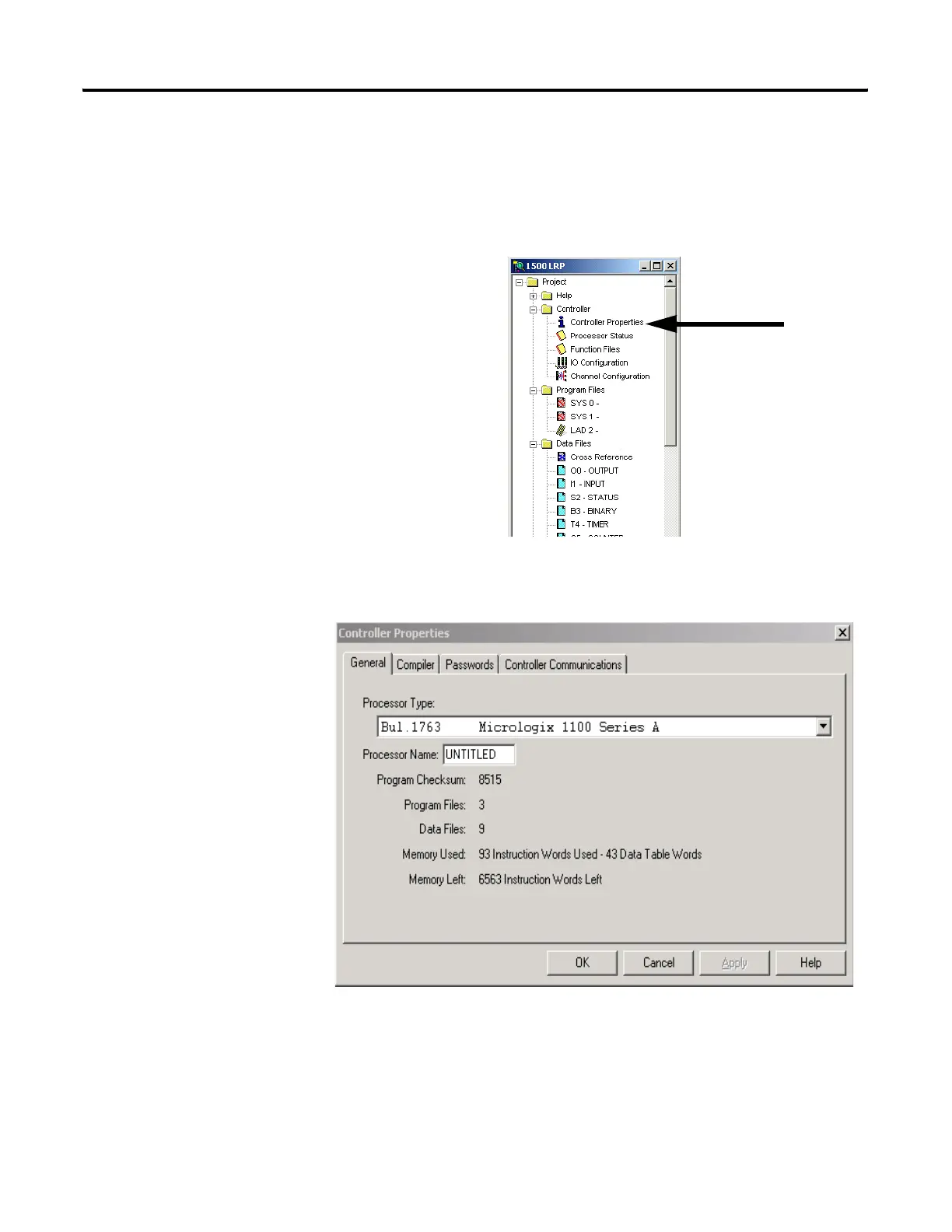

1. Highlight and open Controller Properties.

2. The amount of Memory Used and Memory Left will appear in the

Controller Properties window once the program has been verified.
