Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001B-EN-P - April 2007
Communications Instructions 395

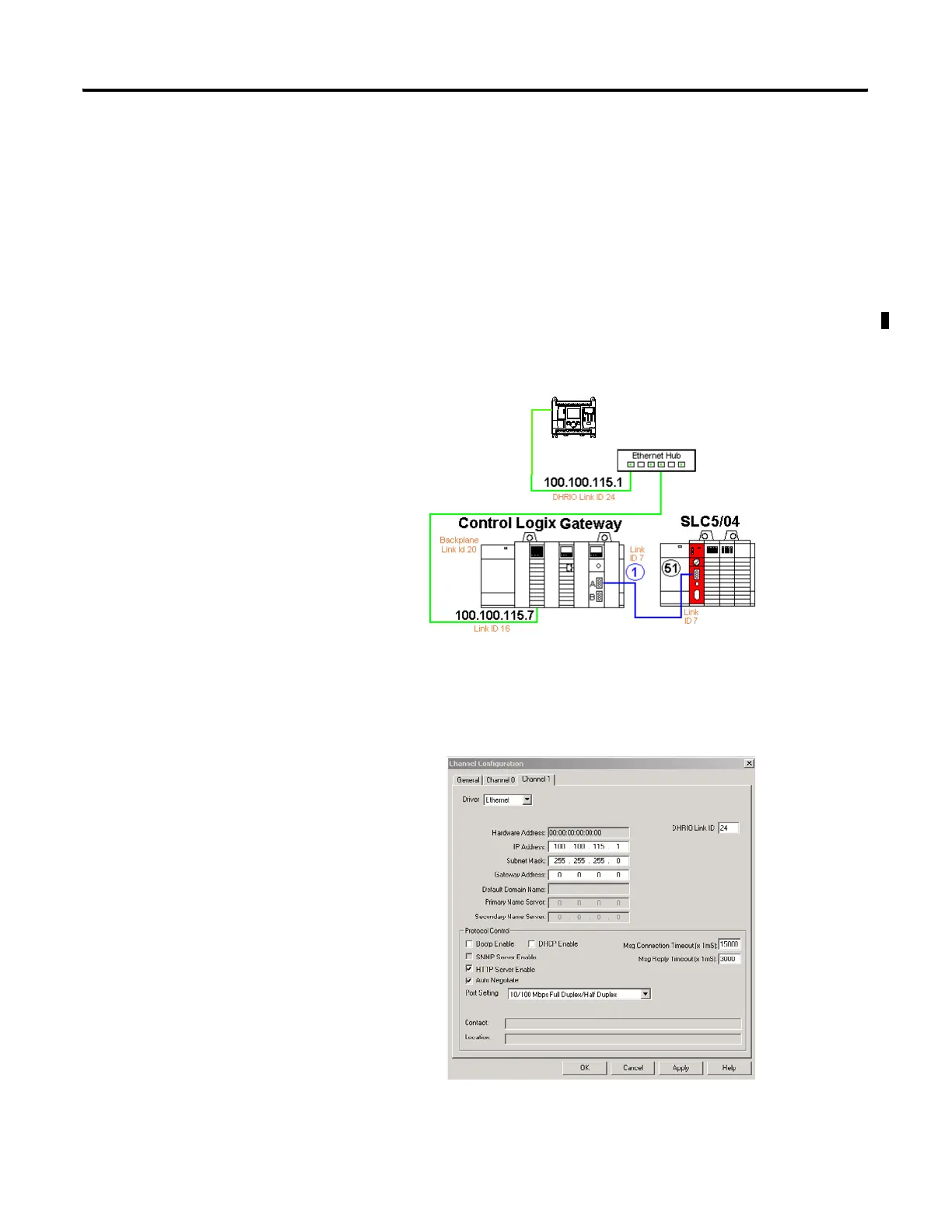

Network Message Example 1:
MicroLogix 1100 Ethernet to SLC5/04 DH+ via ENET & DHRIO
The following illustrates the MicroLogix 1100 (CH1 Ethernet) sending a
remote message to a SLC5/04 processor (DH+ Node 51). The remote
message will s an ENET module, a ControlLogix chassis (Gateway) and a
DHRIO module. In order for the message to pass through the network, a
MultiHop MSG must be setup and a DHRIO Routing table must exist.
Belden 9463 "Blue Hose" cable is used to connect the DH+ devices on the
network. Ethernet cable and an Ethernet hub are used to connect the
ENET module and the MicroLogix 1100 CH1 Ethernet ports together.
MicroLogix 1100 CH1 Configuration
MicroLogix 1100
