526 Protocol Configuration
The Baud defaults to 19200.
The Control Line can be configured as:
• No Handshaking
• Full-Duplex Modem (RTS on)
• Half-Duplex Modem (RTS/CTS handshaking).
• No Handshaking (485 Network)
The Protocol Control defaults are:
• No Handshaking
• InterChar. Timeout = 0
• Pre Transmit Delay = 0.

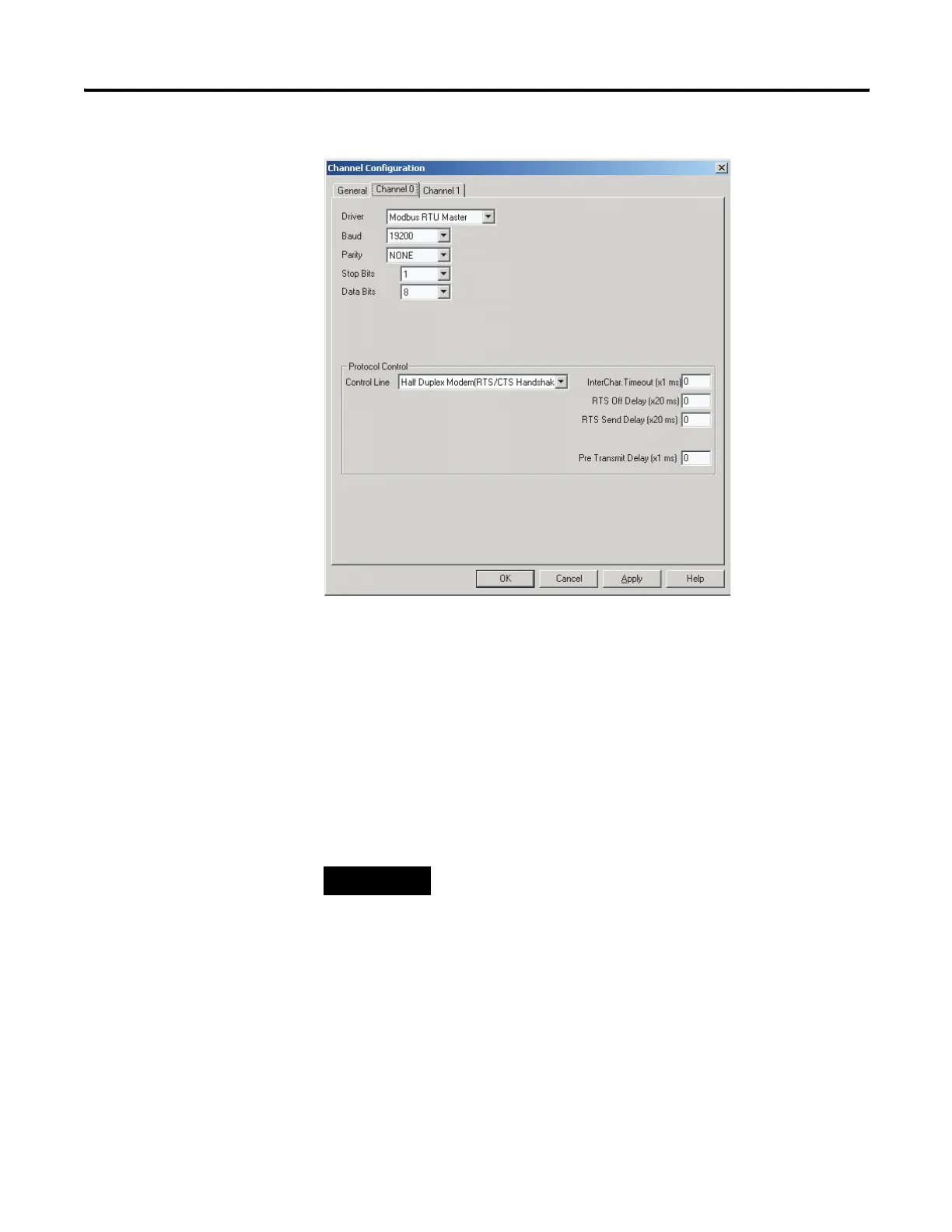

When the system driver is Modbus RTU Master, the following
communication port parameters can be changed:
NOTE
In order to connect directly to an RS-485 Modbus
network, use a 1763-NC01 cable and configure the
Control Line setting for No Handshaking (485 network).
