Publication 1763-RM001C-EN-P - October 2009

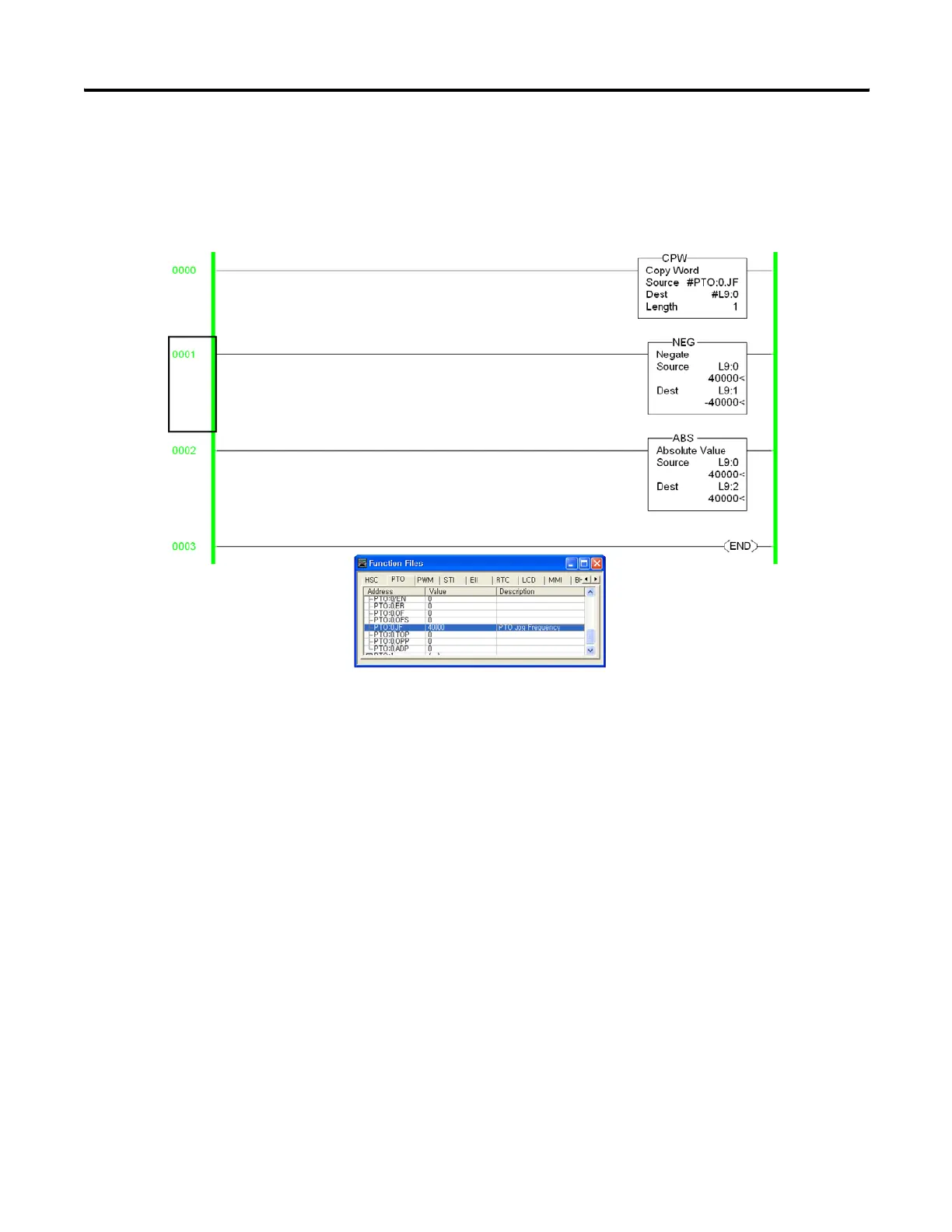

578 How to Use 40kHz PTO/PWM of MicroLogix 1100 Series B Controller

To solve this issue, JF, OF, OFS of PTO/PWM type should be changed to

Long Type (32-bit) by CPW instruction before the execution of these

instructions as shown below.
