Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009
62 Function Files

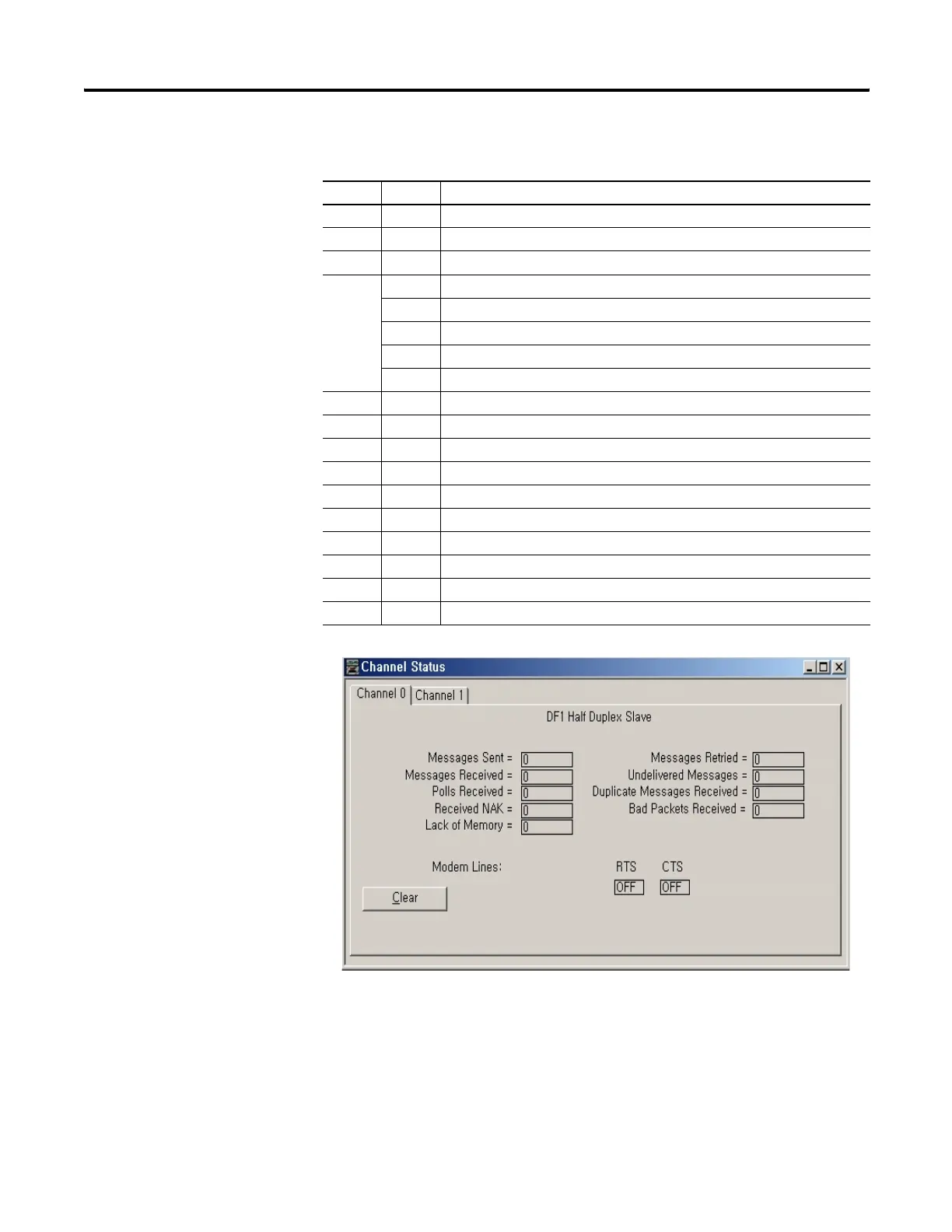

DF1 Half-Duplex Slave Diagnostic Counters Block
Word Bit Description
6 - Diagnostic Counters Category Identifier Code (always 2)
7 - Length (always 30)
8 - Format Code (always 2)
90CTS
1RTS
2 Reserved
3 Reserved
4 to 15 Reserved
10 - Total Message Packets Sent
11 - Total Message Packets Received
12 - Undelivered Message Packets
13 - Message Packets Retried
14 - NAK Packets Received
15 - Polls Received
16 - Bad Message Packets Received
17 - No Buffer Space
18 - Duplicate Message Packets Received
19 to 22 - Reserved
