Publication 1763-RM001C-EN-P - October 2009

64 Function Files

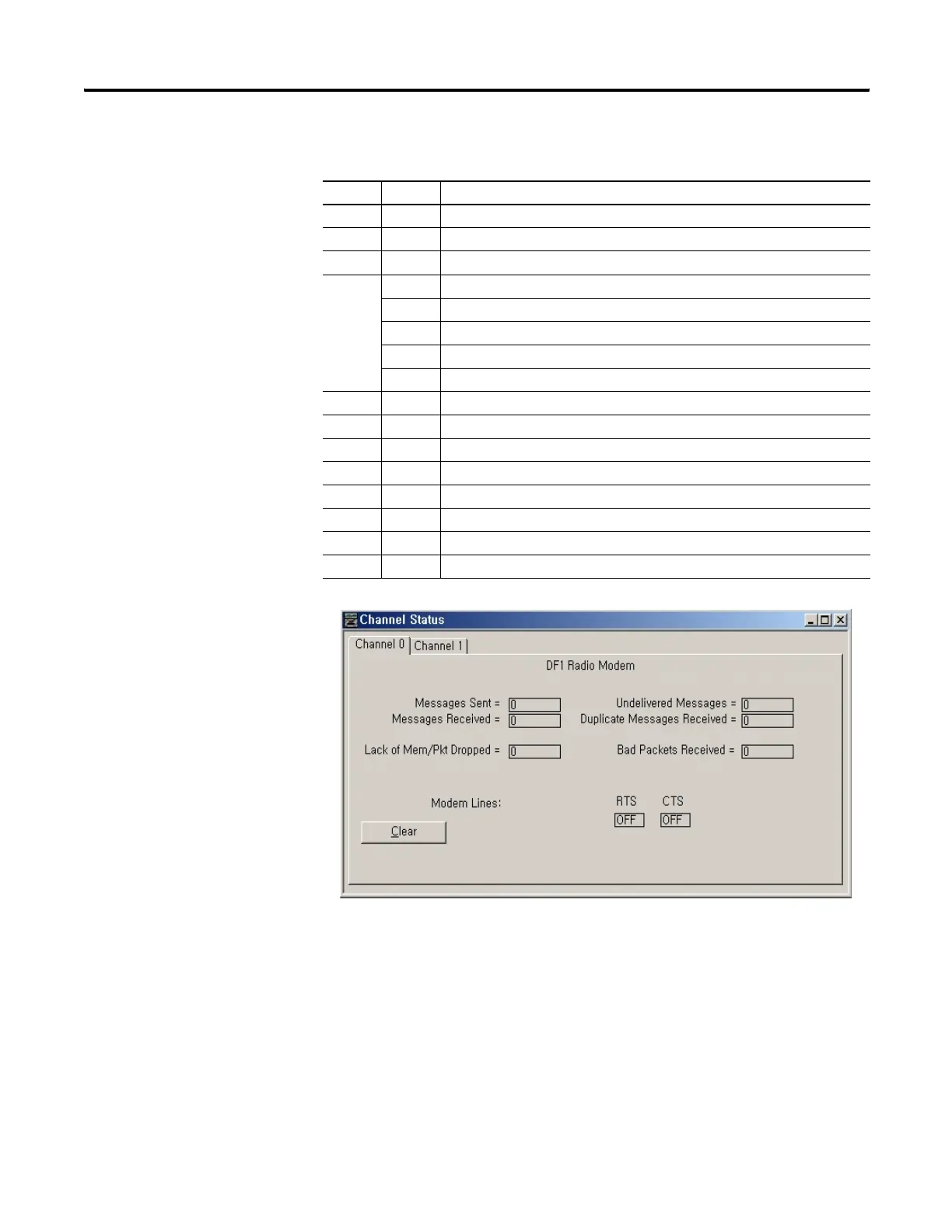

DF1 Radio Modem Diagnostic Counters Block

Word Bit Description

6 - Diagnostic Counters Category Identifier Code (always 2)

7 - Length (always 30)

8 - Format Code (always 1)

90CTS

1RTS

2 Reserved

3 Reserved

4 to 15 Reserved

10 - Total Message Packets Sent

11 - Total Message Packets Received

12 - Undelivered Message Packets

13 to 15 - Reserved

16 - Bad Message Packets Received

17 - No Buffer Space, Received Packet Dropped

18 - Duplicate Message Packets Received

19 to 22 - Reserved
