23

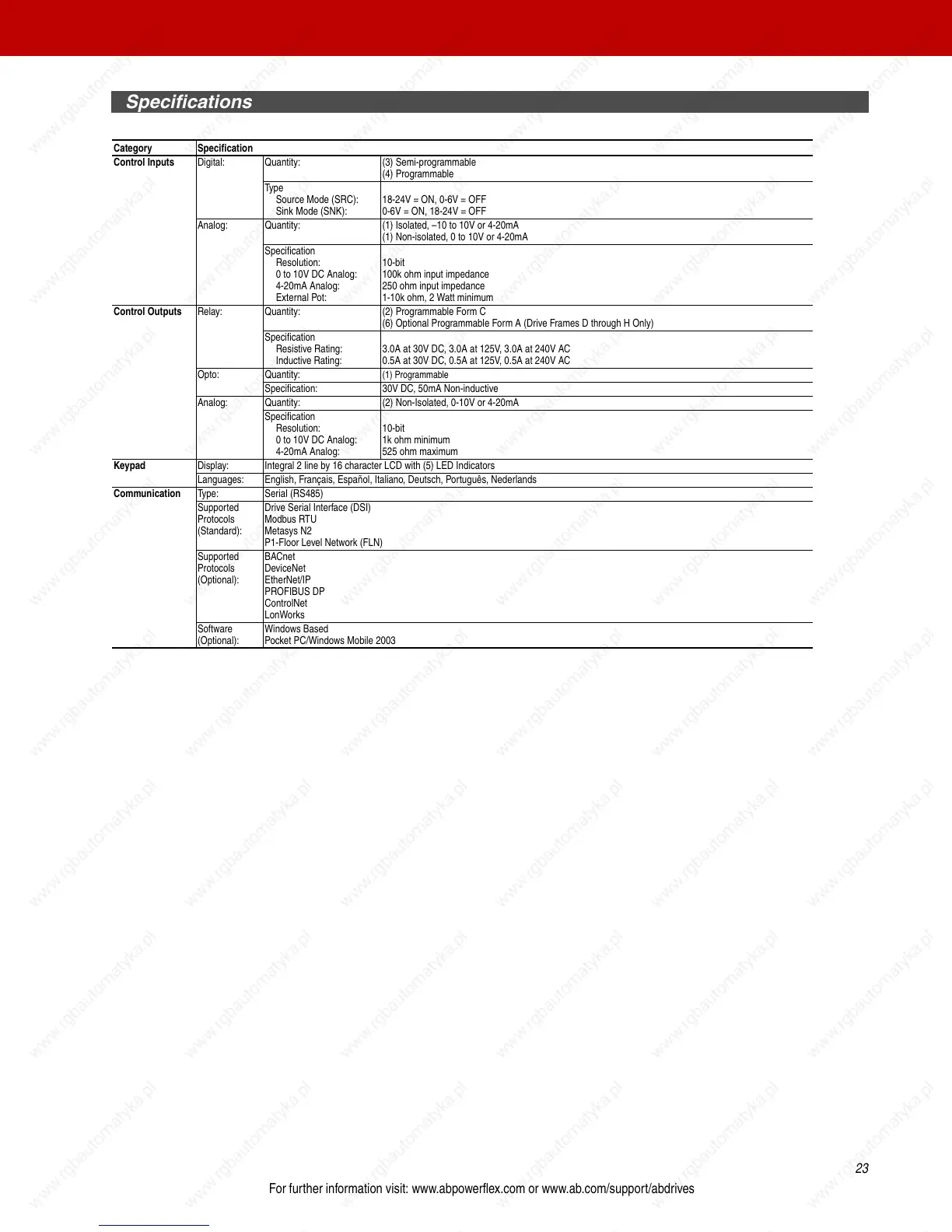

Specifications
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Control Inputs Digital: Quantity: (3) Semi-programmable
(4) Programmable
Typ e
Source Mode (SRC):
Sink Mode (SNK):
18-24V = ON, 0-6V = OFF
0-6V = ON, 18-24V = OFF
Analog: Quantity: (1) Isolated, –10 to 10V or 4-20mA
(1) Non-isolated, 0 to 10V or 4-20mA
Specification
Resolution:
0 to 10V DC Analog:
4-20mA Analog:
External Pot:
10-bit
100k ohm input impedance
250 ohm input impedance
1-10k ohm, 2 Watt minimum
Control Outputs Relay: Quantity: (2) Programmable Form C
(6) Optional Programmable Form A (Drive Frames D through H Only)
Specification
Resistive Rating:
Inductive Rating:
3.0A at 30V DC, 3.0A at 125V, 3.0A at 240V AC
0.5A at 30V DC, 0.5A at 125V, 0.5A at 240V AC
Opto: Quantity:
(1) Programmable
Specification: 30V DC, 50mA Non-inductive
Analog: Quantity: (2) Non-Isolated, 0-10V or 4-20mA
Specification
Resolution:
0 to 10V DC Analog:
4-20mA Analog:
10-bit
1k ohm minimum
525 ohm maximum
Keypad Display: Integral 2 line by 16 character LCD with (5) LED Indicators
Languages: English, Français, Español, Italiano, Deutsch, Português, Nederlands
Communication Type: Serial (RS485)
Supported
Protocols
(Standard):
Drive Serial Interface (DSI)
Modbus RTU
Metasys N2
P1-Floor Level Network (FLN)
Supported
Protocols
(Optional):
BACnet
DeviceNet
EtherNet/IP
PROFIBUS DP
ControlNet
LonWorks
Software
(Optional):
Windows Based
Pocket PC/Windows Mobile 2003
Category Specification
