25

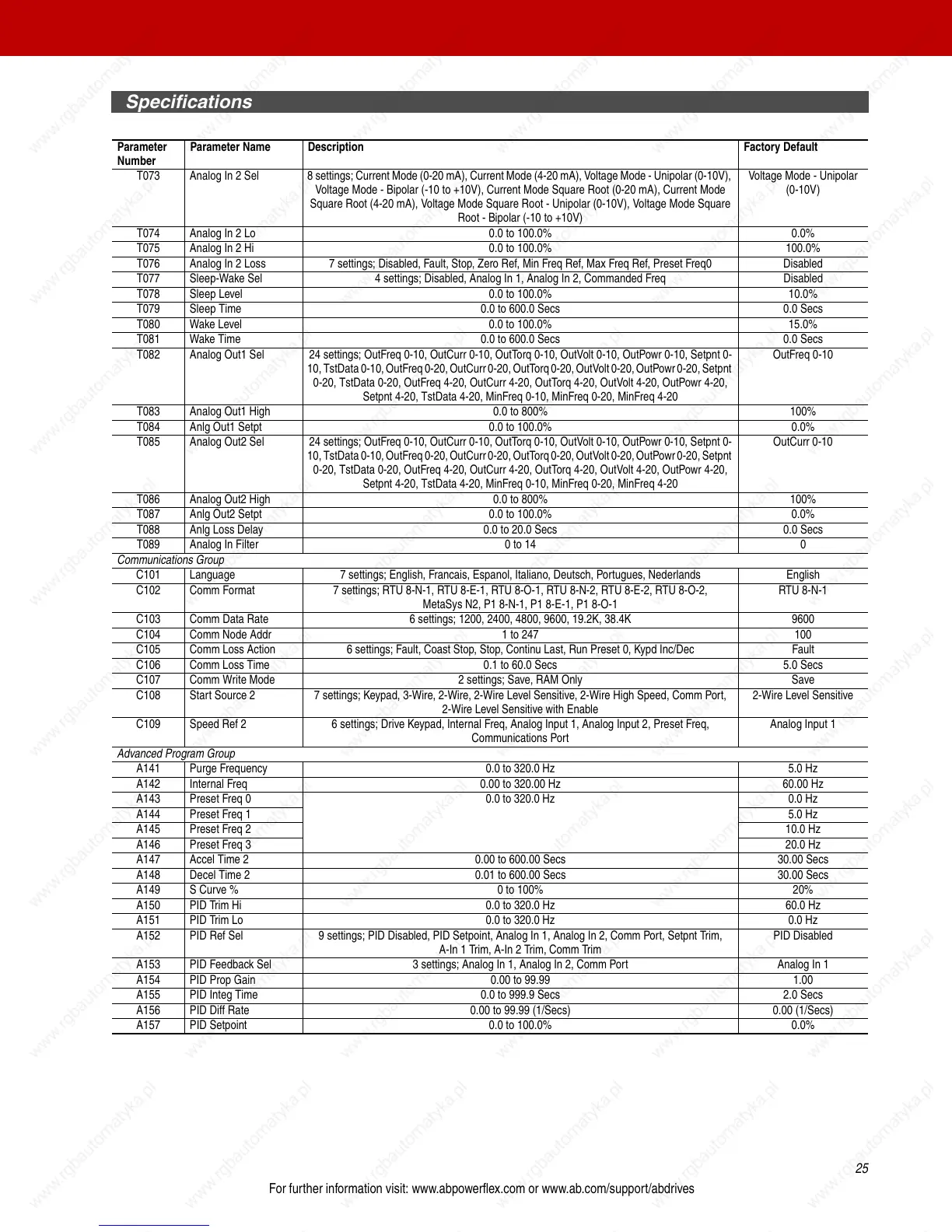

Specifications
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
T073 Analog In 2 Sel 8 settings; Current Mode (0-20 mA), Current Mode (4-20 mA), Voltage Mode - Unipolar (0-10V),
Voltage Mode - Bipolar (-10 to +10V), Current Mode Square Root (0-20 mA), Current Mode
Square Root (4-20 mA), Voltage Mode Square Root - Unipolar (0-10V), Voltage Mode Square
Root - Bipolar (-10 to +10V)
Voltage Mode - Unipolar
(0-10V)
T074 Analog In 2 Lo 0.0 to 100.0% 0.0%
T075 Analog In 2 Hi 0.0 to 100.0% 100.0%
T076 Analog In 2 Loss 7 settings; Disabled, Fault, Stop, Zero Ref, Min Freq Ref, Max Freq Ref, Preset Freq0 Disabled
T077 Sleep-Wake Sel 4 settings; Disabled, Analog In 1, Analog In 2, Commanded Freq Disabled
T078 Sleep Level 0.0 to 100.0% 10.0%
T079 Sleep Time 0.0 to 600.0 Secs 0.0 Secs
T080 Wake Level 0.0 to 100.0% 15.0%
T081 Wake Time 0.0 to 600.0 Secs 0.0 Secs
T082 Analog Out1 Sel 24 settings; OutFreq 0-10, OutCurr 0-10, OutTorq 0-10, OutVolt 0-10, OutPowr 0-10, Setpnt 0-
10, TstData 0-10, OutFreq 0-20, OutCurr 0-20, OutTorq 0-20, OutVolt 0-20, OutPowr 0-20, Setpnt
0-20, TstData 0-20, OutFreq 4-20, OutCurr 4-20, OutTorq 4-20, OutVolt 4-20, OutPowr 4-20,
Setpnt 4-20, TstData 4-20, MinFreq 0-10, MinFreq 0-20, MinFreq 4-20
OutFreq 0-10
T083 Analog Out1 High 0.0 to 800% 100%
T084 Anlg Out1 Setpt 0.0 to 100.0% 0.0%
T085 Analog Out2 Sel 24 settings; OutFreq 0-10, OutCurr 0-10, OutTorq 0-10, OutVolt 0-10, OutPowr 0-10, Setpnt 0-
10, TstData 0-10, OutFreq 0-20, OutCurr 0-20, OutTorq 0-20, OutVolt 0-20, OutPowr 0-20, Setpnt
0-20, TstData 0-20, OutFreq 4-20, OutCurr 4-20, OutTorq 4-20, OutVolt 4-20, OutPowr 4-20,
Setpnt 4-20, TstData 4-20, MinFreq 0-10, MinFreq 0-20, MinFreq 4-20
OutCurr 0-10
T086 Analog Out2 High 0.0 to 800% 100%
T087 Anlg Out2 Setpt 0.0 to 100.0% 0.0%
T088 Anlg Loss Delay 0.0 to 20.0 Secs 0.0 Secs
T089 Analog In Filter 0 to 14 0
Communications Group
C101 Language 7 settings; English, Francais, Espanol, Italiano, Deutsch, Portugues, Nederlands English
C102 Comm Format 7 settings; RTU 8-N-1, RTU 8-E-1, RTU 8-O-1, RTU 8-N-2, RTU 8-E-2, RTU 8-O-2,
MetaSys N2, P1 8-N-1, P1 8-E-1, P1 8-O-1
RTU 8-N-1
C103 Comm Data Rate 6 settings; 1200, 2400, 4800, 9600, 19.2K, 38.4K 9600
C104 Comm Node Addr 1 to 247 100
C105 Comm Loss Action 6 settings; Fault, Coast Stop, Stop, Continu Last, Run Preset 0, Kypd Inc/Dec Fault
C106 Comm Loss Time 0.1 to 60.0 Secs 5.0 Secs
C107 Comm Write Mode 2 settings; Save, RAM Only Save
C108 Start Source 2 7 settings; Keypad, 3-Wire, 2-Wire, 2-Wire Level Sensitive, 2-Wire High Speed, Comm Port,
2-Wire Level Sensitive with Enable
2-Wire Level Sensitive
C109 Speed Ref 2 6 settings; Drive Keypad, Internal Freq, Analog Input 1, Analog Input 2, Preset Freq,
Communications Port
Analog Input 1
Advanced Program Group
A141 Purge Frequency 0.0 to 320.0 Hz 5.0 Hz
A142 Internal Freq 0.00 to 320.00 Hz 60.00 Hz
A143 Preset Freq 0 0.0 to 320.0 Hz 0.0 Hz
A144 Preset Freq 1 5.0 Hz
A145 Preset Freq 2 10.0 Hz
A146 Preset Freq 3 20.0 Hz
A147 Accel Time 2 0.00 to 600.00 Secs 30.00 Secs
A148 Decel Time 2 0.01 to 600.00 Secs 30.00 Secs
A149 S Curve % 0 to 100% 20%
A150 PID Trim Hi 0.0 to 320.0 Hz 60.0 Hz
A151 PID Trim Lo 0.0 to 320.0 Hz 0.0 Hz
A152 PID Ref Sel 9 settings; PID Disabled, PID Setpoint, Analog In 1, Analog In 2, Comm Port, Setpnt Trim,
A-In 1 Trim, A-In 2 Trim, Comm Trim
PID Disabled
A153 PID Feedback Sel 3 settings; Analog In 1, Analog In 2, Comm Port Analog In 1
A154 PID Prop Gain 0.00 to 99.99 1.00
A155 PID Integ Time 0.0 to 999.9 Secs 2.0 Secs
A156 PID Diff Rate 0.00 to 99.99 (1/Secs) 0.00 (1/Secs)
A157 PID Setpoint 0.0 to 100.0% 0.0%
Parameter
Number
Parameter Name Description Factory Default
