26

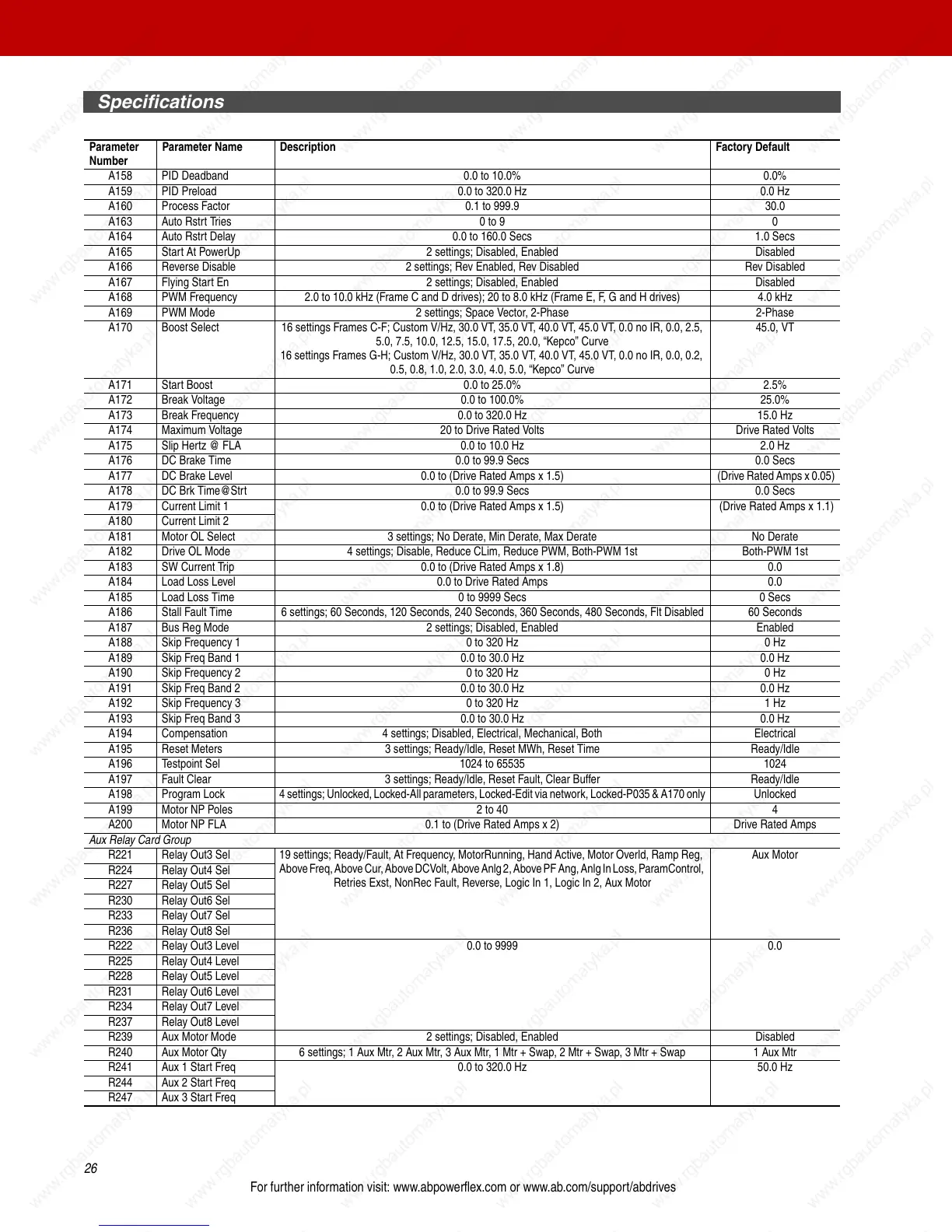

Specifications
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
A158 PID Deadband 0.0 to 10.0% 0.0%
A159 PID Preload 0.0 to 320.0 Hz 0.0 Hz
A160 Process Factor 0.1 to 999.9 30.0
A163 Auto Rstrt Tries 0 to 9 0
A164 Auto Rstrt Delay 0.0 to 160.0 Secs 1.0 Secs
A165 Start At PowerUp 2 settings; Disabled, Enabled Disabled
A166 Reverse Disable 2 settings; Rev Enabled, Rev Disabled Rev Disabled
A167 Flying Start En 2 settings; Disabled, Enabled Disabled
A168 PWM Frequency 2.0 to 10.0 kHz (Frame C and D drives); 20 to 8.0 kHz (Frame E, F, G and H drives) 4.0 kHz
A169 PWM Mode 2 settings; Space Vector, 2-Phase 2-Phase
A170 Boost Select 16 settings Frames C-F; Custom V/Hz, 30.0 VT, 35.0 VT, 40.0 VT, 45.0 VT, 0.0 no IR, 0.0, 2.5,
5.0, 7.5, 10.0, 12.5, 15.0, 17.5, 20.0, “Kepco” Curve
16 settings Frames G-H; Custom V/Hz, 30.0 VT, 35.0 VT, 40.0 VT, 45.0 VT, 0.0 no IR, 0.0, 0.2,
0.5, 0.8, 1.0, 2.0, 3.0, 4.0, 5.0, “Kepco” Curve
45.0, VT
A171 Start Boost 0.0 to 25.0% 2.5%
A172 Break Voltage 0.0 to 100.0% 25.0%
A173 Break Frequency 0.0 to 320.0 Hz 15.0 Hz
A174 Maximum Voltage 20 to Drive Rated Volts Drive Rated Volts
A175 Slip Hertz @ FLA 0.0 to 10.0 Hz 2.0 Hz
A176 DC Brake Time 0.0 to 99.9 Secs 0.0 Secs
A177 DC Brake Level 0.0 to (Drive Rated Amps x 1.5) (Drive Rated Amps x 0.05)
A178 DC Brk Time@Strt 0.0 to 99.9 Secs 0.0 Secs
A179 Current Limit 1 0.0 to (Drive Rated Amps x 1.5) (Drive Rated Amps x 1.1)
A180 Current Limit 2
A181 Motor OL Select 3 settings; No Derate, Min Derate, Max Derate No Derate
A182 Drive OL Mode 4 settings; Disable, Reduce CLim, Reduce PWM, Both-PWM 1st Both-PWM 1st
A183 SW Current Trip 0.0 to (Drive Rated Amps x 1.8) 0.0
A184 Load Loss Level 0.0 to Drive Rated Amps 0.0
A185 Load Loss Time 0 to 9999 Secs 0 Secs
A186 Stall Fault Time 6 settings; 60 Seconds, 120 Seconds, 240 Seconds, 360 Seconds, 480 Seconds, Flt Disabled 60 Seconds
A187 Bus Reg Mode 2 settings; Disabled, Enabled Enabled
A188 Skip Frequency 1 0 to 320 Hz 0 Hz
A189 Skip Freq Band 1 0.0 to 30.0 Hz 0.0 Hz
A190 Skip Frequency 2 0 to 320 Hz 0 Hz
A191 Skip Freq Band 2 0.0 to 30.0 Hz 0.0 Hz
A192 Skip Frequency 3 0 to 320 Hz 1 Hz
A193 Skip Freq Band 3 0.0 to 30.0 Hz 0.0 Hz
A194 Compensation 4 settings; Disabled, Electrical, Mechanical, Both Electrical
A195 Reset Meters 3 settings; Ready/Idle, Reset MWh, Reset Time Ready/Idle
A196 Testpoint Sel 1024 to 65535 1024
A197 Fault Clear 3 settings; Ready/Idle, Reset Fault, Clear Buffer Ready/Idle
A198 Program Lock 4 settings; Unlocked, Locked-All parameters, Locked-Edit via network, Locked-P035 & A170 only Unlocked
A199 Motor NP Poles 2 to 40 4
A200 Motor NP FLA 0.1 to (Drive Rated Amps x 2) Drive Rated Amps
Aux Relay Card Group
R221 Relay Out3 Sel 19 settings; Ready/Fault, At Frequency, MotorRunning, Hand Active, Motor Overld, Ramp Reg,
Above Freq, Above Cur, Above DCVolt, Above Anlg 2, Above PF Ang, Anlg In Loss, ParamControl,
Retries Exst, NonRec Fault, Reverse, Logic In 1, Logic In 2, Aux Motor
Aux Motor
R224 Relay Out4 Sel
R227 Relay Out5 Sel
R230 Relay Out6 Sel
R233 Relay Out7 Sel
R236 Relay Out8 Sel
R222 Relay Out3 Level 0.0 to 9999 0.0
R225 Relay Out4 Level
R228 Relay Out5 Level
R231 Relay Out6 Level
R234 Relay Out7 Level
R237 Relay Out8 Level
R239 Aux Motor Mode 2 settings; Disabled, Enabled Disabled
R240 Aux Motor Qty 6 settings; 1 Aux Mtr, 2 Aux Mtr, 3 Aux Mtr, 1 Mtr + Swap, 2 Mtr + Swap, 3 Mtr + Swap 1 Aux Mtr
R241 Aux 1 Start Freq 0.0 to 320.0 Hz 50.0 Hz
R244 Aux 2 Start Freq
R247 Aux 3 Start Freq
Parameter
Number
Parameter Name Description Factory Default
