Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 71

Configure Integrated Motion Control Using Kinetix 5700 Drives Chapter 4

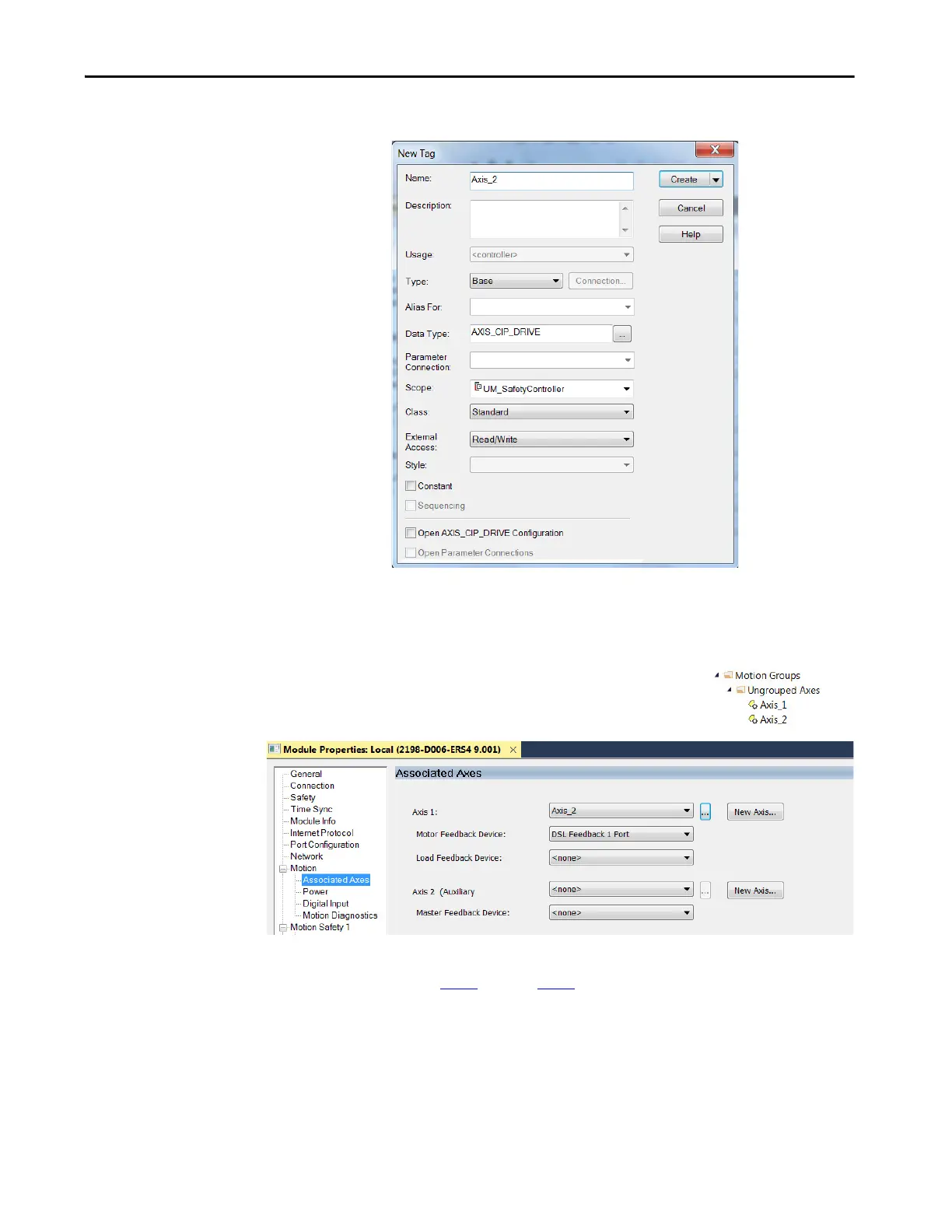

The New Tag dialog box appears.

6. Type the a xis Name.

AXIS_CIP_DRIVE is the default Data Type.

7. Click Create.

The axis (Axis_1 in this example) appears in the

Controller Organizer under Motion Groups>

Ungrouped Axes and is assigned as Axis 1.

8. Click Apply.

9. Repeat step 1

through step 6 for each 2198-xxxx-ERSx servo drive.
