Configure Integrated Motion Using a PowerFlex 755 Drive Chapter 5

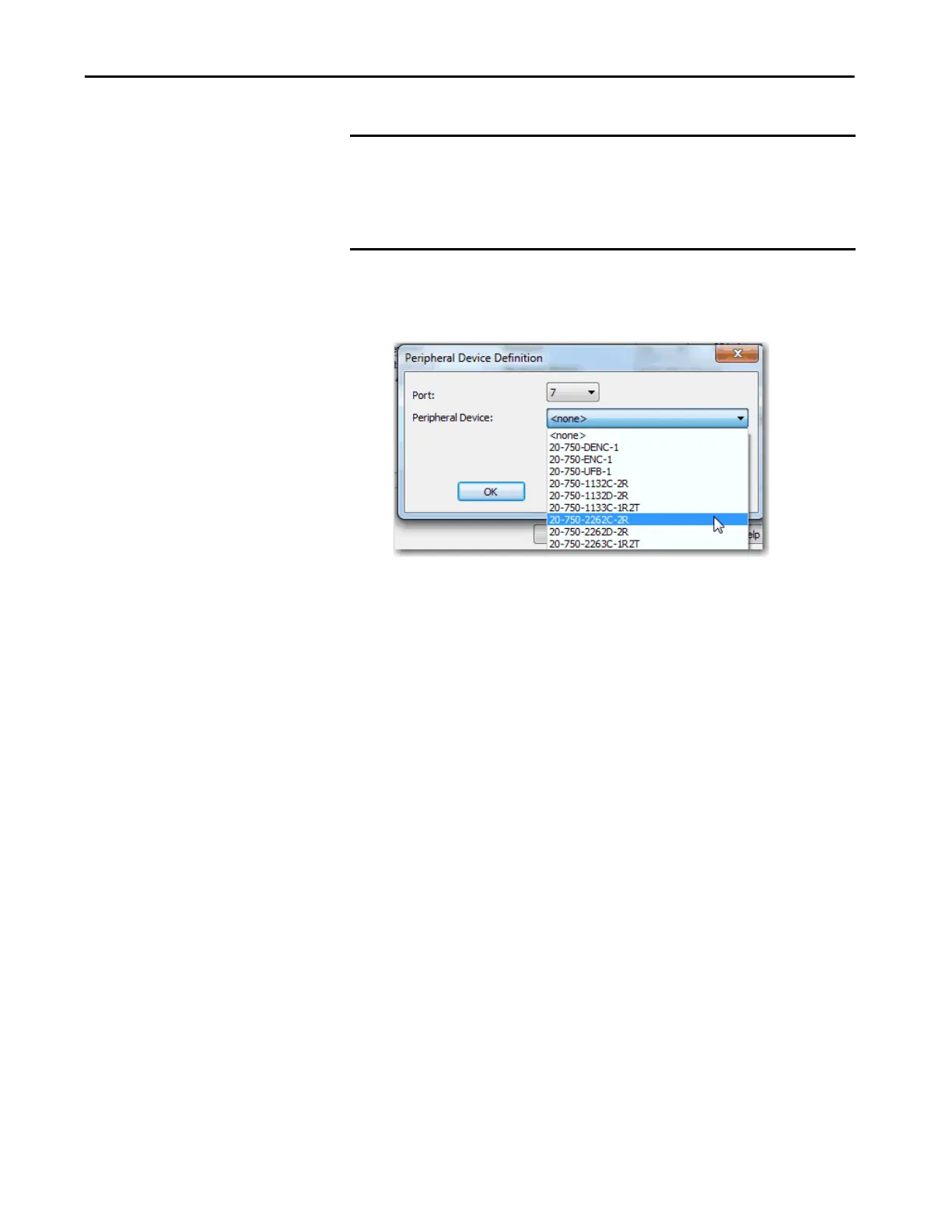

3. From the Peripheral Device pull-down menu, choose the appropriate
catalog number.
This example uses 20-750-2262C-2R.
IMPORTANT For the I/O card Peripheral Device selection: the 20-750-11xx card supports
the configuration of four digital inputs, while the 20-750-22xx cards support
the configuration of eight digital inputs. Once you select the Peripheral
Device, the Digital Inputs tab allows for configuration of the specified digital
inputs.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
