Allen-Bradley PowerFlex 755 User Manual

308 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

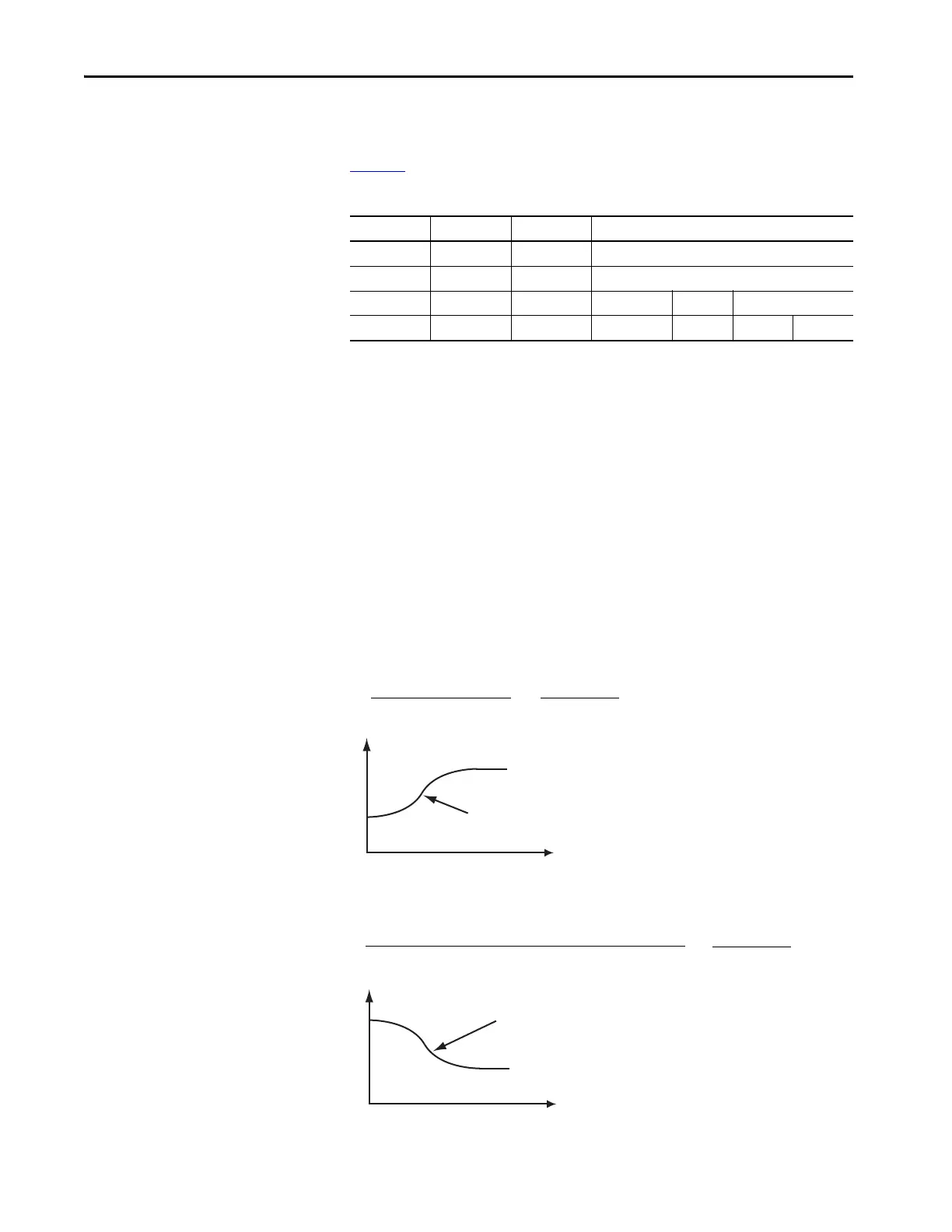

Appendix B Out of Box Configuration for PowerFlex Drives
Velocity Profile Effects
Table 68 summarizes the differences between profiles.
Jerk Rate Calculation
If the instruction uses or changes an S-curve profile, the controller calculates
acceleration, deceleration, and jerk when you start the instruction.
The system has a Jerk priority planner. In other words, Jerk always takes
priority over acceleration and velocity. Therefore, you always get the
programmed Jerk. If a move is velocity-limited, the move does not reach the
programmed acceleration and/or velocity.
Jerk Parameters for MAJ programmed in units of % time are converted to
engineering units as follows:
If Start Speed < MAJ Programmed Speed
If Start Velocity > MAJ Programmed Speed
Table 68 - Profile Differences
Profile ACC/DEC Motor Priority of Control
Type Time Stres s Highest to Lowest
Trapezoidal Fastest Worst Acc/Dec Velocity Position
S-curve 2X Slower Best Jerk Acc/Dec Velocity Position
Programmed Accel Rate
2
Time
Velocity
Accel Jerk
Programmed Speed
Programmed Speed
*
Accel Jerk (Units/Sec
3
) =
200
- 1
% of Time
)(
Time
Velocity
Decel Jerk
Programmed Speed
Programmed Decel Rate
2
Max (Programmed Speed, [Start Speed - Programmed Speed])
Decel Jerk (Units/Sec
3
) =
*
200
- 1
% of Time
)(

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
