Allen-Bradley PowerFlex 755 User Manual

104 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019
Chapter 5 Configure Integrated Motion Using a PowerFlex 755 Drive
4. Click OK.
The device is added. Notice that the feedback device appears.
Assign a Power Structure
When you select a drive catalog number, you are specifying only a class of
drives. You must assign the appropriate power structure that you have installed.
You can locate the power-structure reference numbers in these ways:
• On the actual product, usually on the right side of the drive
• In the device documentation
• On a purchase order
Follow these instructions to complete the drive configuration.

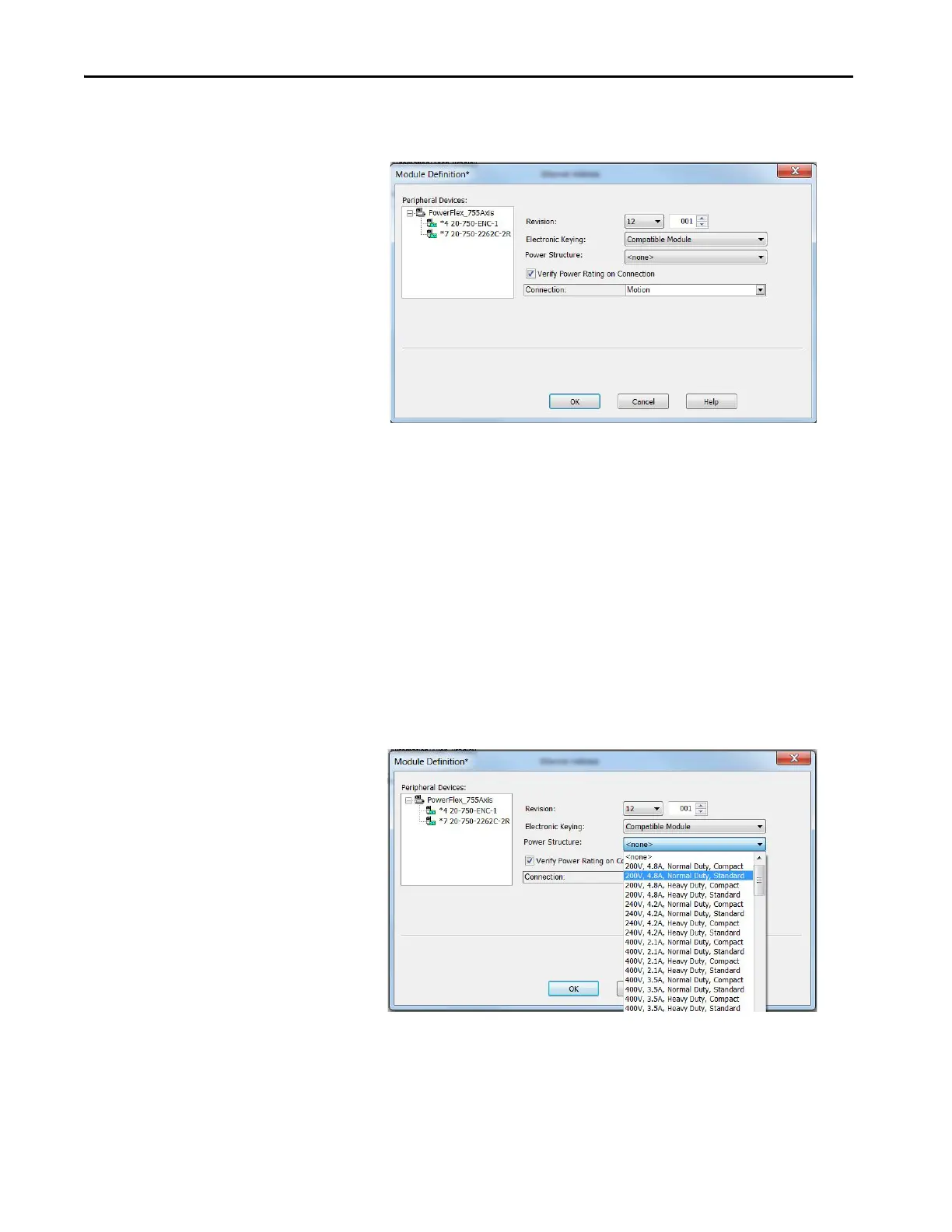

1. From the Power Structure pull-down menu, choose the appropriate
power structure.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
