Configure Digital Inputs
Use the Digital Input tab to enter digital input values for the drive module.
These offline displays are the default values for the Kinetix 6500 and
PowerFlex® 755 Ethernet drives. The appearance of the Digital Input tabs of
the PowerFlex 755 drives can vary dependent upon the peripheral device
configuration. The Kinetix 350 drive does not have a Digital Input tab.

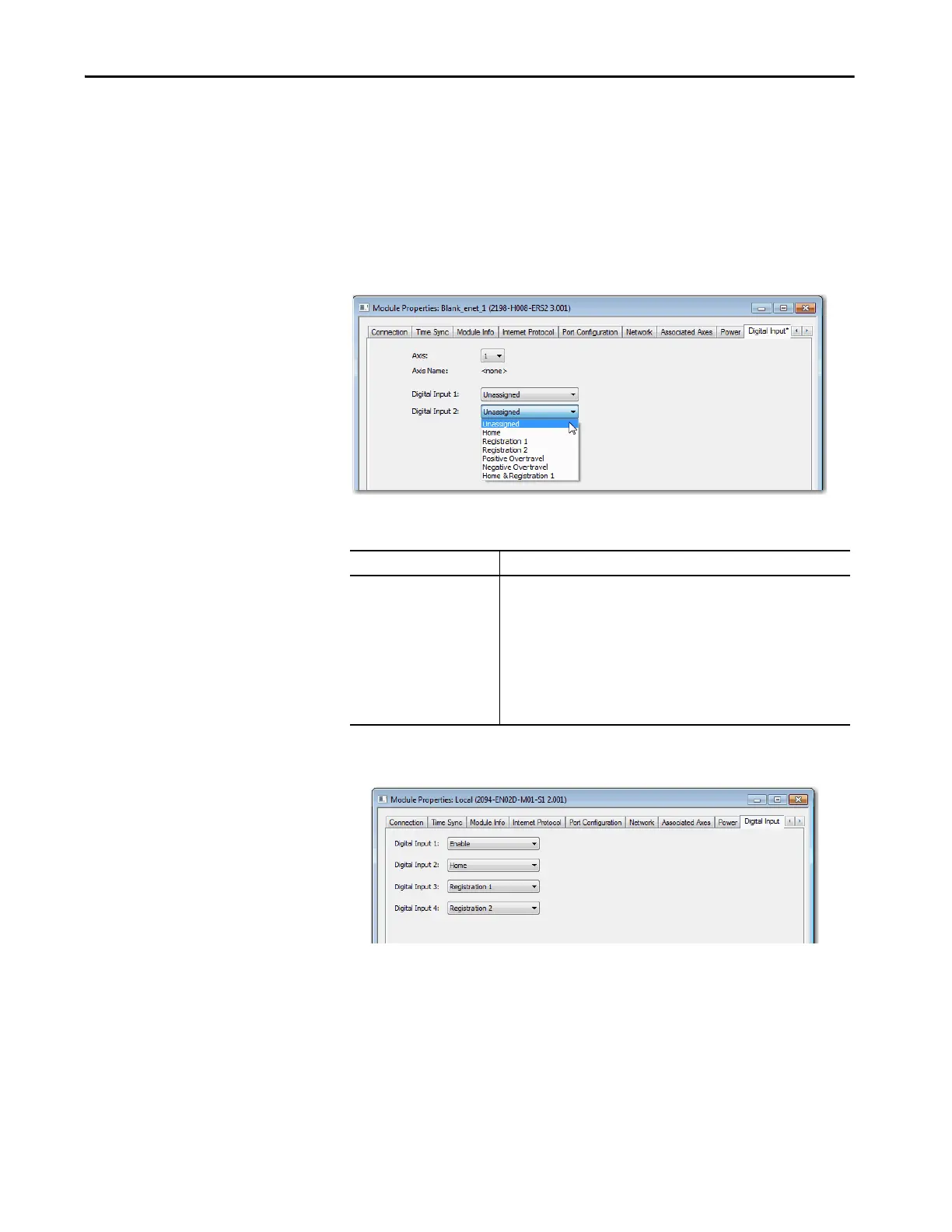

Figure 3 - Digital Input Tab for the Kinetix 5500 Drive
Figure 4 - Digital Input Tab for the Kinetix 6500 Drive
Table 7 - Module Properties: Kinetix 5500 Digital Input Tab Descriptions
Parameter Description
Digital Input 1
Digital Input 2
Choose one of these values for Digital Input 1 and 2:
• Unassigned
•Enable
•Home
• Registration 1
• Registration 2
• Positive Overtravel
• Negative Overtravel
• Home and Registration 1

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
