Allen-Bradley PowerFlex 755 User Manual

Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 139
Configure Integrated Motion Using a PowerFlex 527 Drive Chapter 6

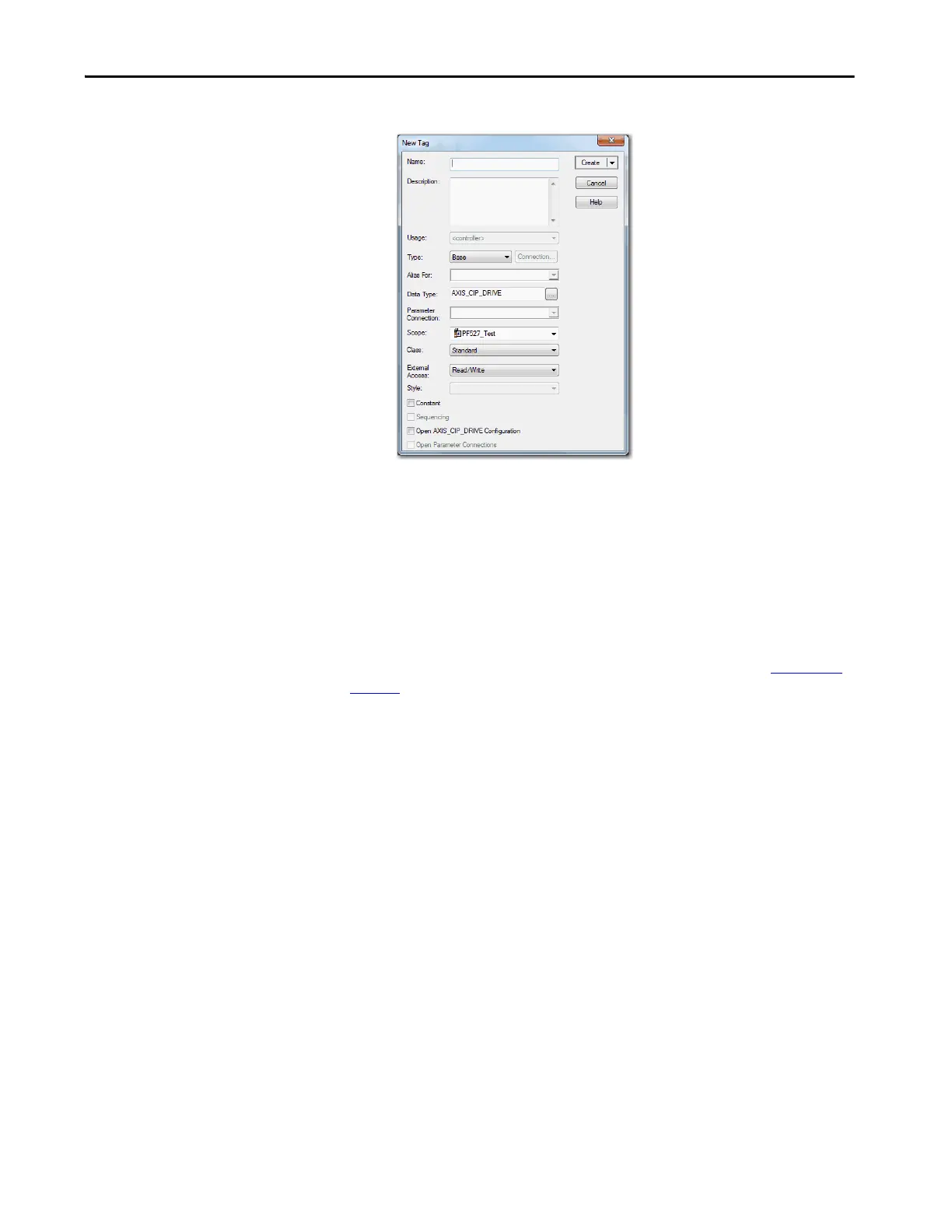

The New Tag dialog box appears.
4. Type the name.
5. Type a Description, if desired.
The fields in the next steps are automatically entered for the
AXIS_CIP_DRIVE data type.
6. Click OK.
Create the Motion Group
To determine how many axes your controller system supports, see Table 3 on
page 12.
All axes must be added to the Motion Group in your project. If you do not
group the axes, they remain ungrouped and unavailable for use.
You must create a Motion Group for an axis to be configured properly.
Follow these steps to configure the motion group.
1. In the Controller Organizer, right-click Motion Groups and choose
New Motion Group.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
