Chapter 13 Manual Tune

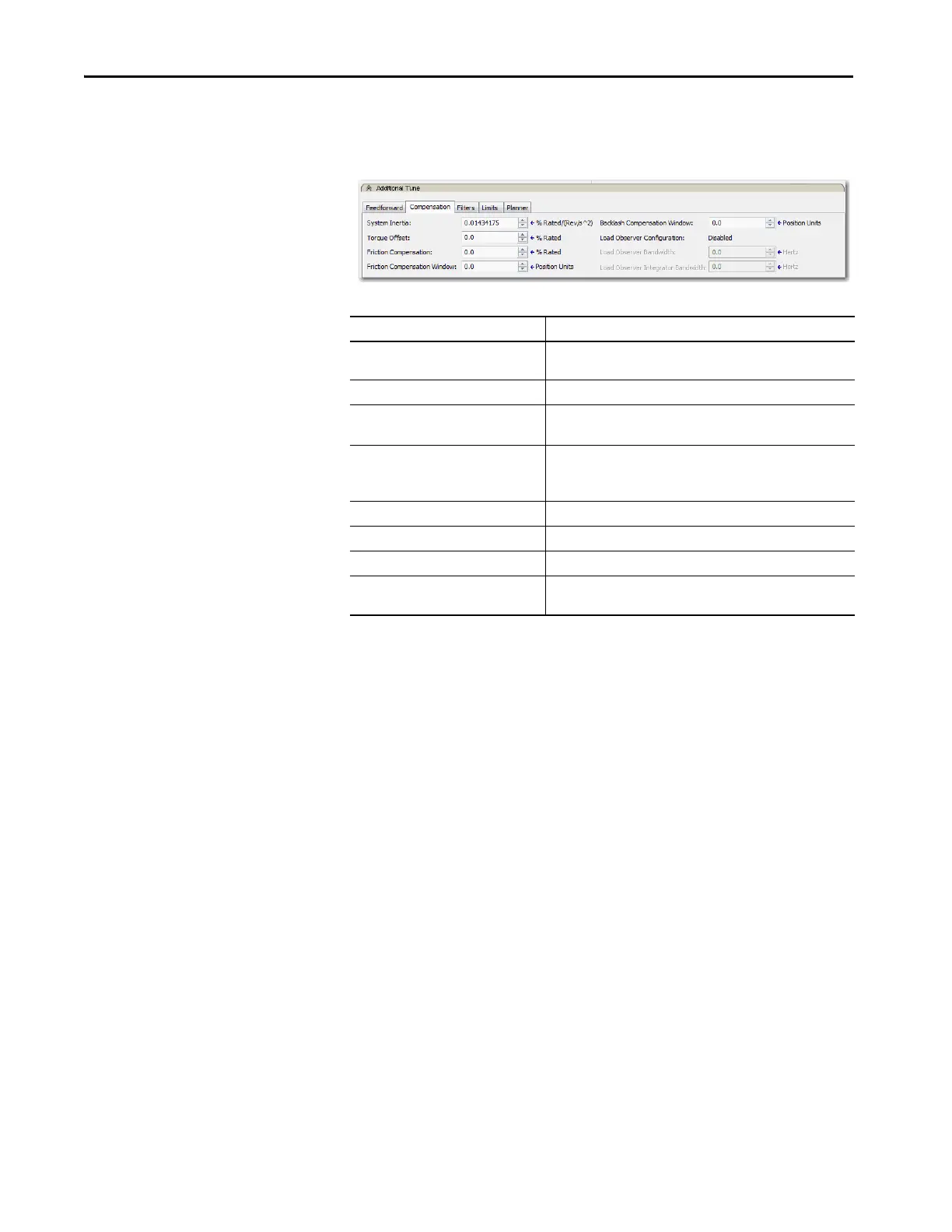

Compensation Parameters
The Compensation tab lets you input scaling gain and friction offset values.
Attribute
(1)
(1) The attributes that you can edit depend on your drive configuration.
Description
System Inertia Torque or force scaling gain value that converts commanded
acceleration into equivalent rated torque/force.
Torque Offset Provides a torque bias when performing closed-loop control.
Friction Value that is added to the current/torque command to offset the
effects of coulomb friction.
Friction Compensation Value that is added to the current/torque command to offset the
effects of friction.
The Kinetix® 350 drive does not support this parameter.
Backlash Compensation Defines a window around the command position.
Load Observer Configuration Configures the operation of the Load Observer.
Load Observer Bandwidth Determines the proportional gain, Kop, of the load observer.
Load Observer Integral Bandwidth Determines the load observer integral gain, Koi, that together with
the Kop, multiplies the integrated error signal within the observer.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
