Allen-Bradley PowerFlex 755 User Manual

210 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019
Chapter 10 Axis Configuration Examples for the PowerFlex 527 Drive
Example 1: Frequency
Control with No Feedback
The PowerFlex 527 drives support basic Volts/Hertz (V/Hz), Fan/Pump
Volts/ Hertz, Sensorless Vector Control (SVC), and Sensorless Vector Control
(SVC) Economy frequency control methods.
Follow these steps to configure the induction motor axis properties.
1. In the Controller Organizer, right-click an axis and choose Properties.
2. Select the General category.
The General and Associated Module dialog box appears.

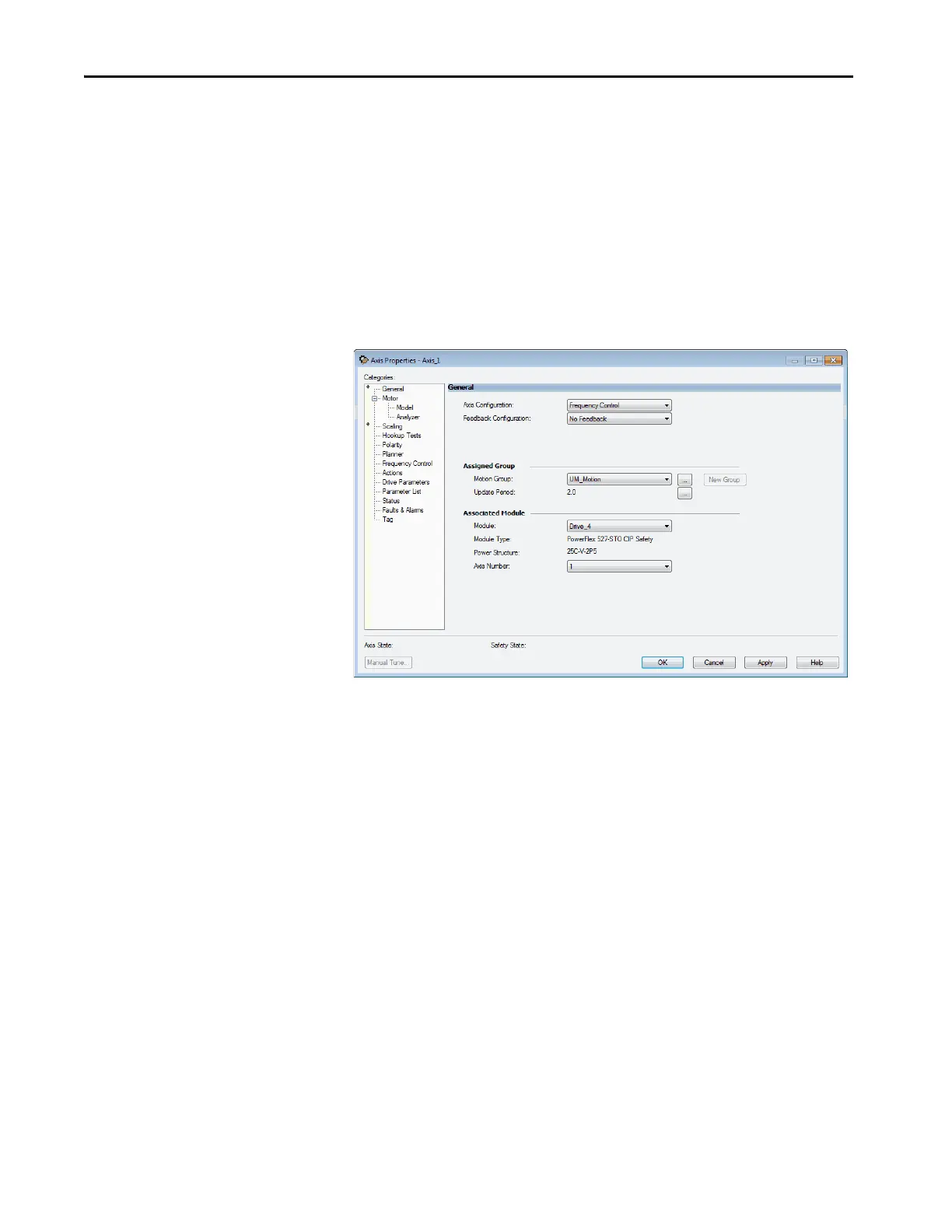

Figure 87 - Example 1: Frequency Control with No Feedback, General Dialog Box
3. From the Axis Configuration pull-down menu, choose Frequency
Control.
4. From the Module pull-down menu, your PowerFlex 527 drive.
The Module Type and Power Structure fields populate with the chosen
drive catalog number.
5. Click Apply.
